5997 Series Raised Rib Modular Belt
57.15 mm pitch 5997 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Search products
Popular
Plastic modular conveyor belts for straight runs - flat top, flush grid, perforated, raised rib and nub top surfaces in pitches from 12.7 mm to 57.15 mm.
57.15 mm pitch 5997 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
27.2 mm pitch 900 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
50.8 mm pitch 956 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
50.8 mm pitch battery production mesh belt from Veybelt - food-grade material options, custom widths, fast quotation.
50.8 mm pitch opb flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

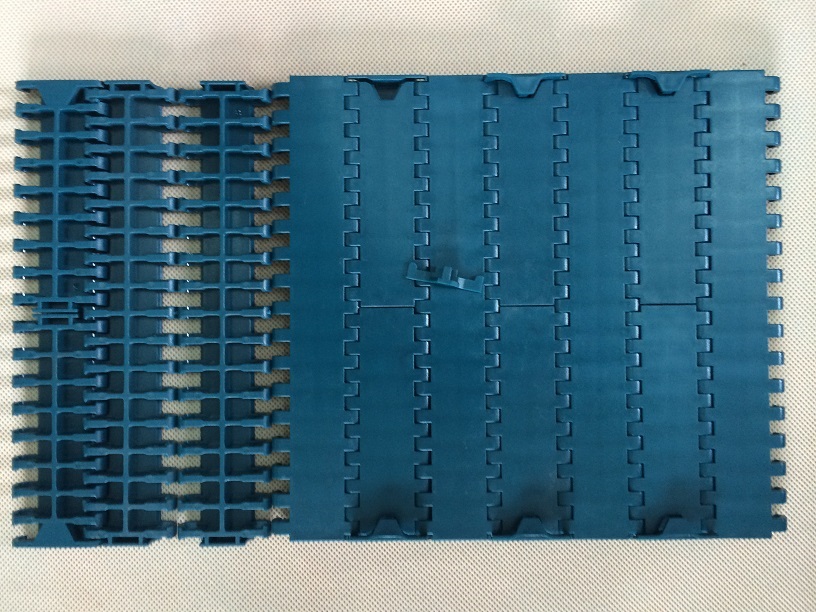

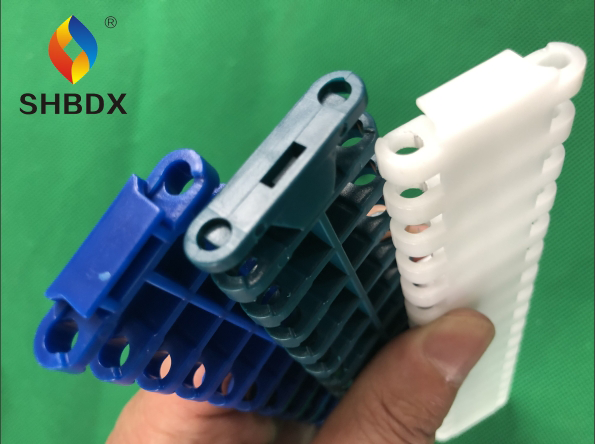

25.4 mm pitch 1000 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

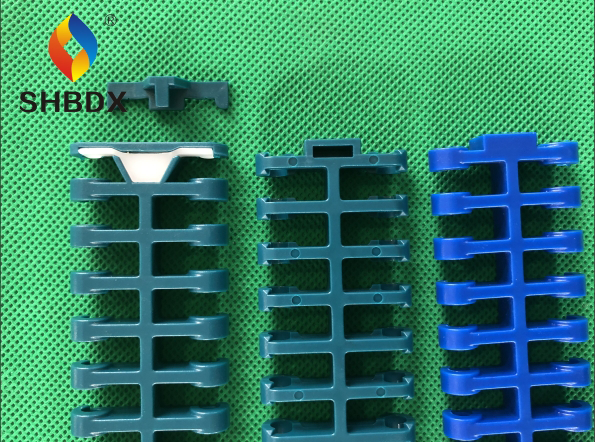

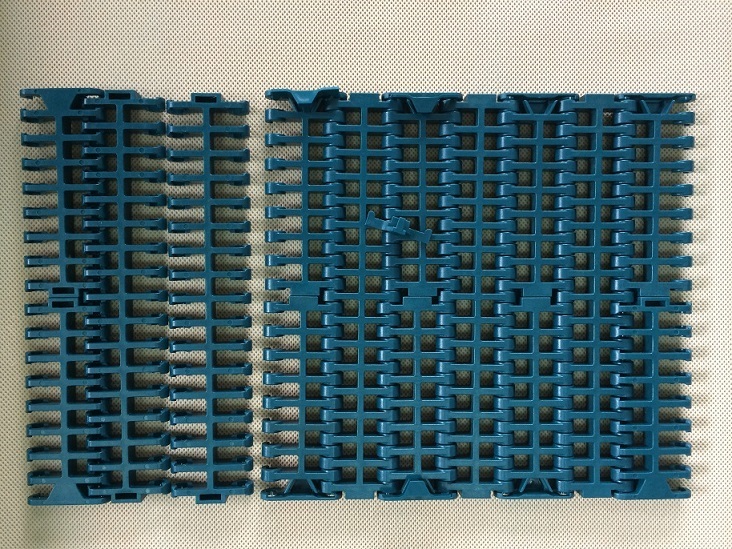

25.4 mm pitch 1000 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

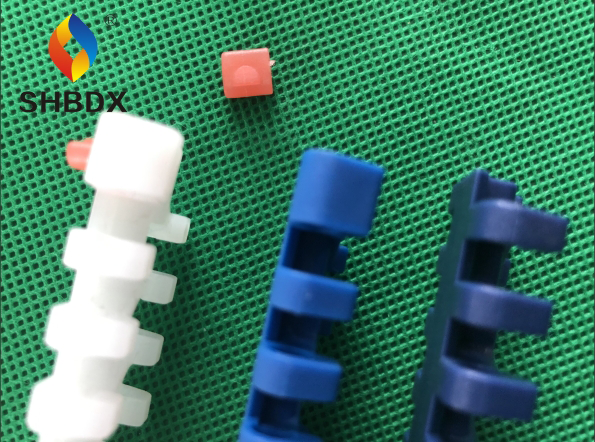

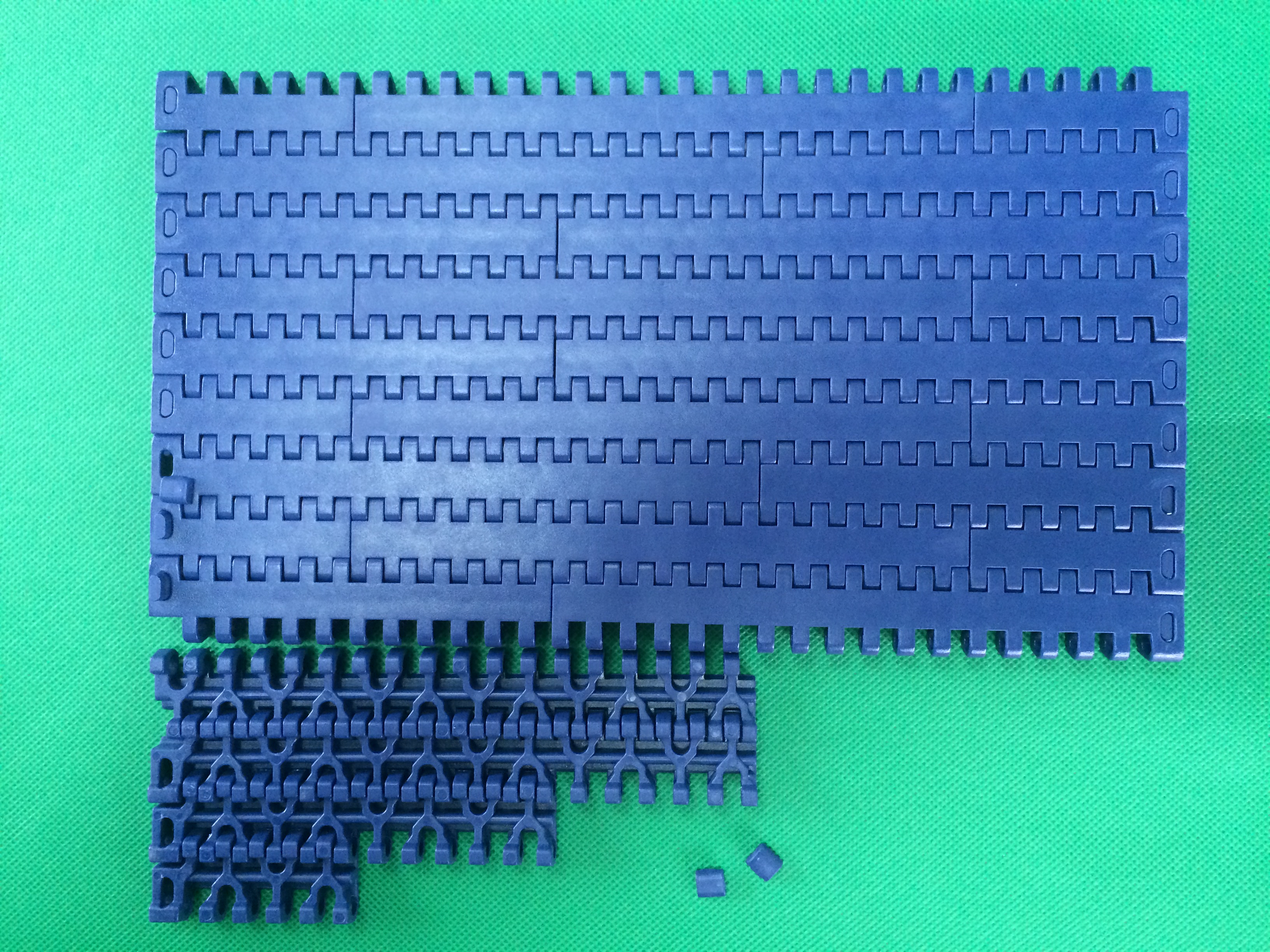

15.24 mm pitch 1100 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

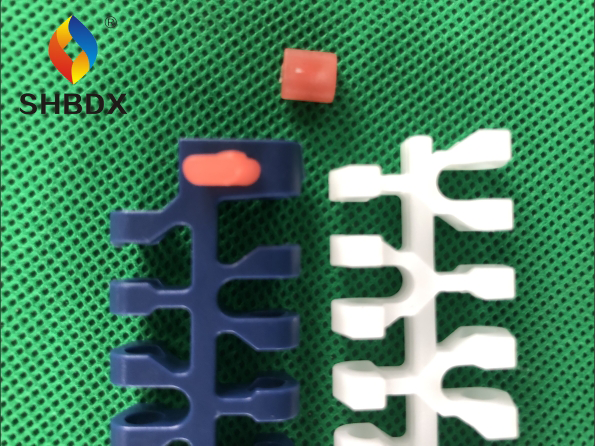

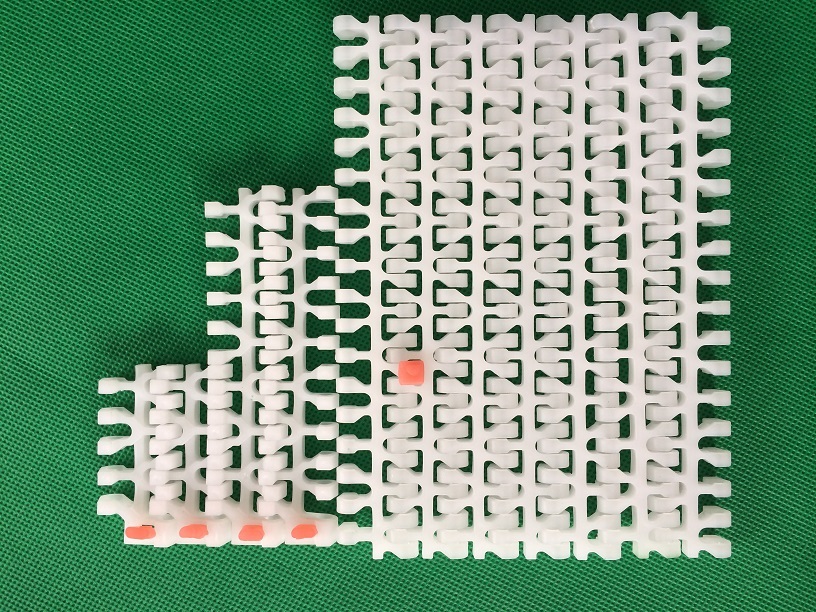

15.24 mm pitch 1100 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

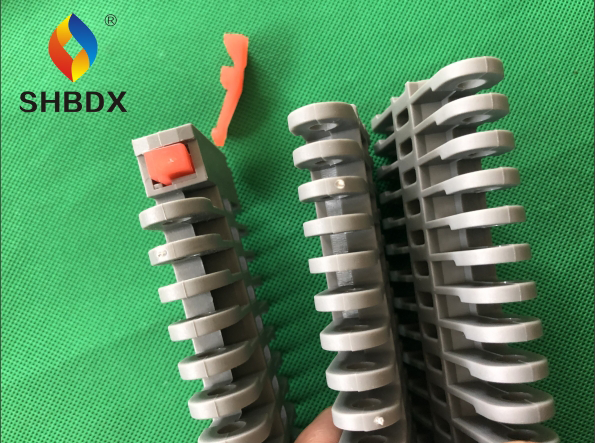

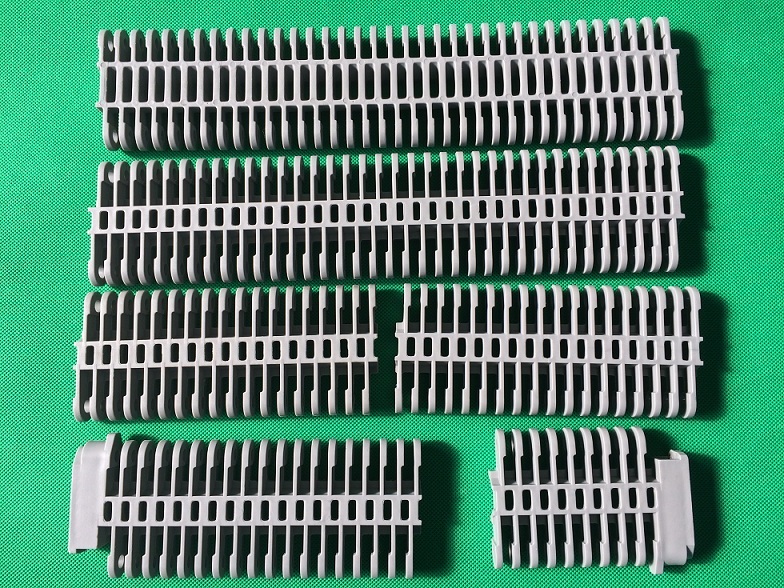

50.8 mm pitch 400 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

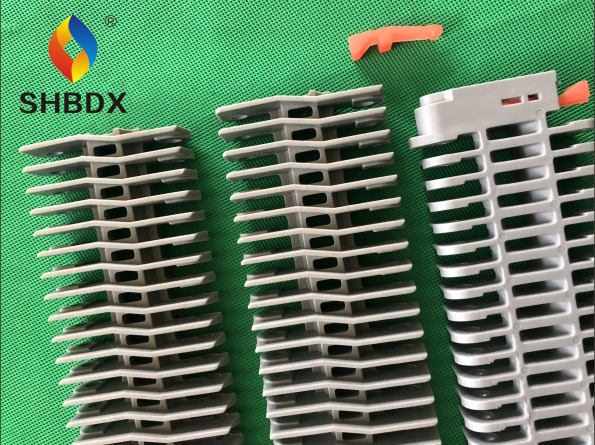

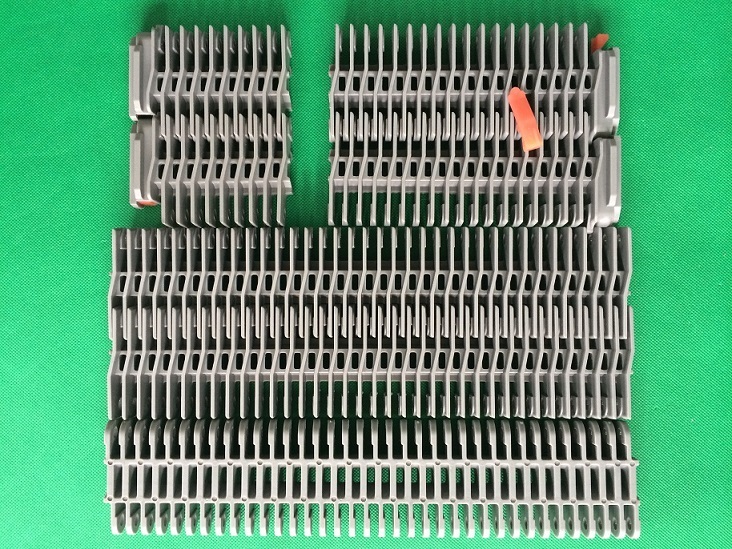

50.8 mm pitch 400 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

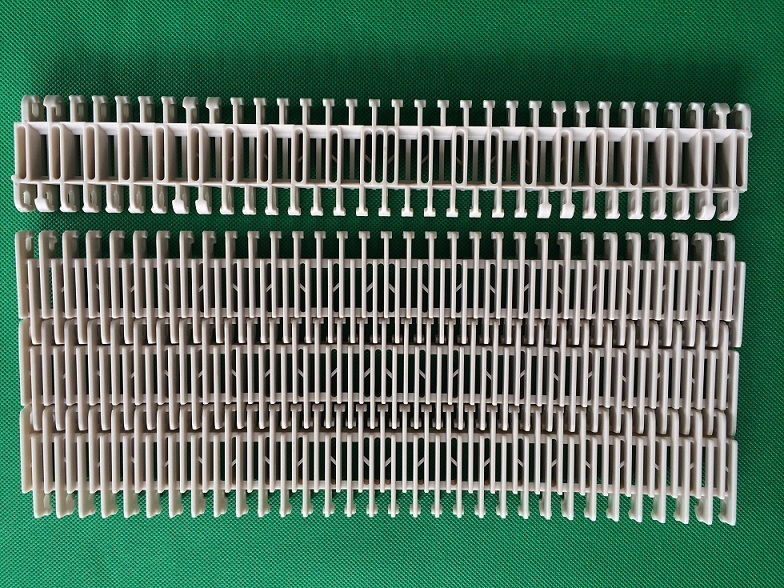

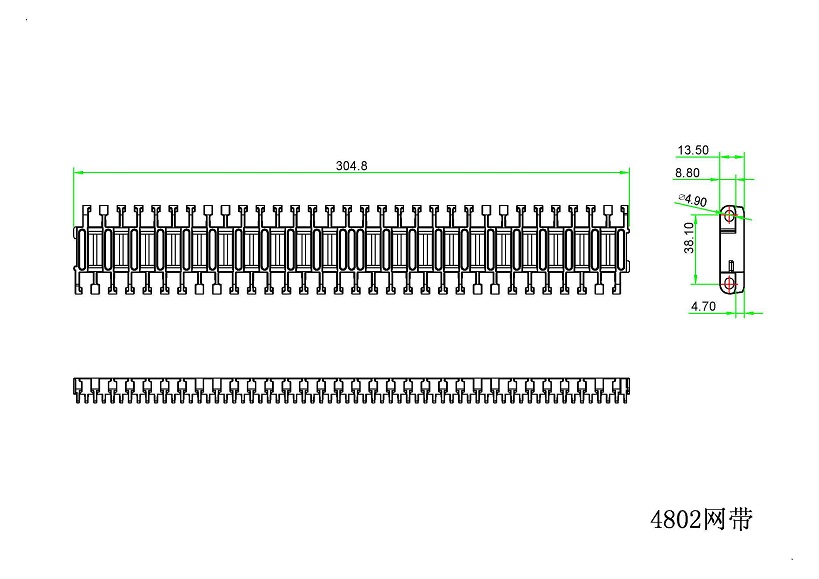

38.1 mm pitch 4802 series raised rib belt from Veybelt - food-grade material options, custom widths, fast quotation.

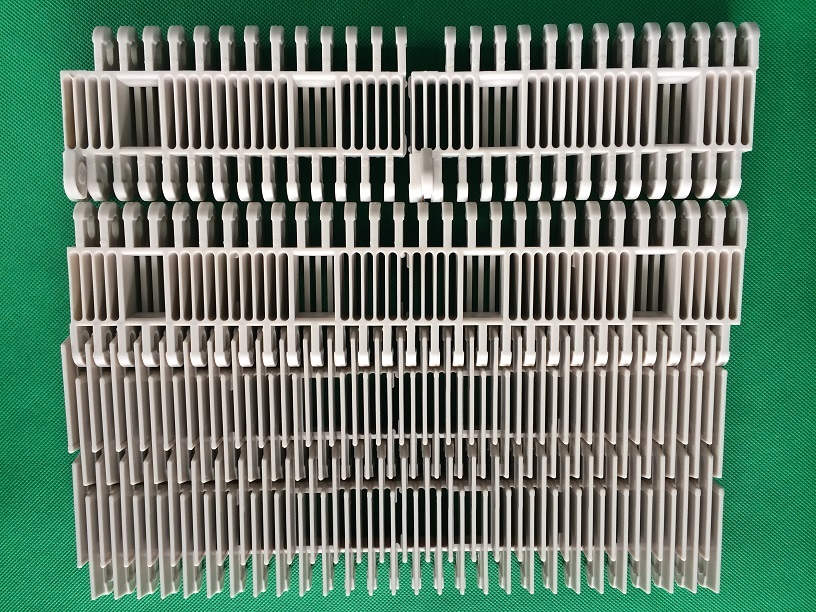

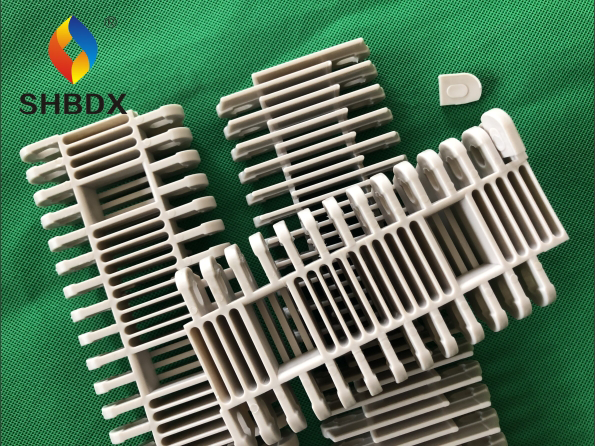

57.15 mm pitch 4809 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

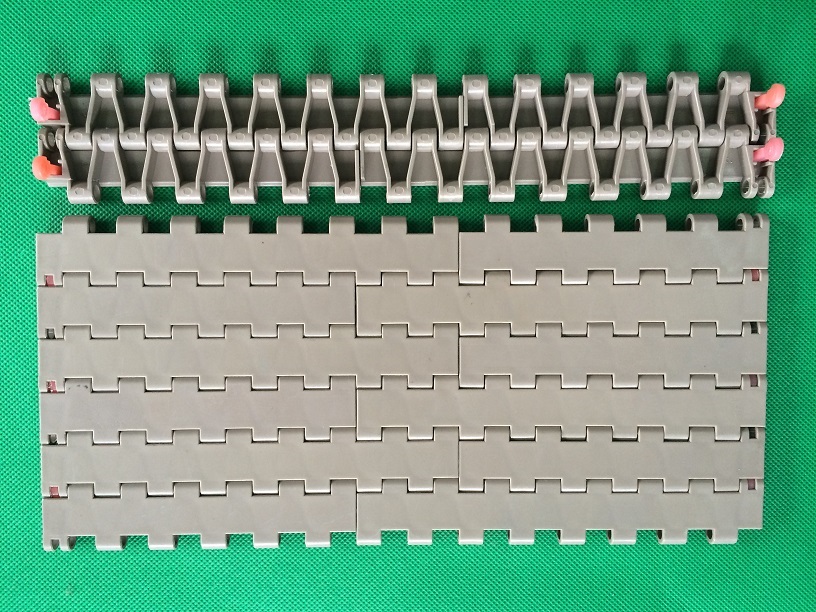

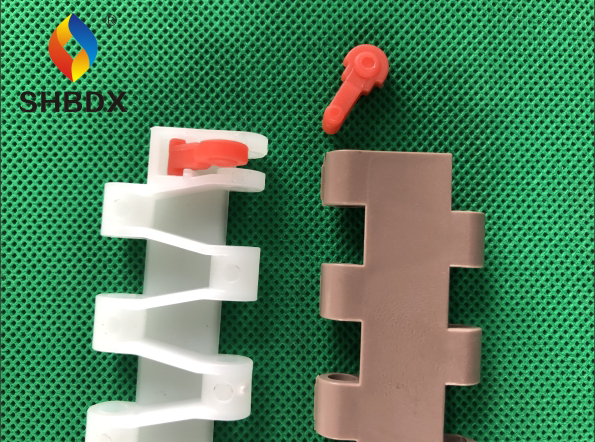

19.05 mm pitch 5935 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

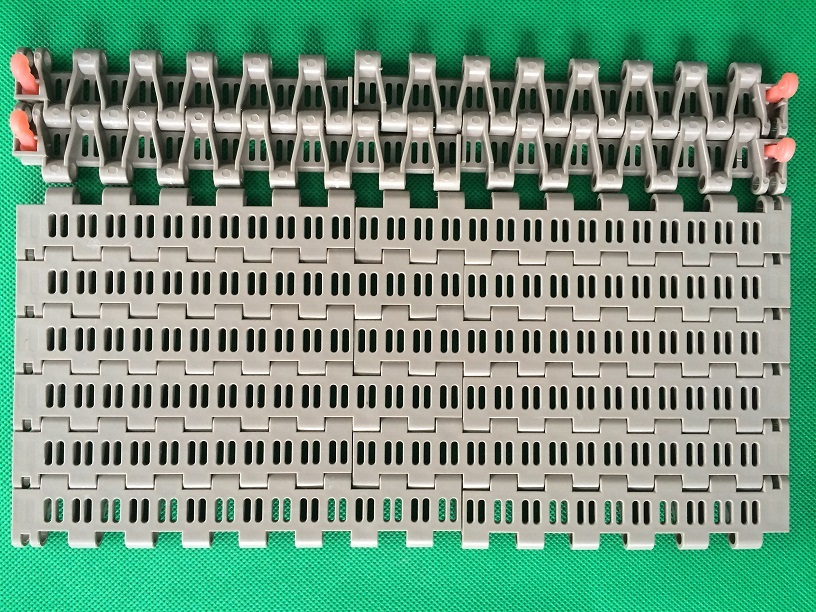

19.05 mm pitch 5935 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
19.05 mm pitch 5935 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

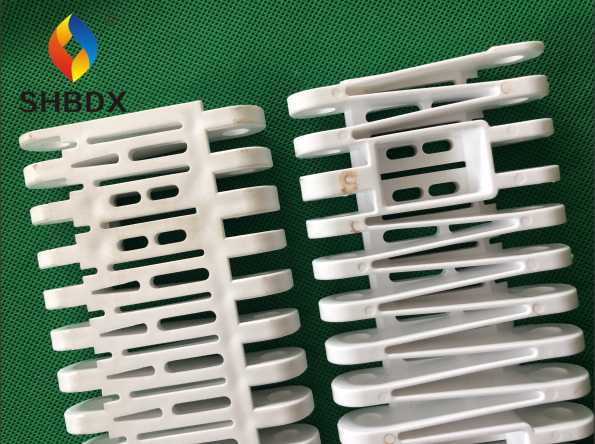

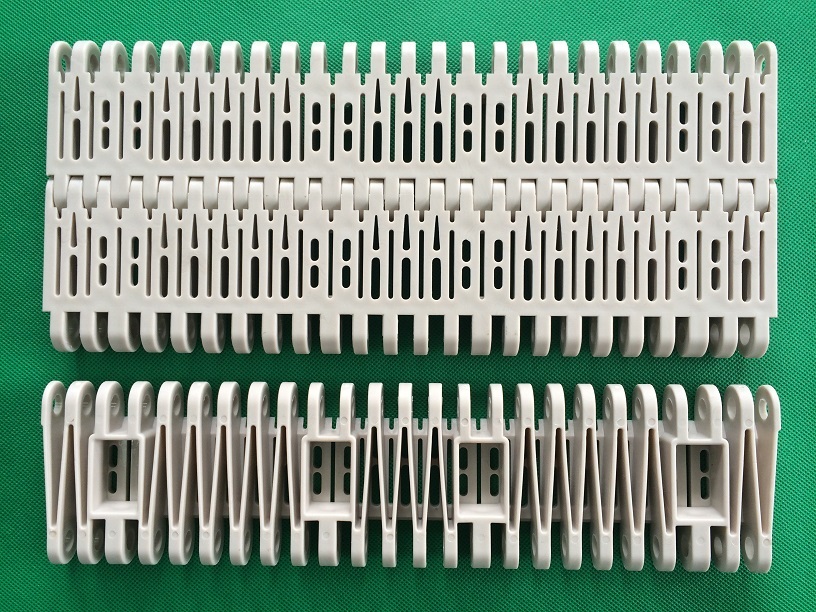

57.15 mm pitch 5997 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

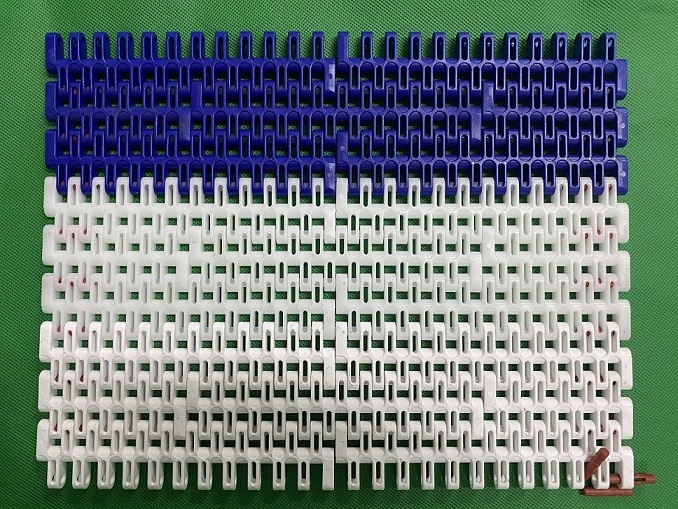

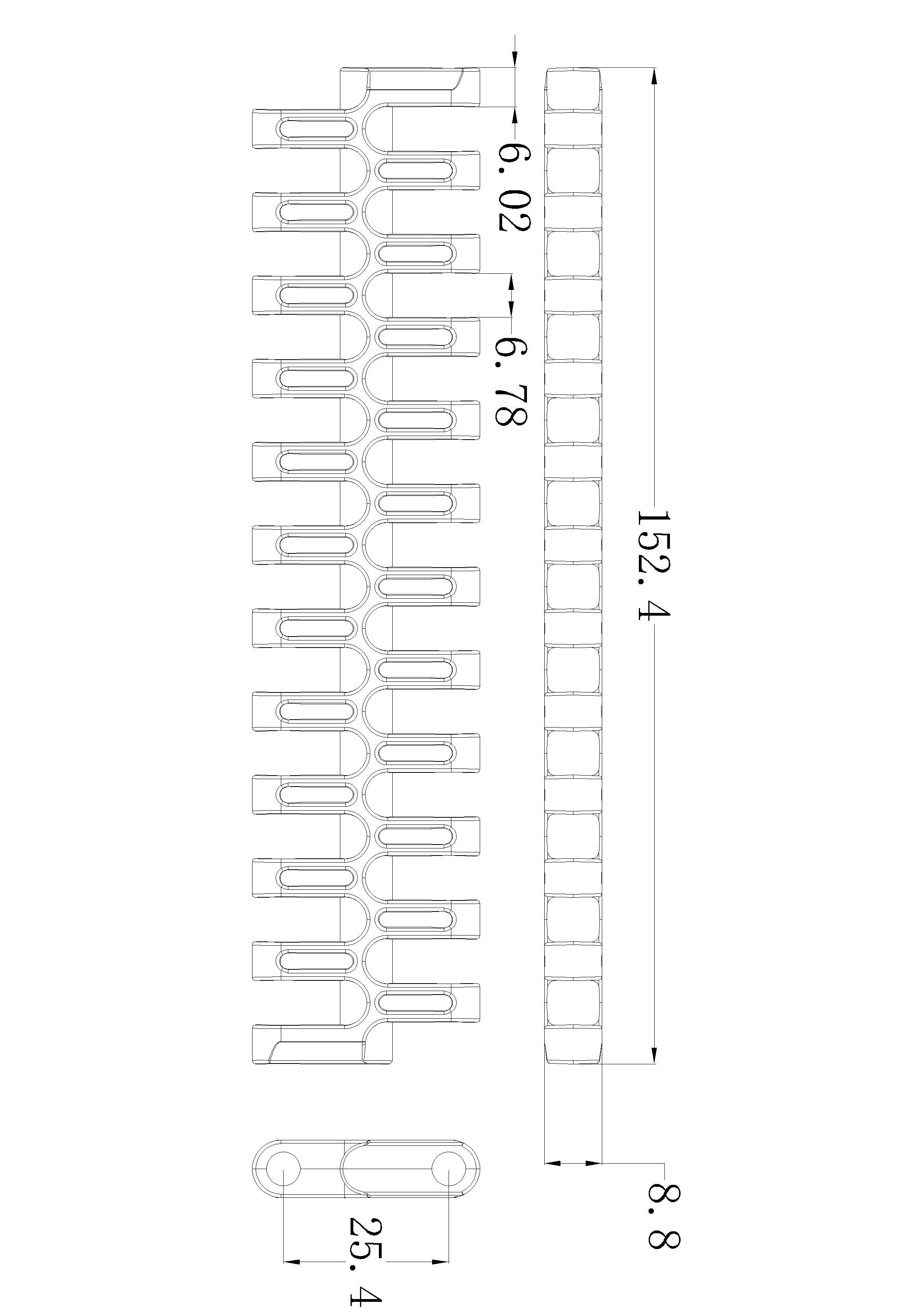

25.4 mm pitch 7200 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

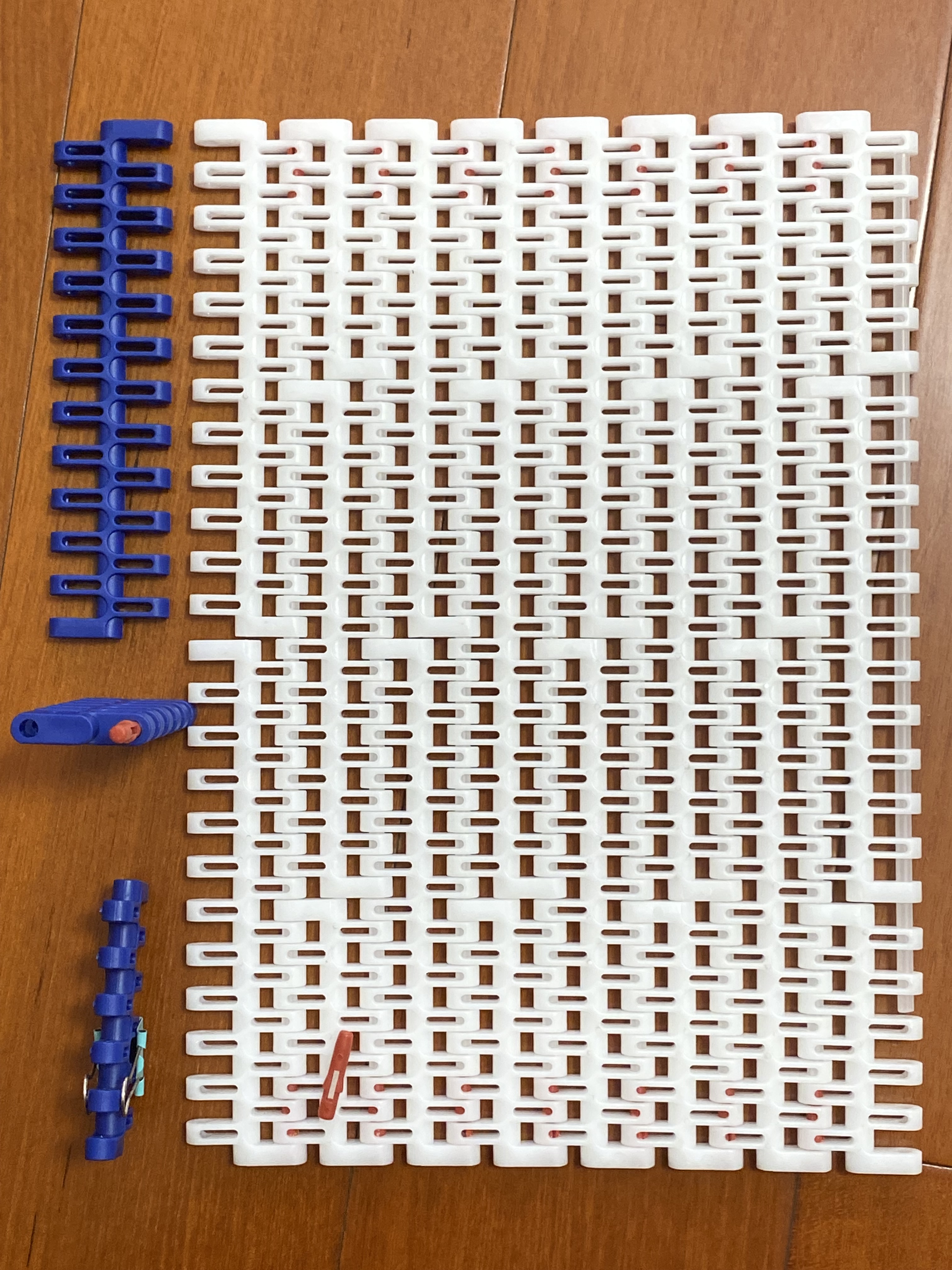

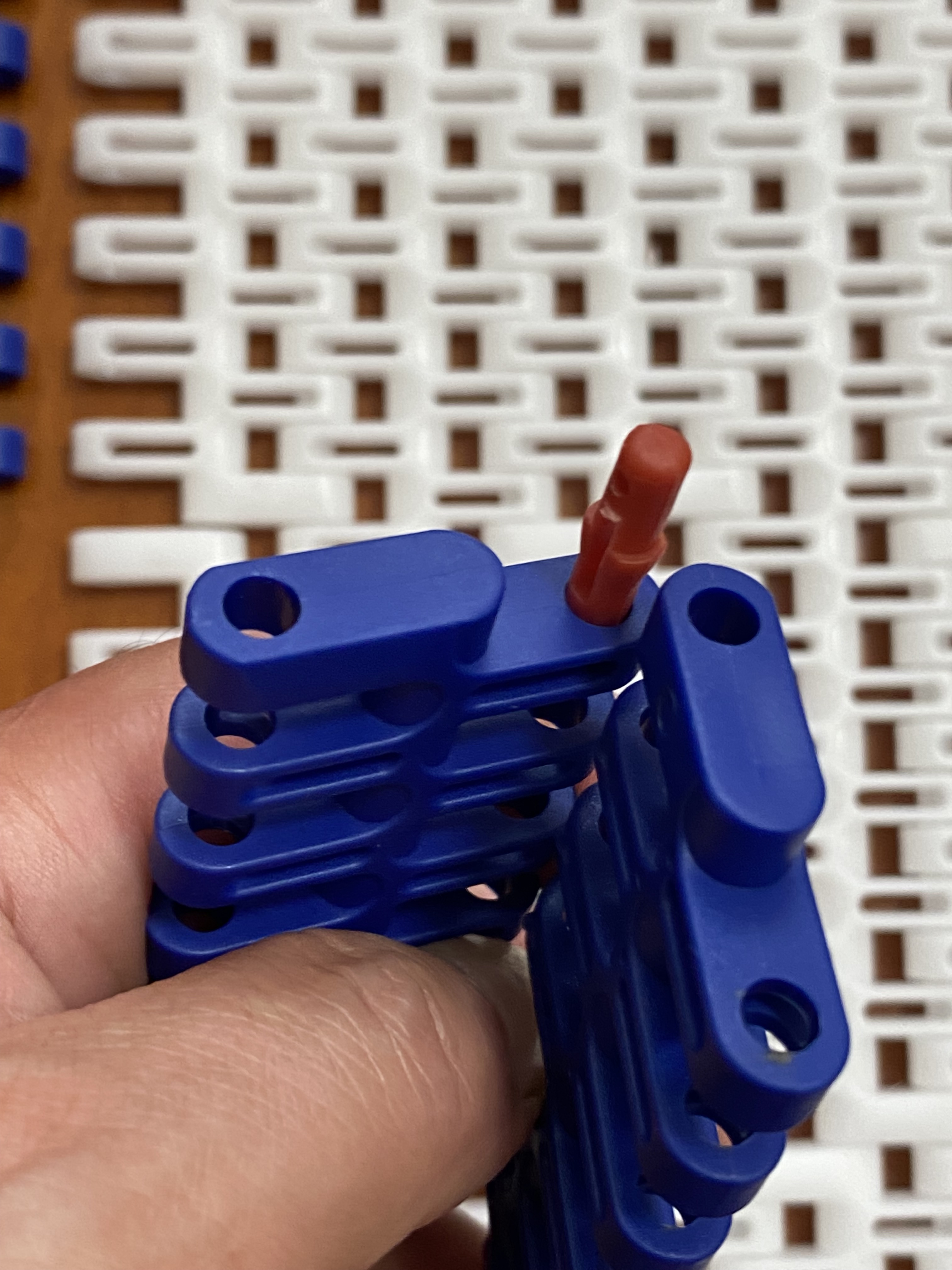

7300 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

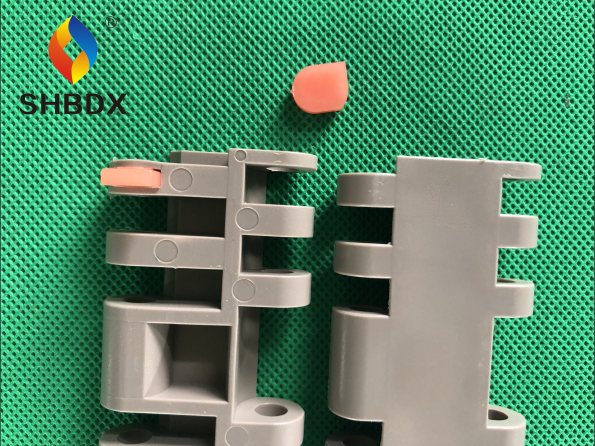

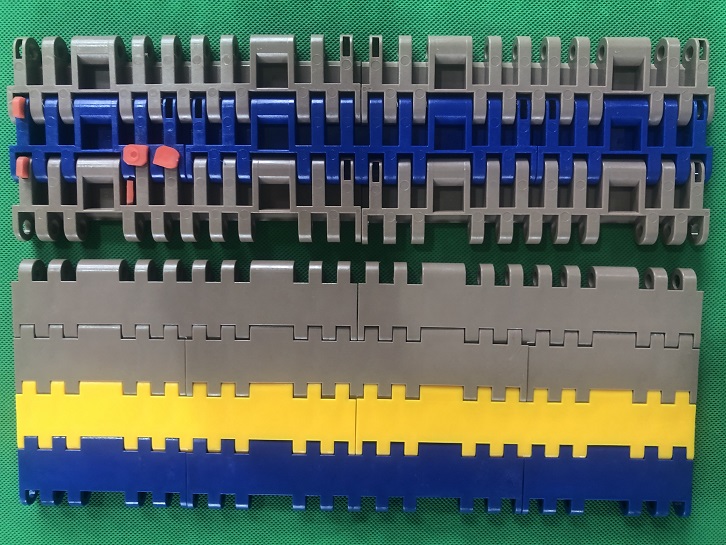

25.4 mm pitch 7705 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

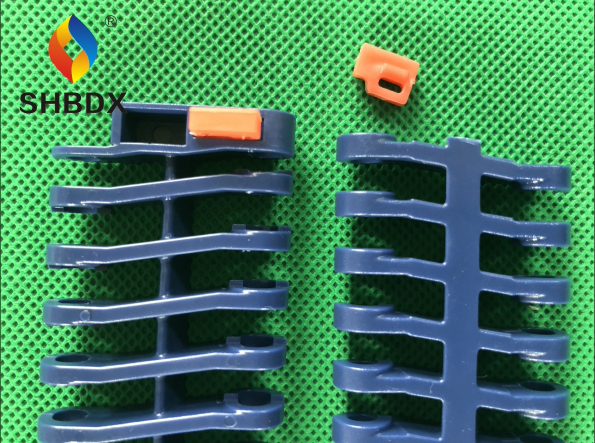

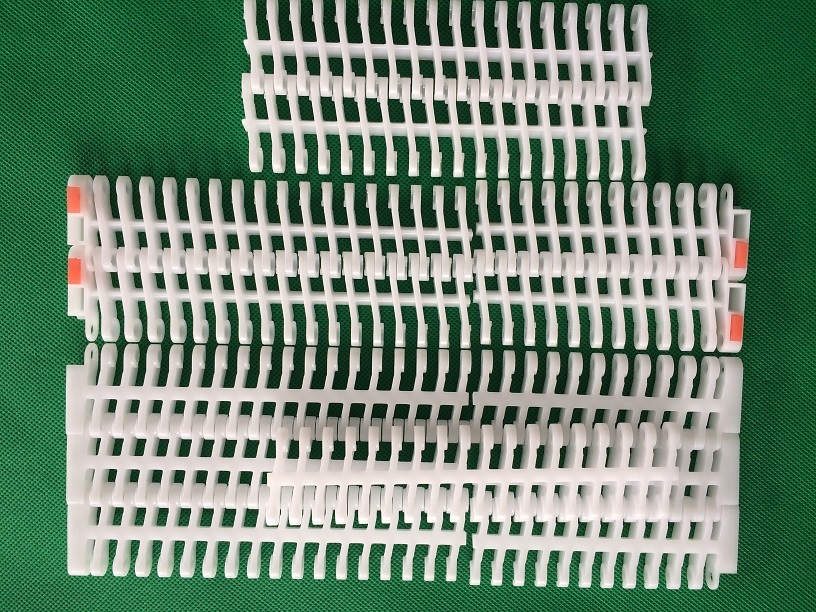

27.2 mm pitch 900 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

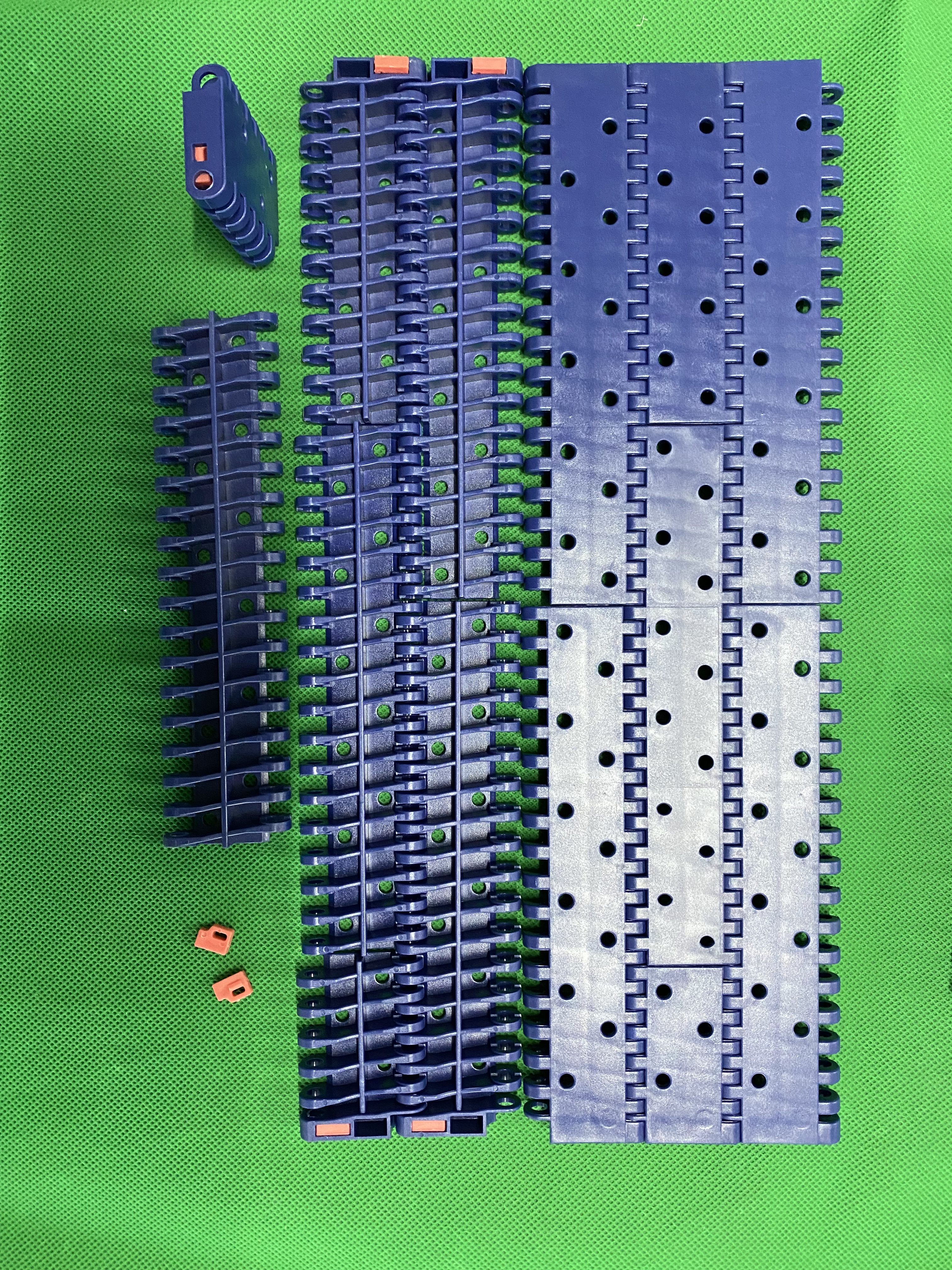

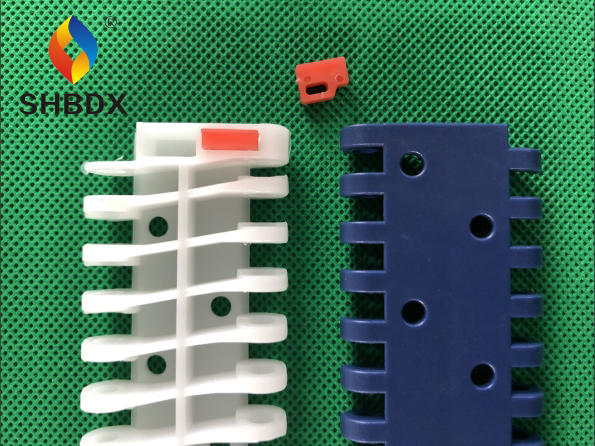

27.2 mm pitch 900 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

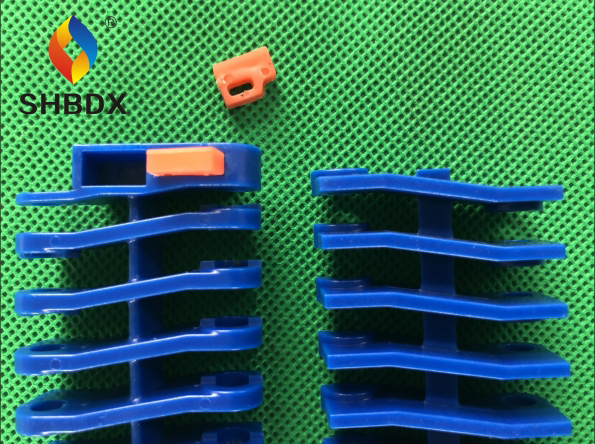

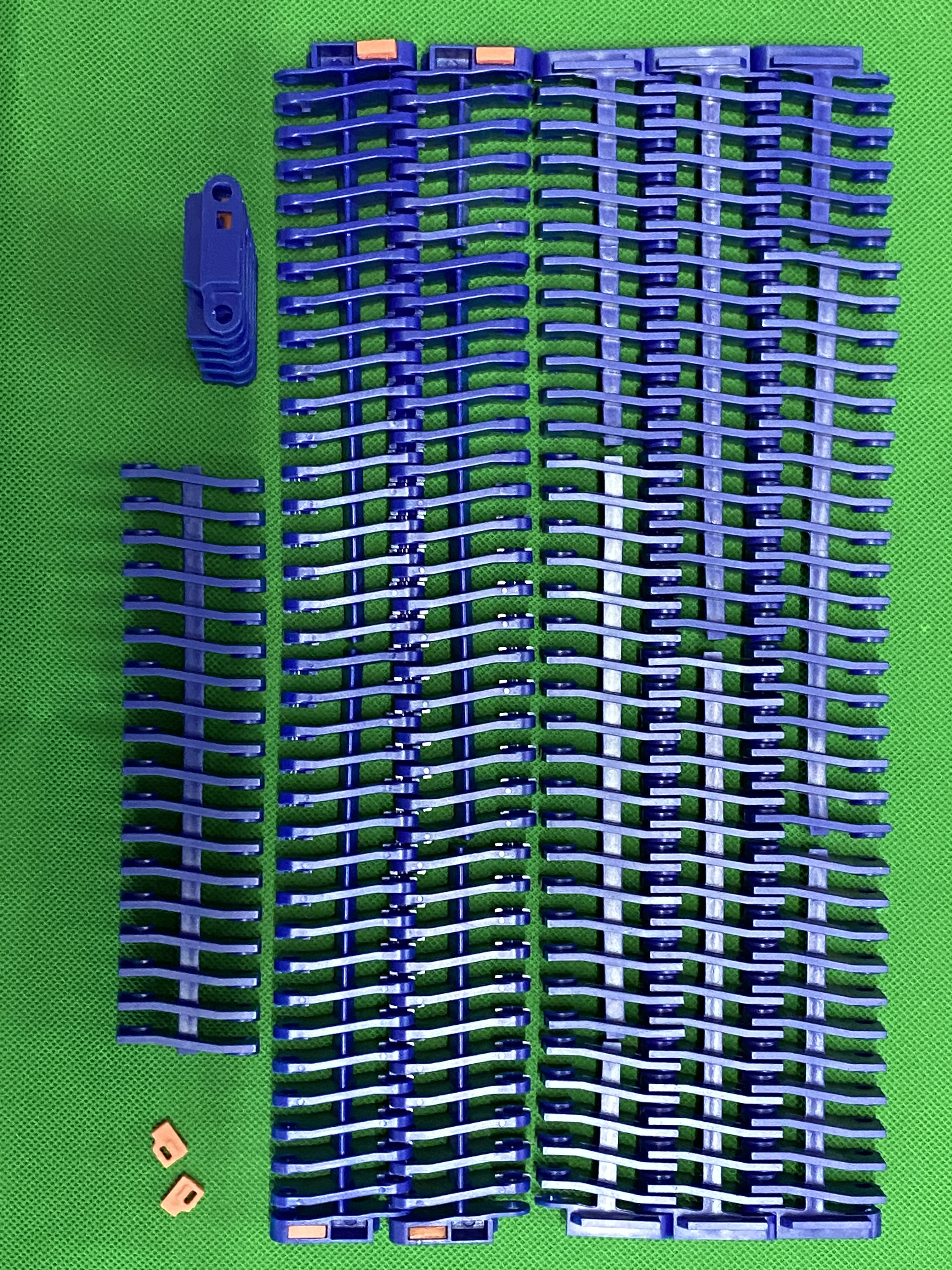

27.2 mm pitch 900 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

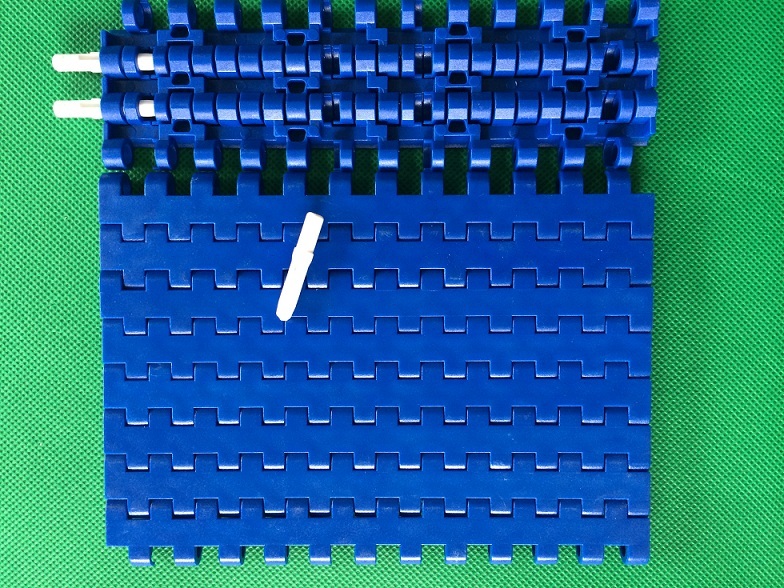

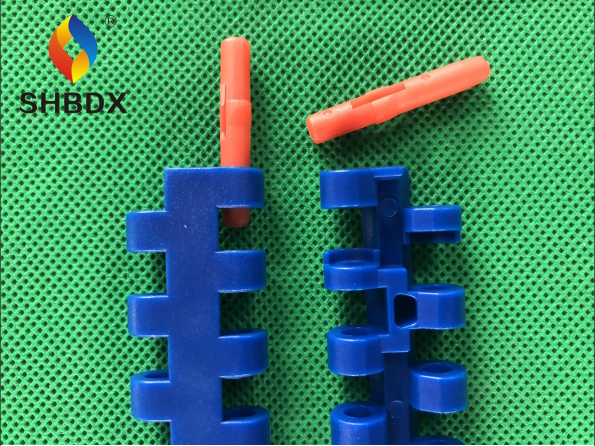

12.7 mm pitch 926 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

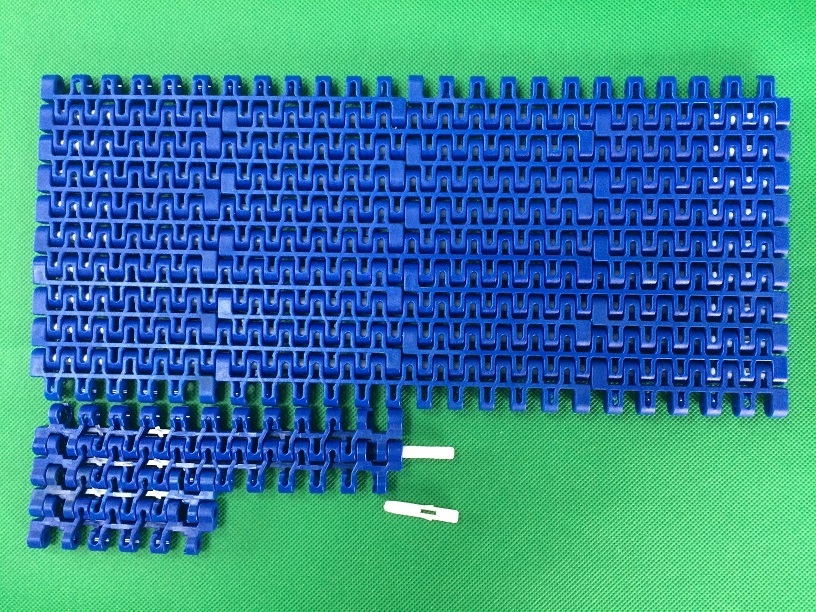

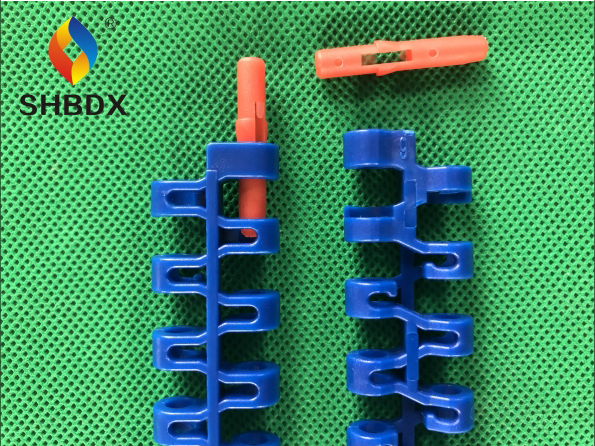

12.7 mm pitch 926 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

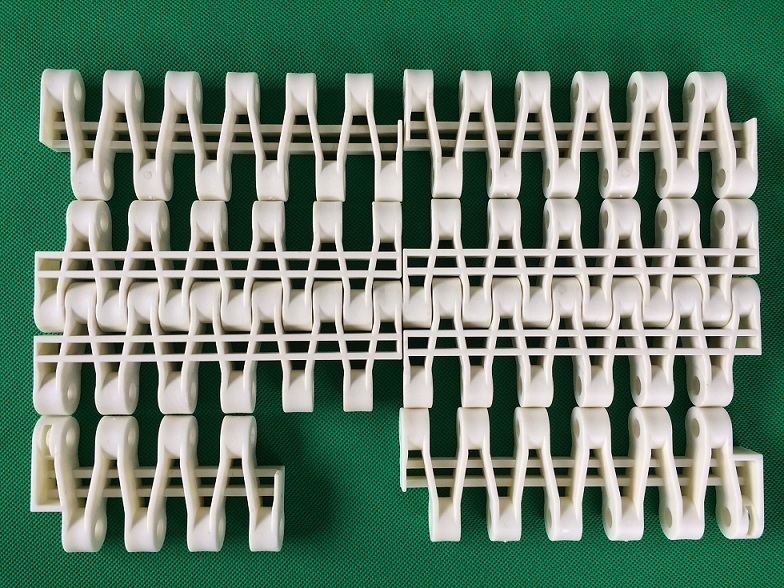

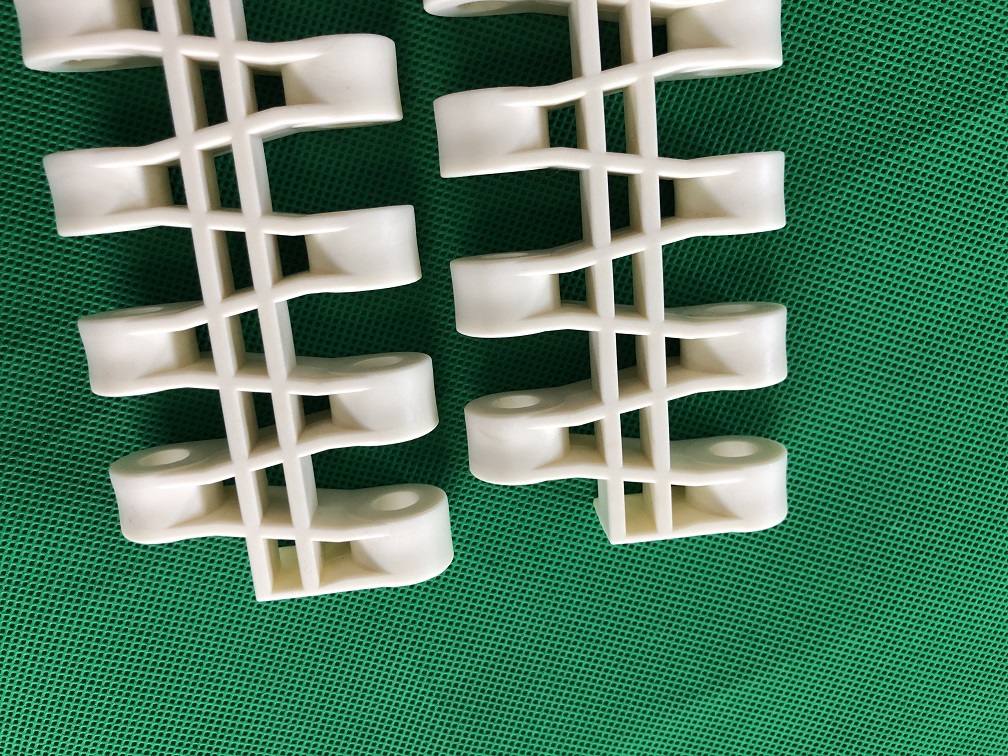

38.1 mm pitch 936 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

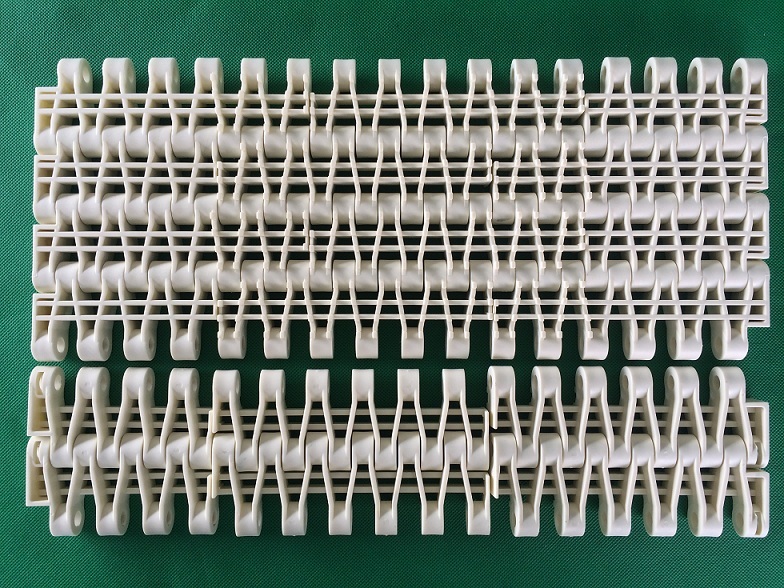

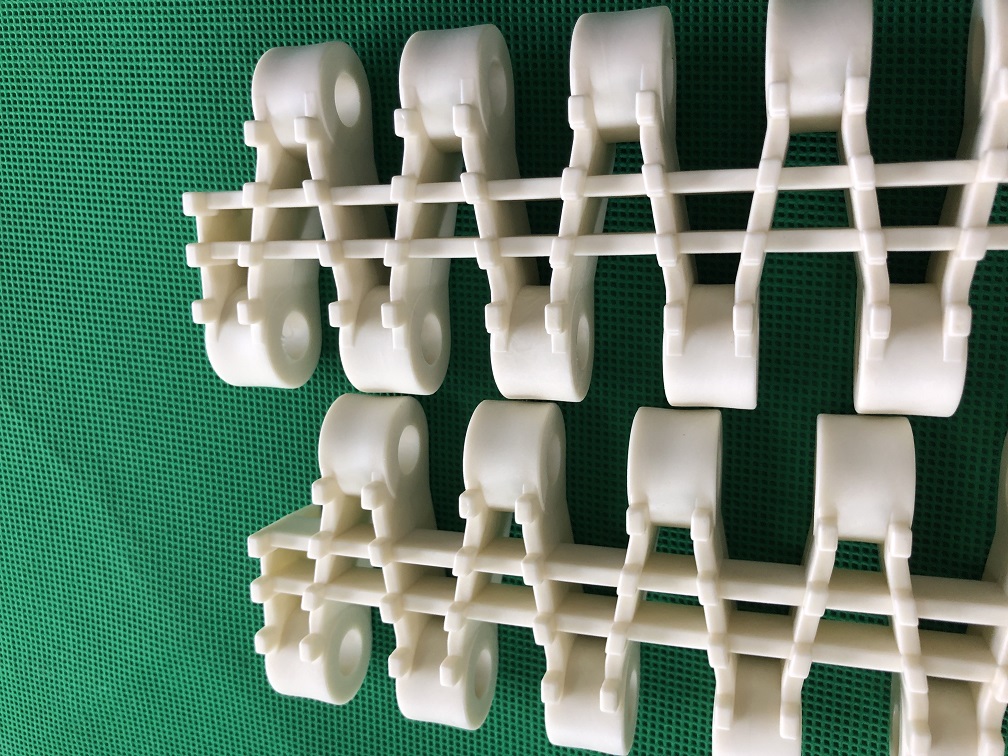

38.1 mm pitch 936 series nub top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

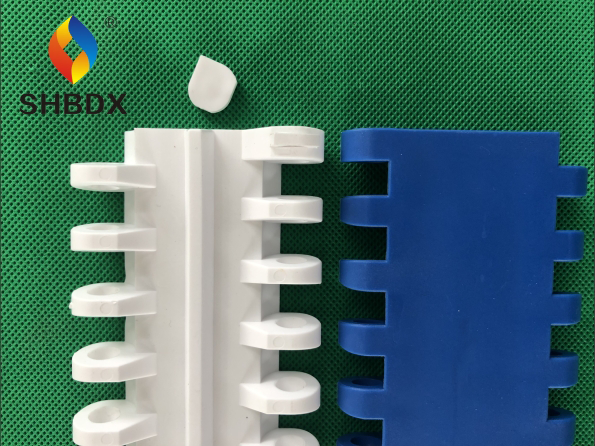

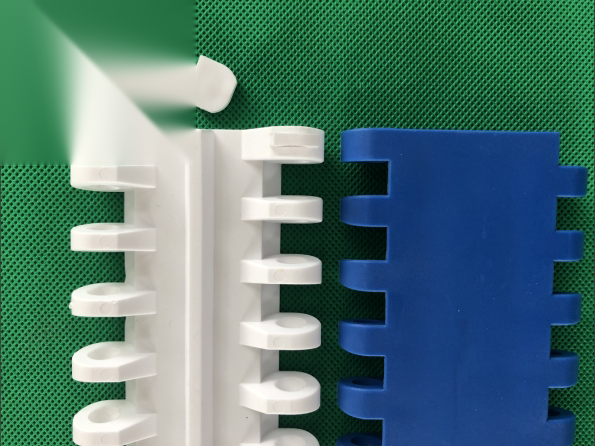

50.8 mm pitch 956 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

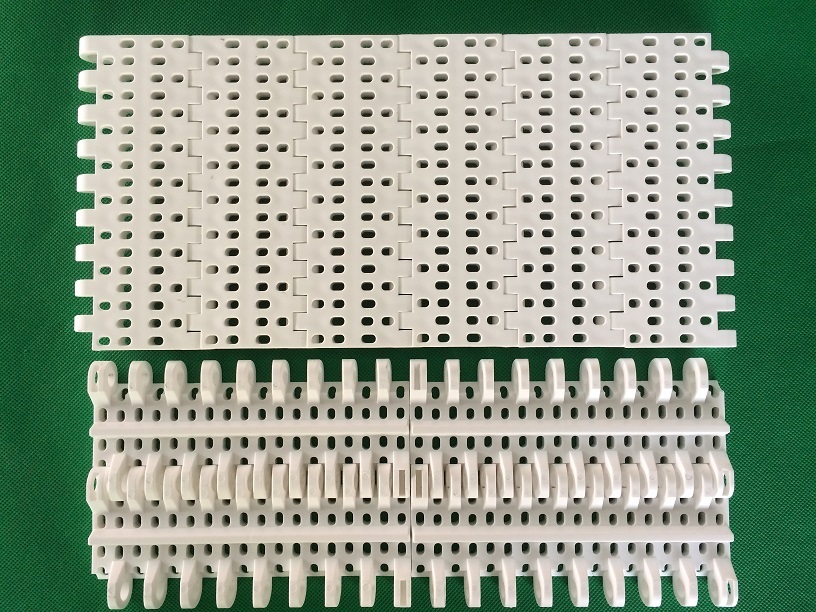

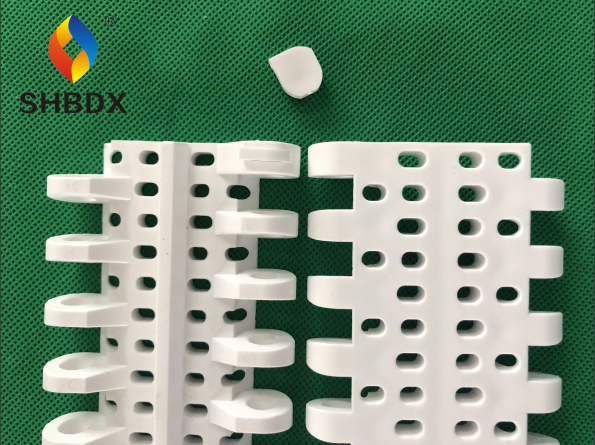

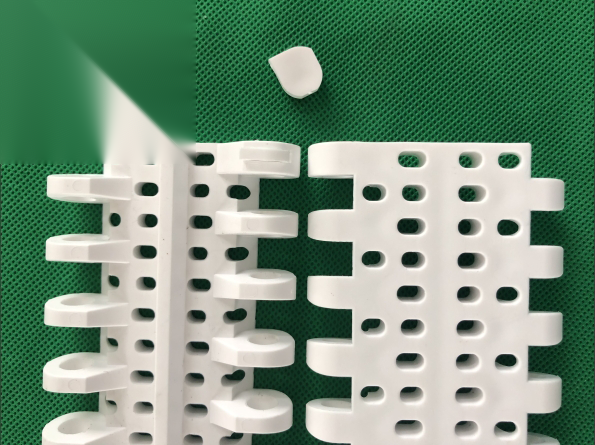

50.8 mm pitch 956 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

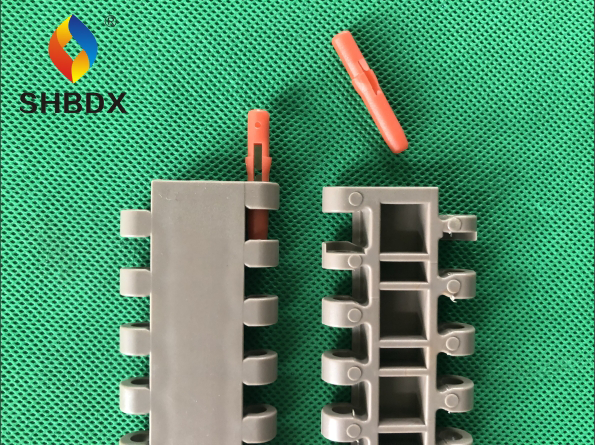

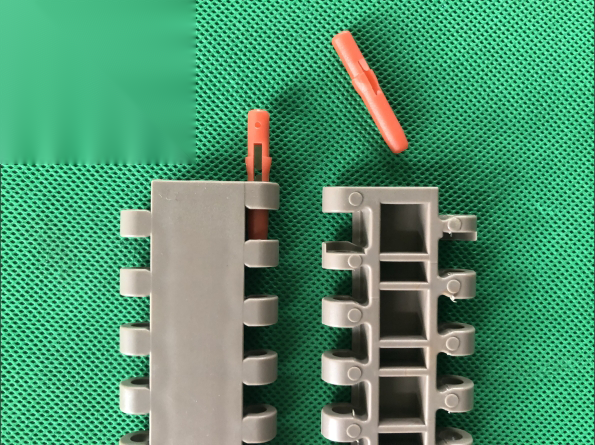

25.4 mm pitch 966 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

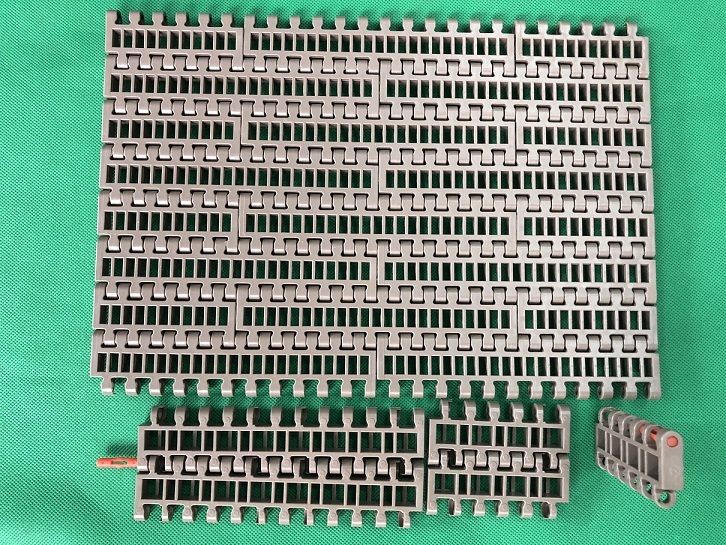

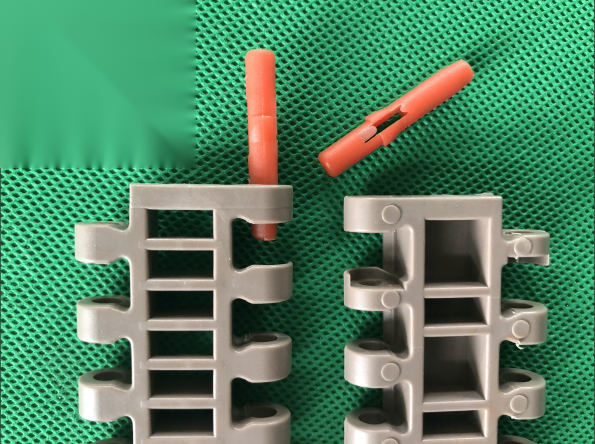

25.4 mm pitch 966 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

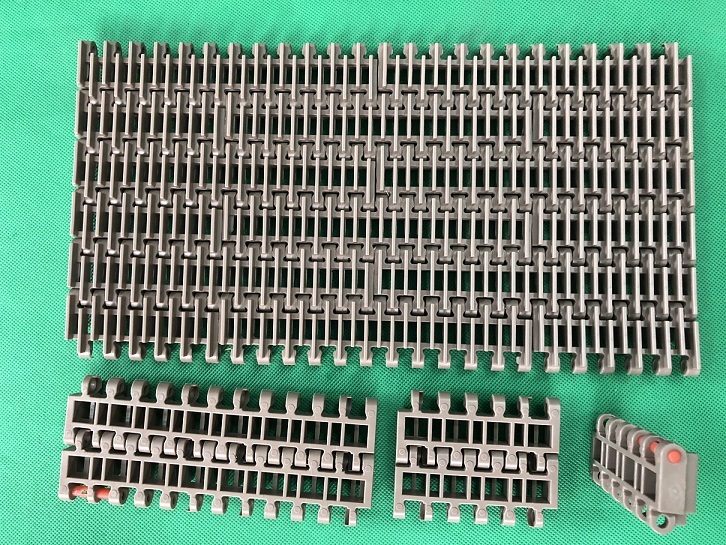

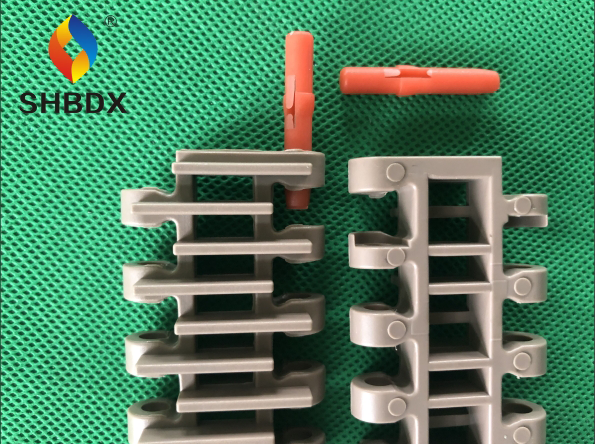

25.4 mm pitch 966 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

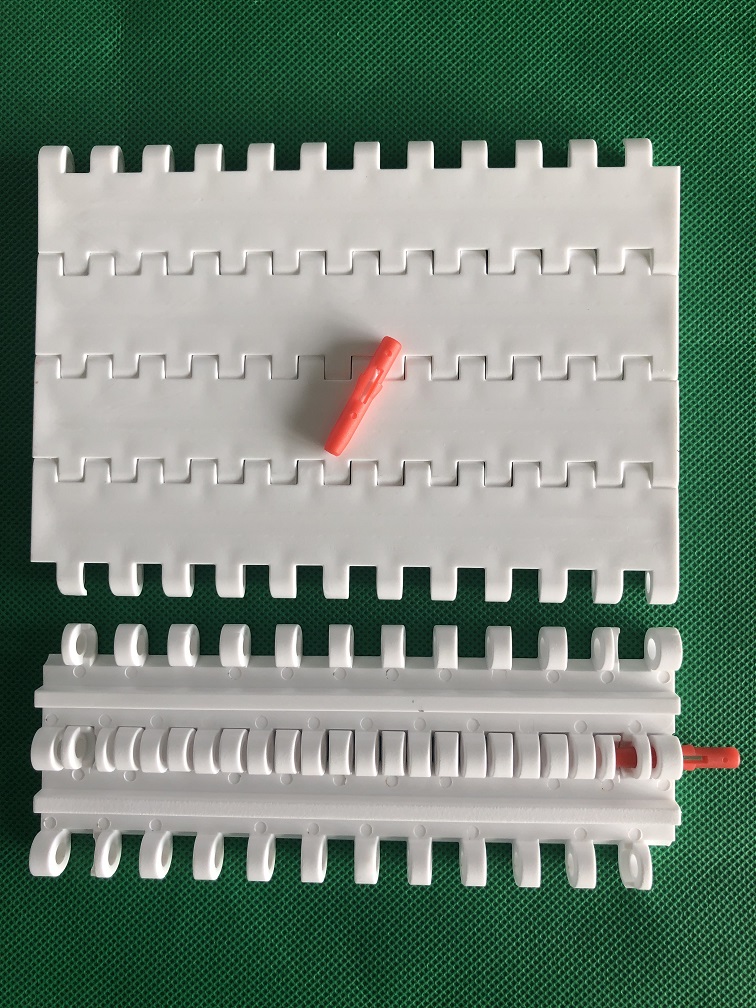

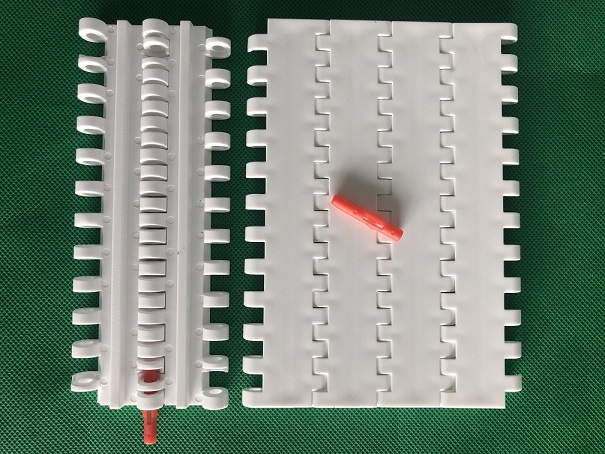

25.4 mm pitch 976 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

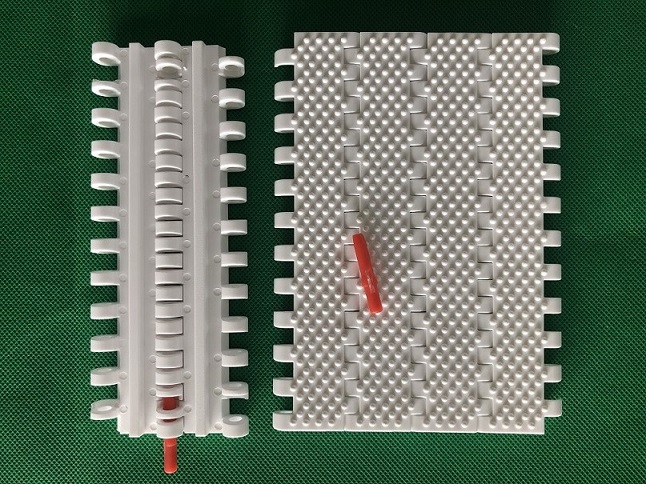

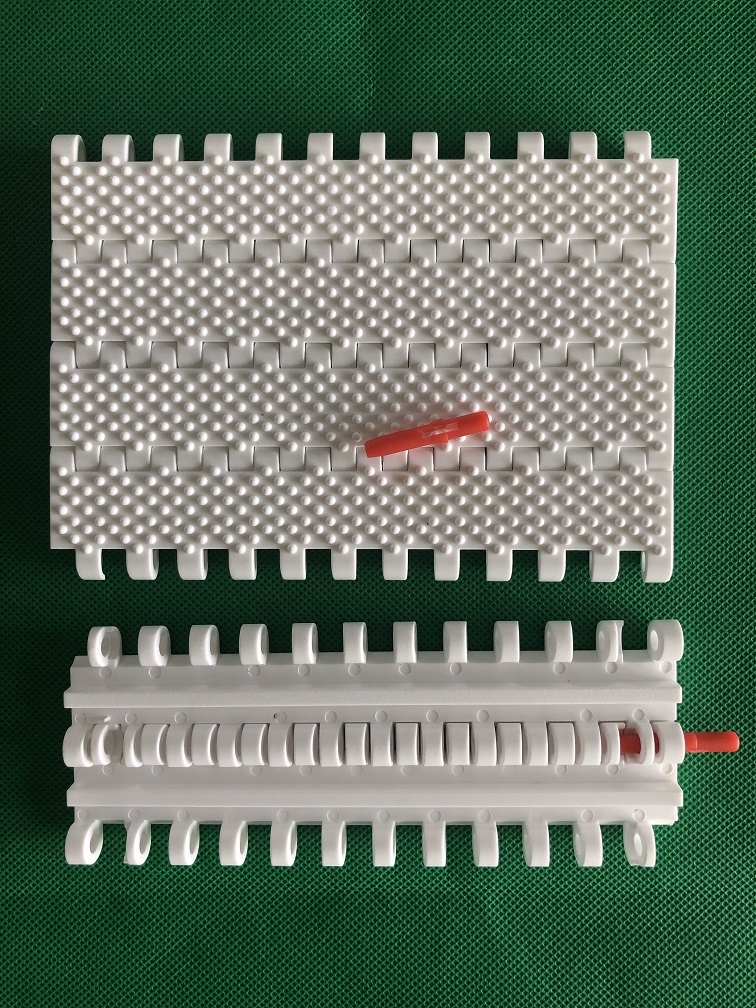

25.4 mm pitch 976 series nub top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

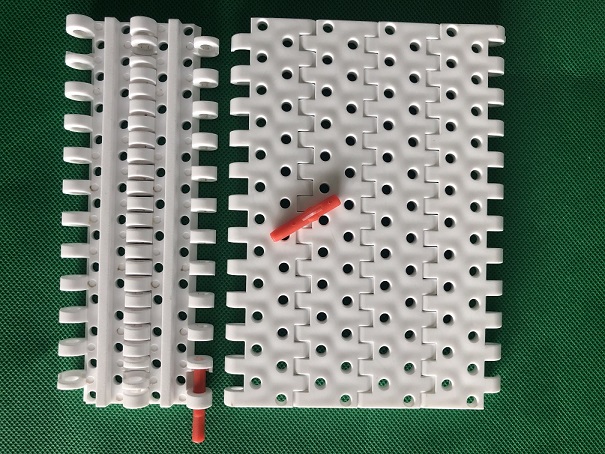

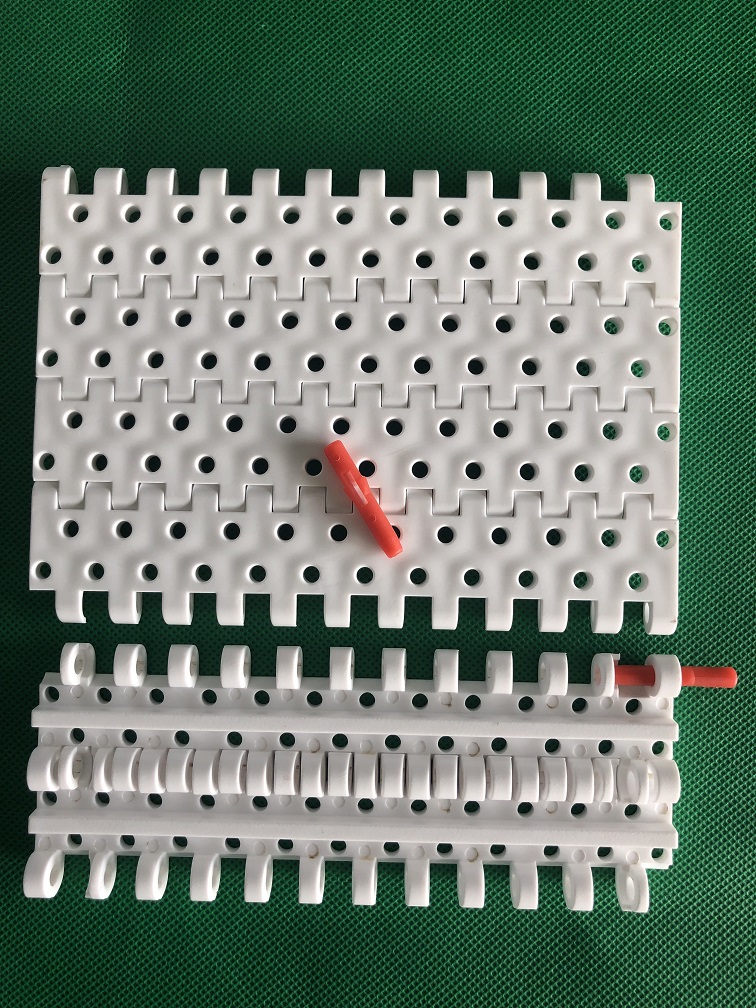

25.4 mm pitch 976 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

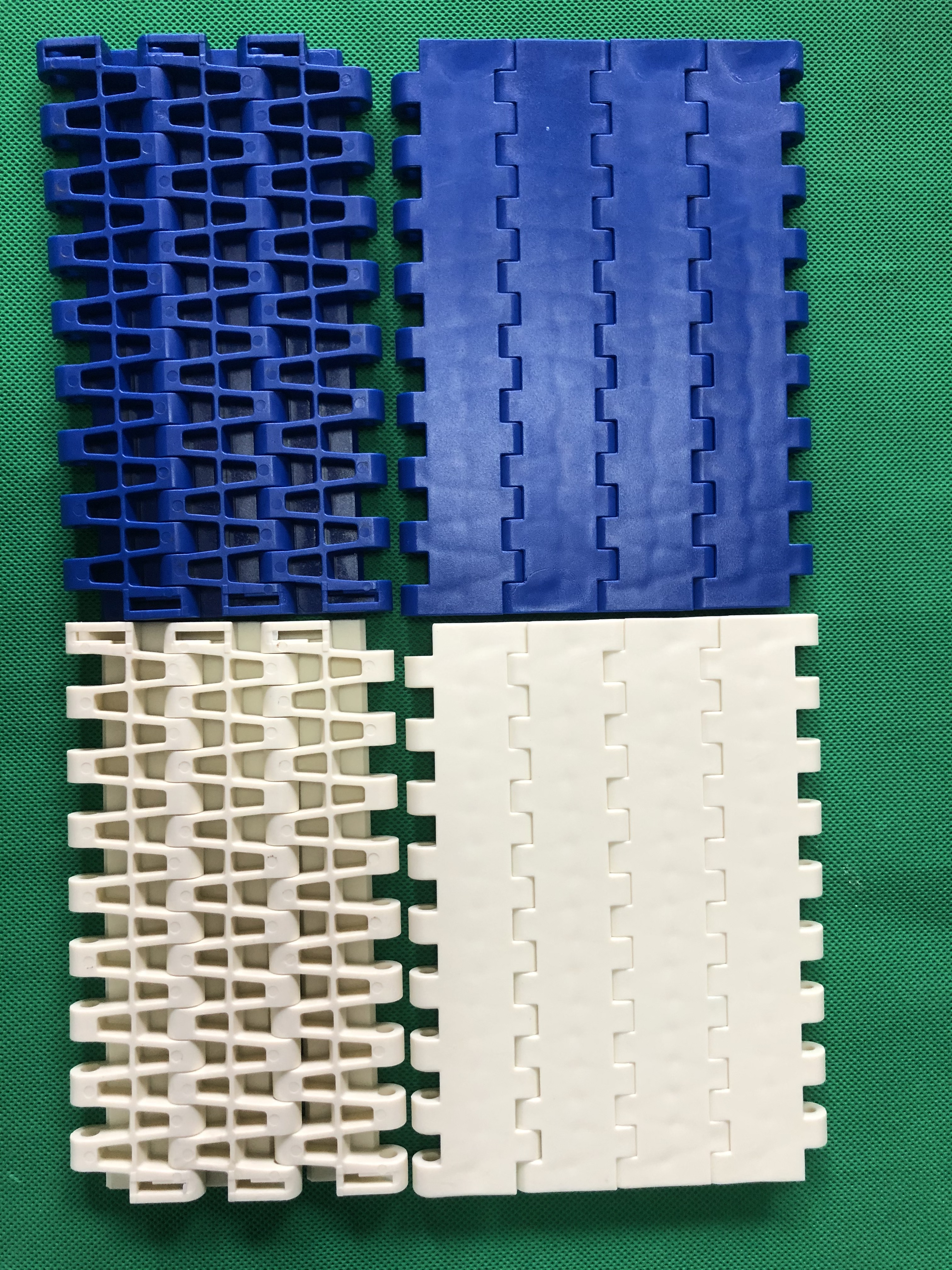

25.4 mm pitch 986 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

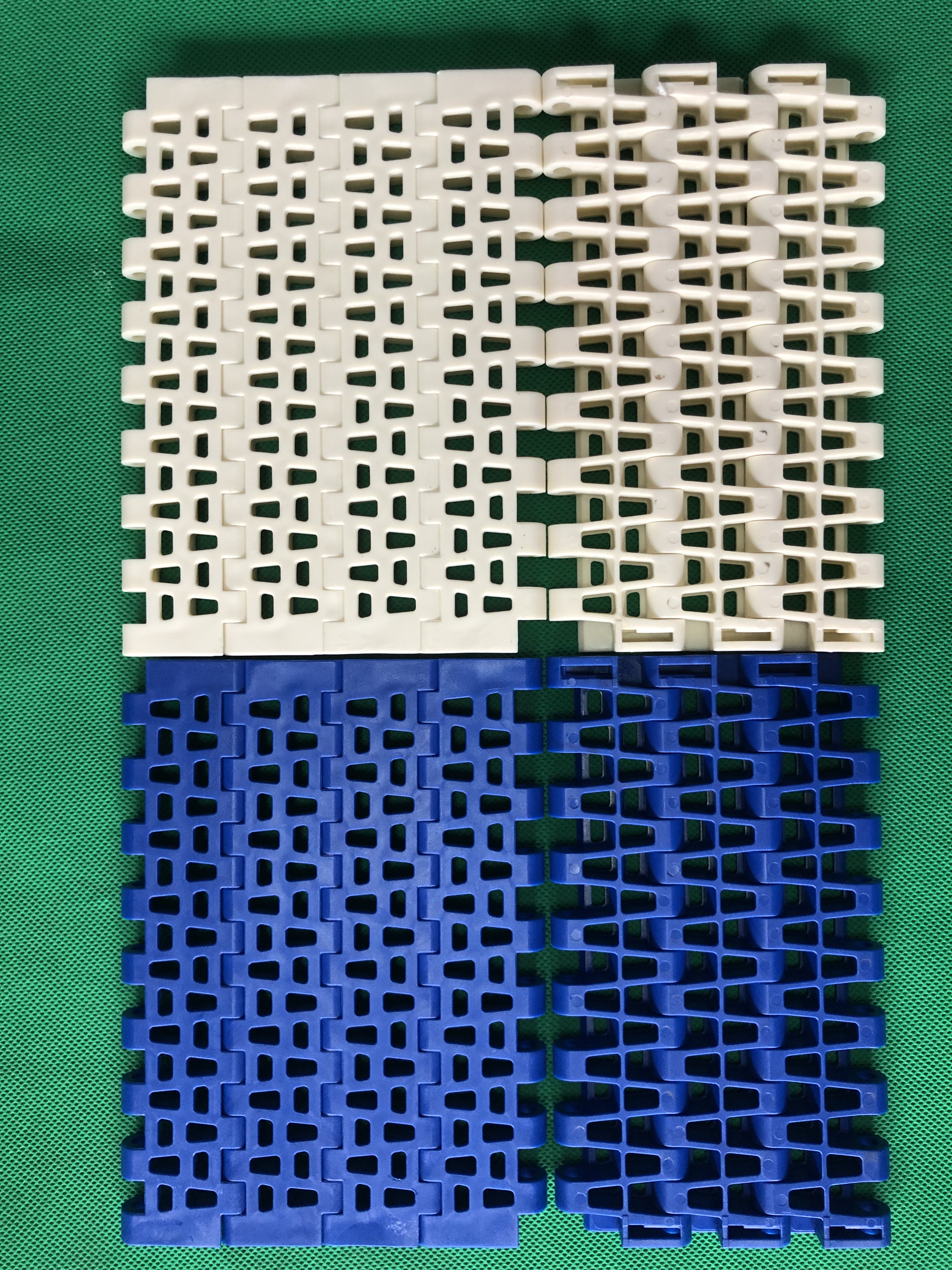

25.4 mm pitch 986 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

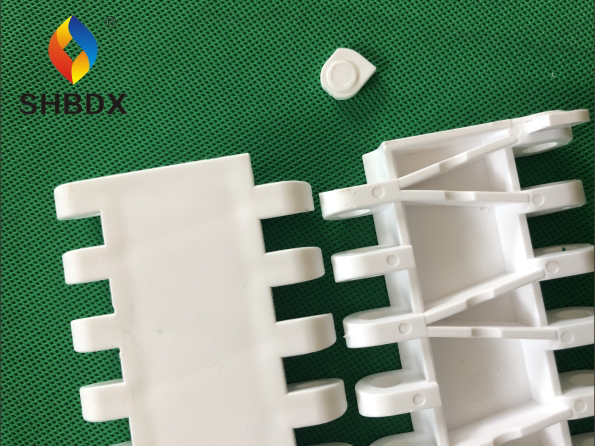

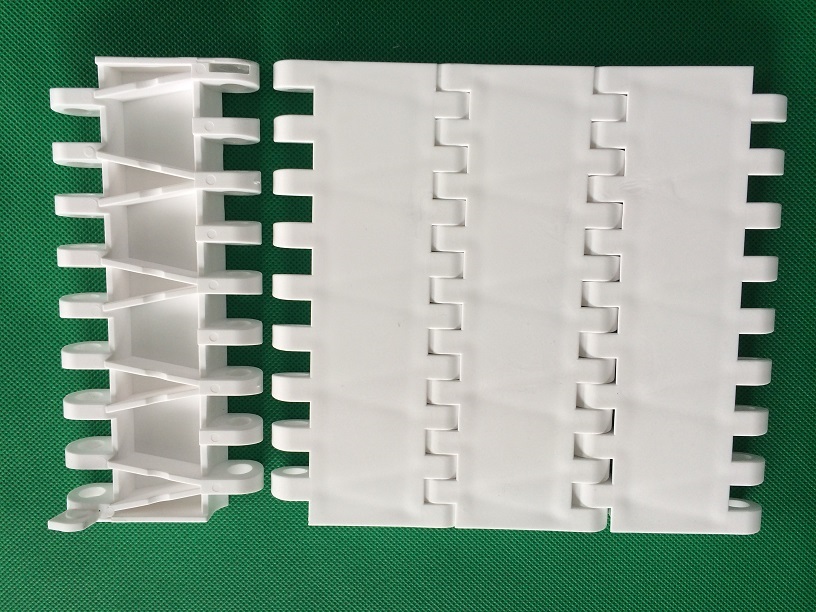

50.8 mm pitch opb flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

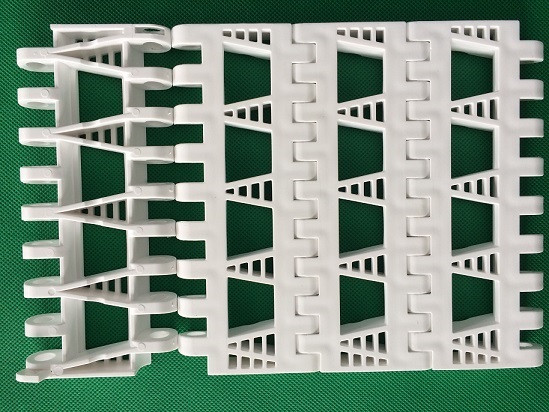

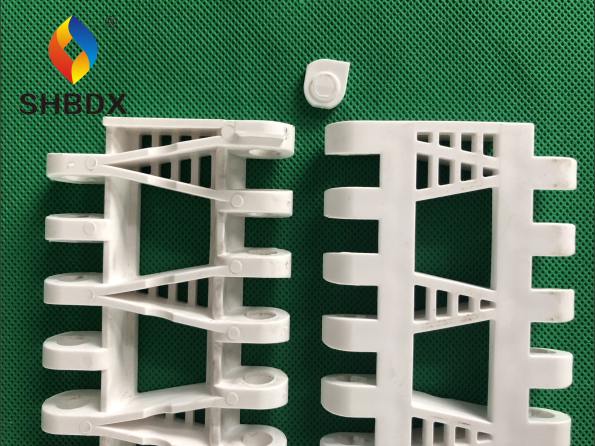

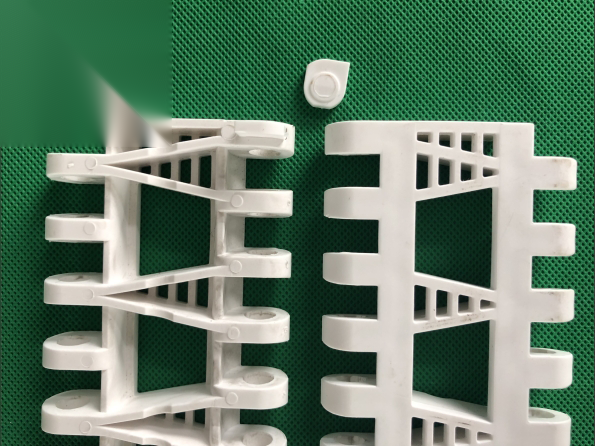

50.8 mm pitch opb large open grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

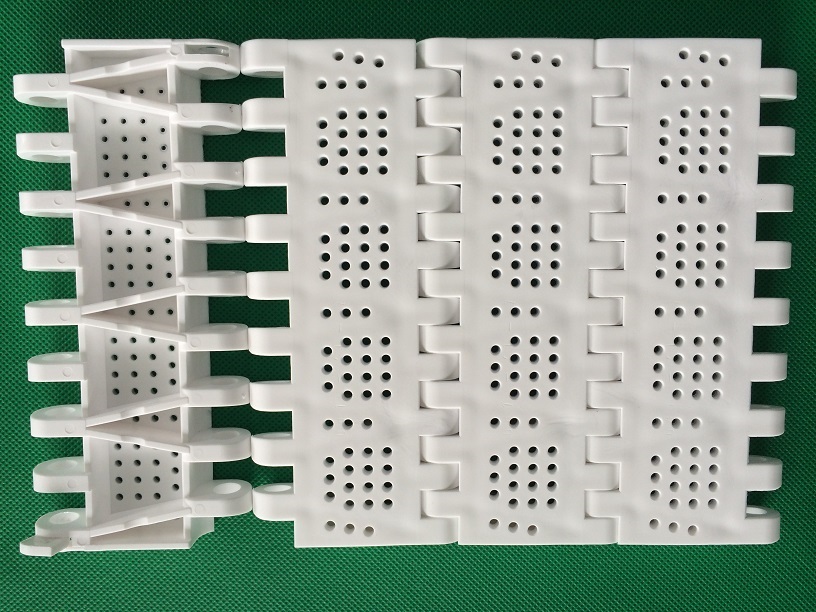

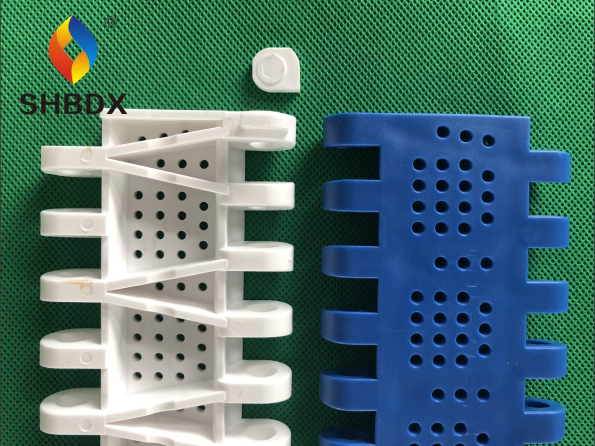

50.8 mm pitch opb perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

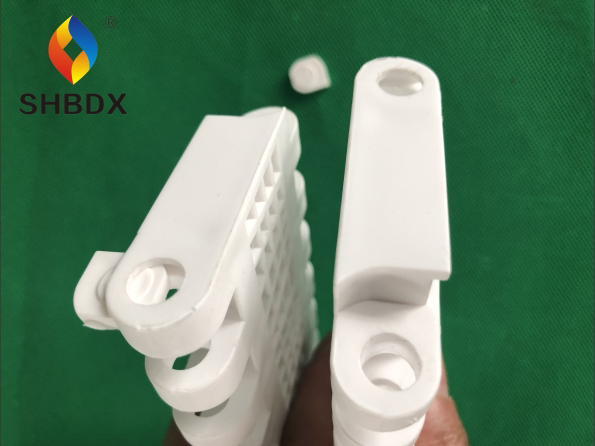

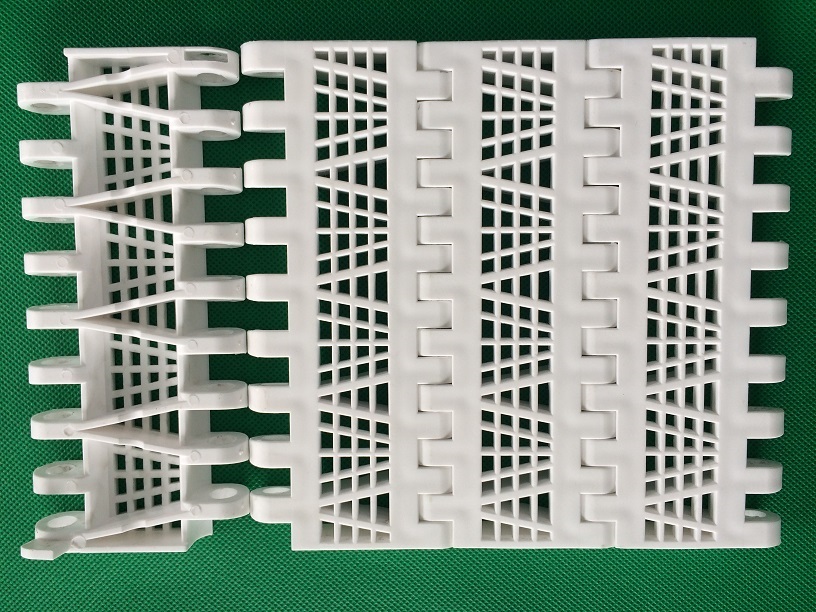

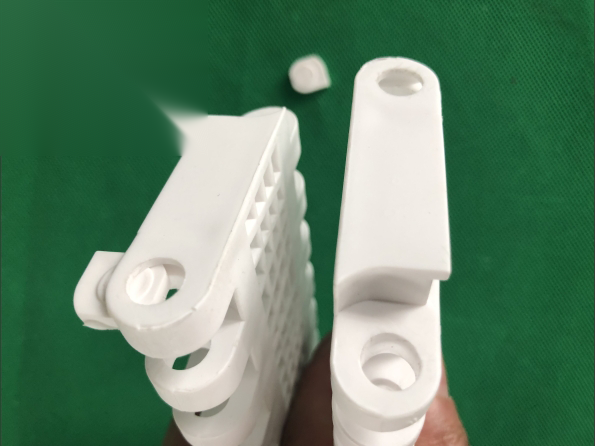

50.8 mm pitch opb reinforced flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Start with pitch, not with the series number. Pitch decides the sprocket, the smallest nose radius the belt can turn, and how small a product can sit on the belt without tipping into a hinge. Once the pitch family is fixed, the surface and the material are the two decisions left, and both can change without touching the drive.
| Pitch | Series in this range | Where it usually sits |
|---|---|---|
| 12.7 mm | 926 | Small products, tight transfers between machines |
| 15.24 mm | 1100 | Light duty conveying, small nose bars |

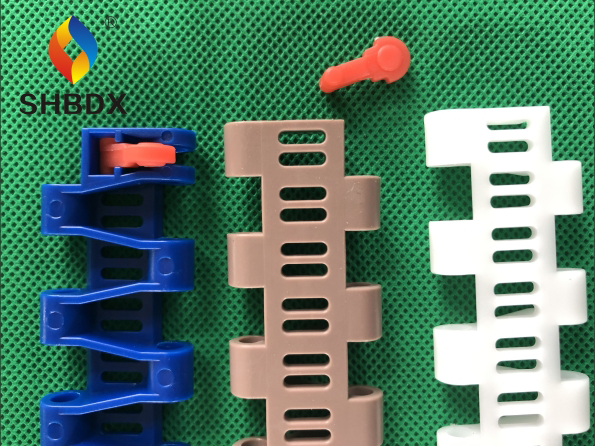

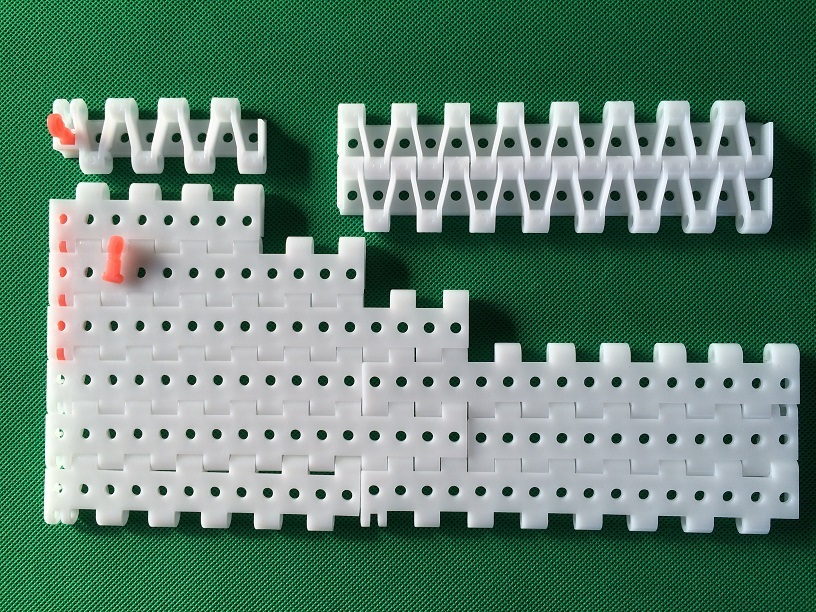

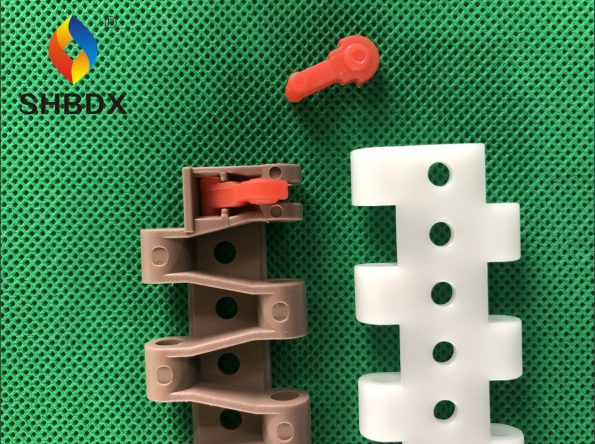

| 19.05 mm | 5935 | General light conveying |

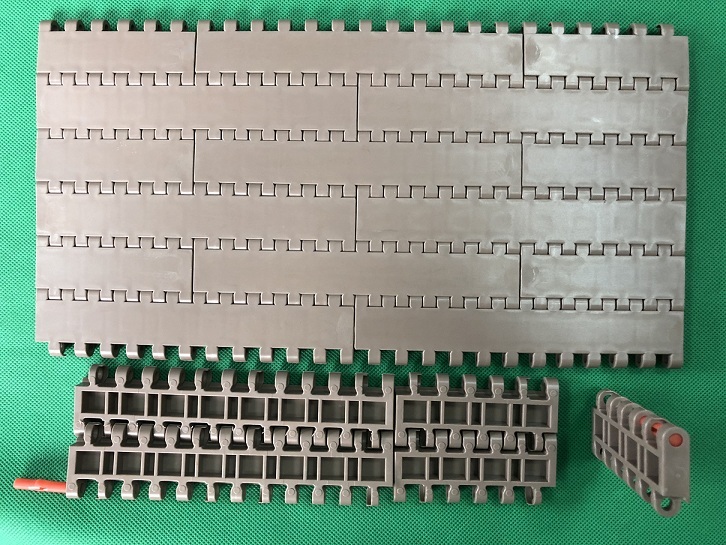

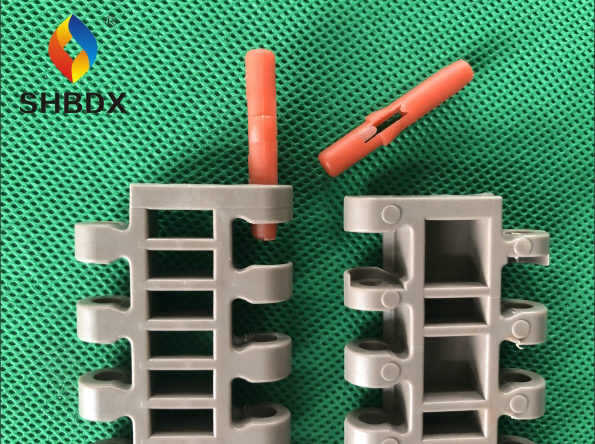

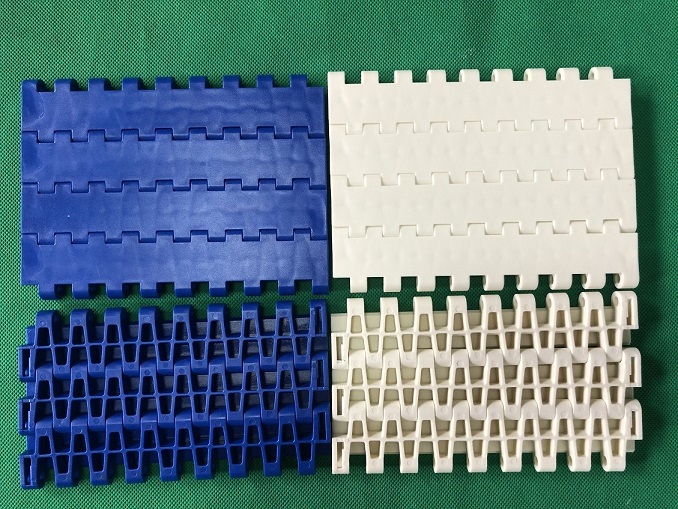

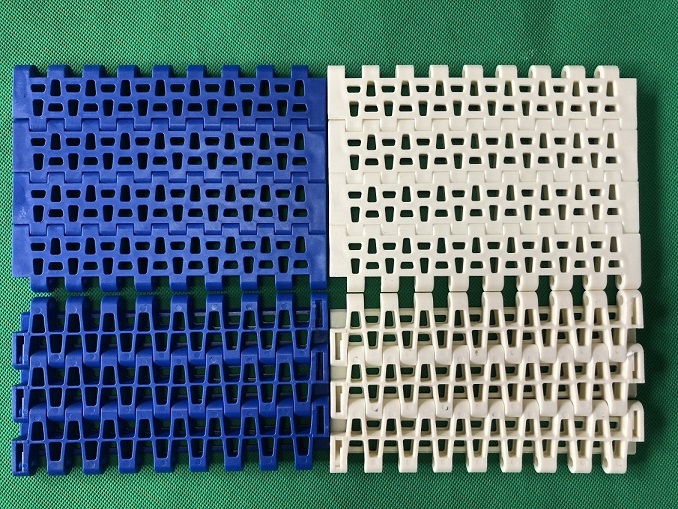

| 25.4 mm | 966, 976, 986, 1000, 7200, 7705 | The general purpose range, and the most crowded one |
| 27.2 mm | 900 | Food processing all-rounder |
| 38.1 mm | 936, 4802 | Medium duty, heavier product |

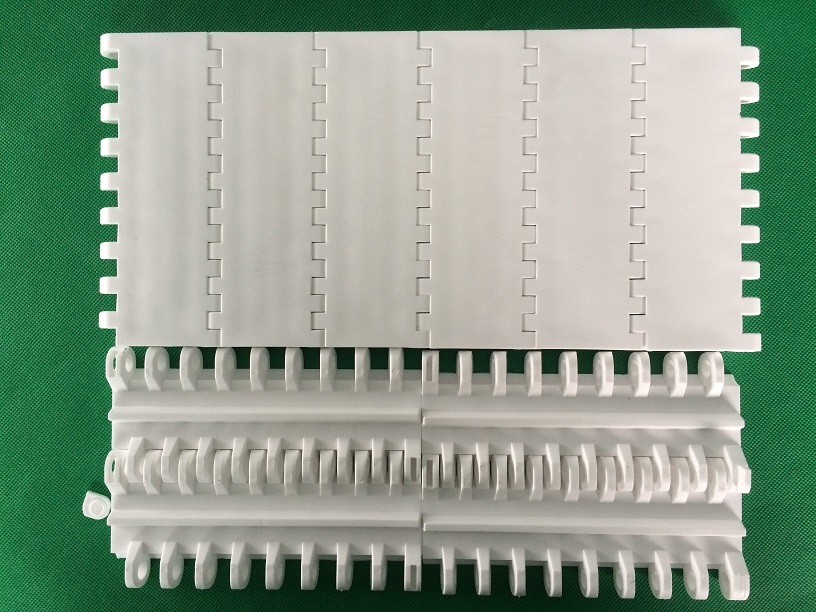

| 50.8 mm | 400, 956, OPB | Washdown lines, heavy or wet product |
| 57.15 mm | 4809, 5997 | Heavy duty and raised rib transfer |
Six series share the 25.4 mm pitch, so pitch alone will not identify a belt you already own. Module thickness and rod diameter are what separate them, and the method is set out in how to measure a modular belt for replacement.
Every surface in a series runs on the same sprockets, so a line can move from a closed deck to an open one without changing the drive.
PP is the default for washdown food lines. POM raises belt strength substantially in the same series, which matters on long runs and inclines, and it dislikes acidic cleaning chemicals. PE is chosen for cold and for low friction. Food-grade material options compliant with FDA and EU regulations are available; the comparison is in PP, PE and POM for food lines.
Modular belts are built from modules laid brick fashion, so width is a specification rather than a catalogue option. Each series has its own width increment, and the product page for the series states it. Send the width you measured across the frame and say it is measured.
Only if the new belt engages the existing tooth form exactly, and matching pitch is not enough on its own. See whether the old sprockets can stay.
Belt strength is quoted in newtons per metre of width, and it is compared against the pull calculated from product load, belt weight, run length, friction and any lift. The worked method is in the belt pull calculation.
