926 Series Flat Top Modular Belt

Name: 926 Series Flat Top Modular Belt
Brand: Veybelt
SKU: VL-926-FT

12.7 mm pitch 926 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-926-FT

Lead Time10-20 days

Product Description

Overview

Bottling and packaging lines need a surface that won't mark or snag the product. The 926 Series Flat Top Modular Belt gives you a completely closed, smooth flat top surface at 12.7 mm pitch. Modules are injection molded from PP / POM and brick-layed with hinge rods, so the belt runs straight, drives positively on sprockets and can be built to almost any width and length.

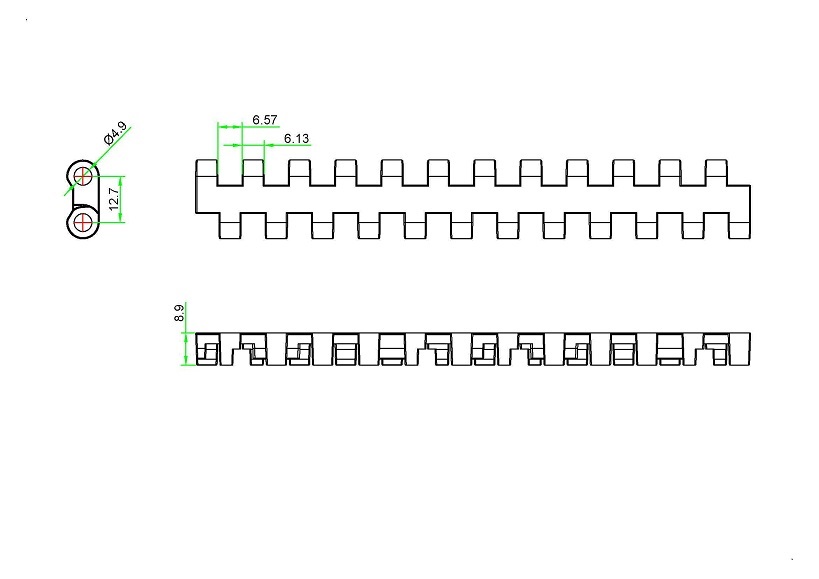

Technical Specifications

Series	926
Product Type	926 Series Flat Top Modular Belt
Pitch	12.7 mm
Belt Strength	9,500 N/m (PP) / 21,200 N/m (POM)
Thickness	8.9 mm
Open Area	0%
Material	PP / POM
Color	Natural, Blue, Brown
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Molded on dedicated, purpose-built tooling, so module quality stays consistent batch to batch
Positive drive: the hinges engage matching POM sprockets and the belt can't slip
Repairable module by module, which keeps downtime short
Food-grade PP/PE options that comply with FDA and EU food-contact regulations

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 926 Series Flat Top Modular Belt available in food-grade material?

Yes. Standard modules are molded from PP/PE (POM where applicable) resins that comply with FDA and EU food-contact regulations. We can include material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, so small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

The matching 926 series POM sprockets. They come in several teeth counts and bore sizes; send us your shaft size and we'll recommend the exact one.
