976 Series Flat Top Modular Belt

Name: 976 Series Flat Top Modular Belt
Brand: Veybelt
SKU: VL-976-FT

25.4 mm pitch 976 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-976-FT

Lead Time10-20 days

Product Description

Overview

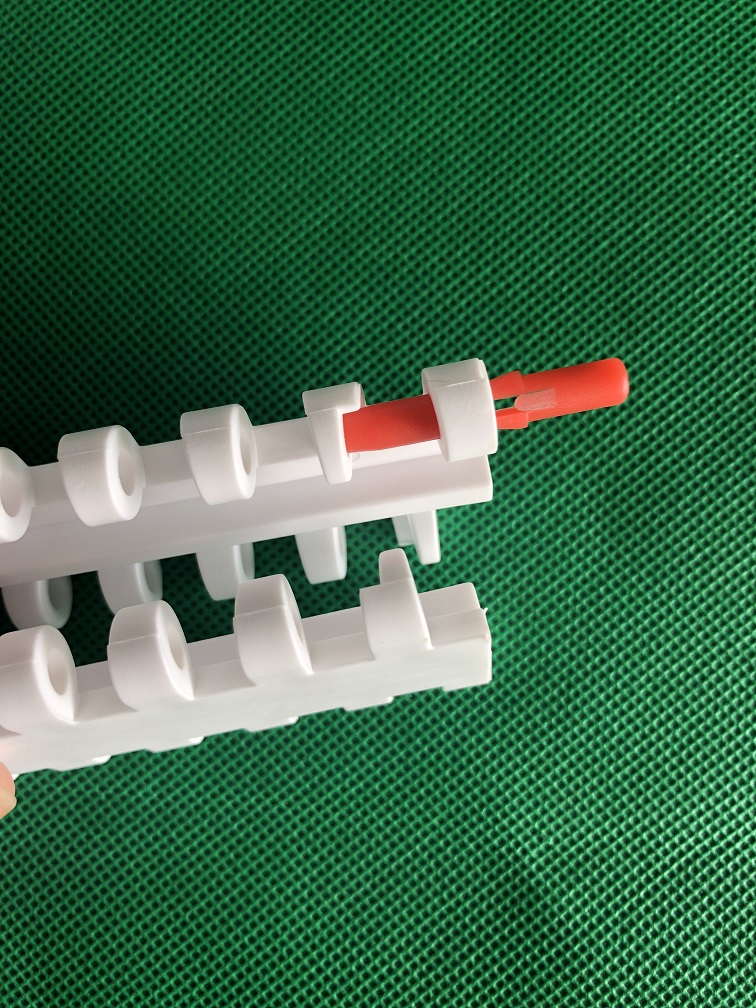

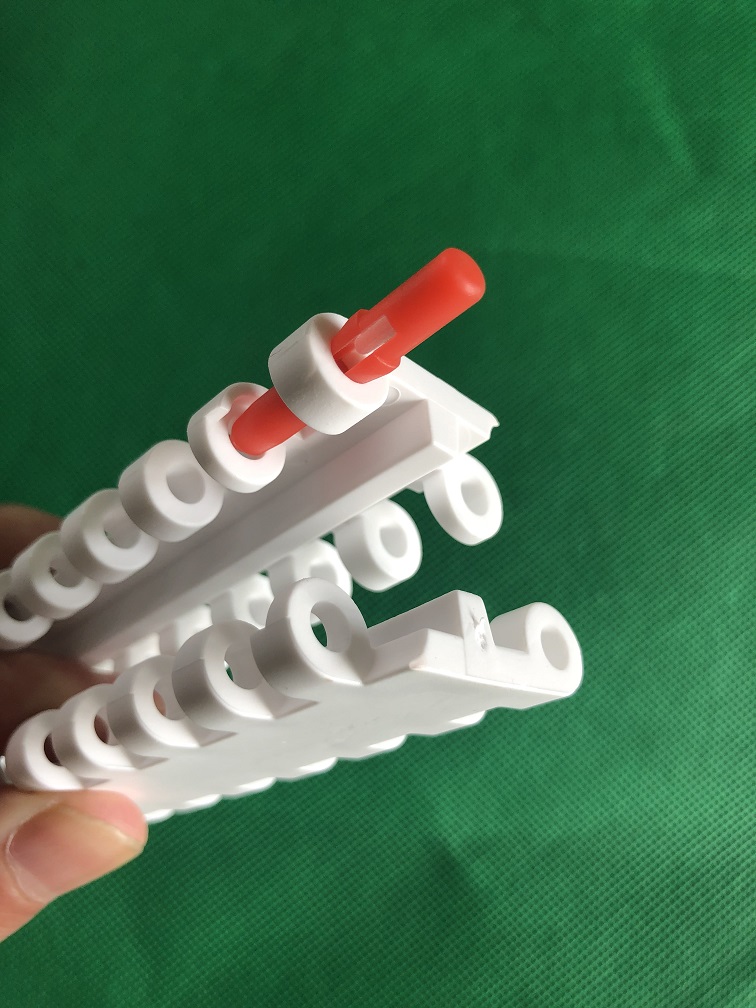

The 976 Series Flat Top Modular Belt runs a completely closed, smooth surface on a 25.4 mm pitch. Modules are injection molded from PP / PE and assembled brick-layed with hinge rods, so the belt tracks straight, drives positively on sprockets, and can be built to almost any width and length. A common choice for bottling lines and packaged goods transport.

Technical Specifications

Series	976
Product Type	976 Series Flat Top Modular Belt

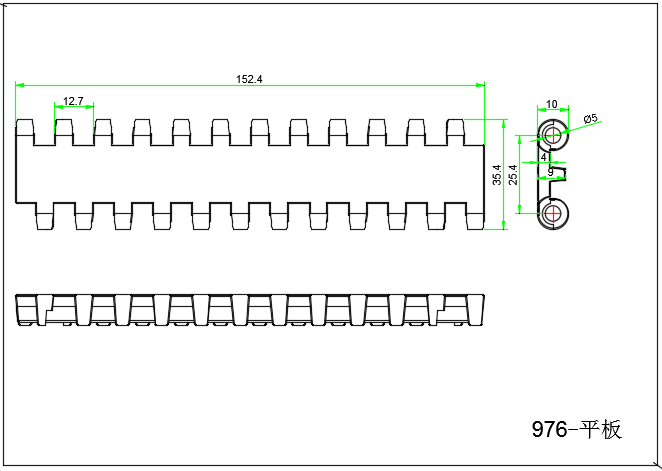

Pitch	25.4 mm
Belt Strength	14,650 N/m (PP)
Thickness	10 mm
Open Area	0%
Material	PP / PE
Color	White, Natural, Blue, Grey
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Tight dimensional tolerance from purpose-developed injection molds.
Positive sprocket drive: the belt can't slip or mistrack the way a friction-driven belt can.
Modular construction means you repair by swapping modules, not by replacing the belt.
Food-grade versions meeting FDA / EU food-contact requirements are available.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 976 Series Flat Top Modular Belt available in food-grade material?

Yes. The belt is molded from PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations. Material compliance certificates can be included with your order.

What are the MOQ and lead time?

Small trial orders are welcome and MOQ is negotiable for standard items. Typical production lead time is 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

Pair it with the matching 976 series POM sprockets, available in multiple teeth counts and bore sizes. Send us your shaft size and we'll recommend the exact sprocket.
