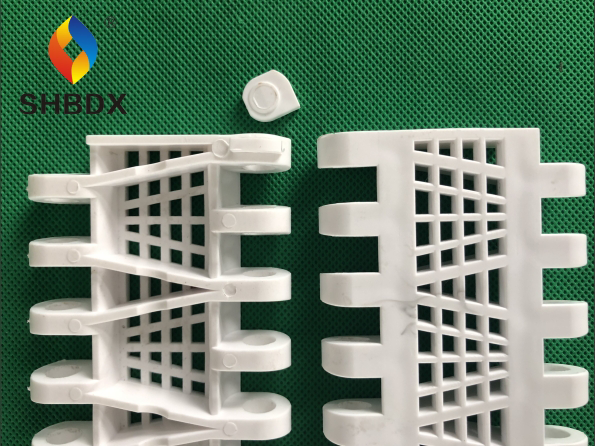

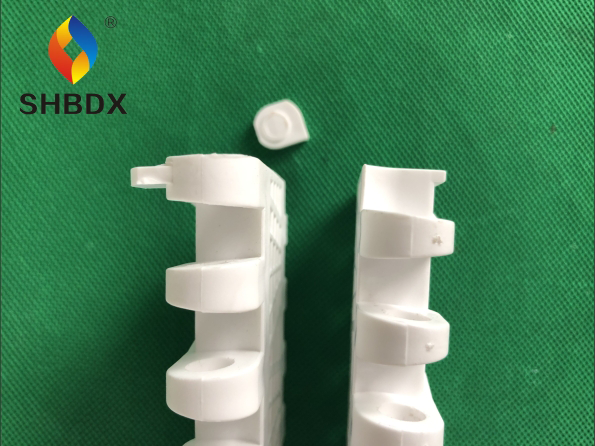

OPB Reinforced Flush Grid Modular Belt

Name: OPB Reinforced Flush Grid Modular Belt
Brand: Veybelt
SKU: VL-OPB-RF

50.8 mm pitch opb reinforced flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Higher-load open-grid conveyingCase and crate handlingLogistics sorting linesWashdown lines with heavier products

$NaN

SKUVL-OPB-RF

Lead Time10-20 days

Product Description

Overview

Case handling, crates, sorting lines: when the load on an open-grid belt goes up, this is the OPB version to look at. The OPB Reinforced Flush Grid Modular Belt keeps the 50.8 mm pitch but adds rib reinforcement under the grid, trading some open area (14.5%) for higher load capacity. Injection molded from PP / PE and brick-layed with hinge rods, it runs straight, drives positively on sprockets and can be built to almost any width and length.

Technical Specifications

Series	OPB
Product Type	OPB Reinforced Flush Grid Modular Belt
Pitch	50.8 mm
Thickness	16 mm
Open Area	14.5%
Belt Strength	17,600 N/m (PP)
Material	PP / PE
Color	White, Natural, Blue, Grey
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Higher-load open-grid conveying
Case and crate handling
Logistics sorting lines
Washdown lines with heavier products

Features & Advantages

Rib-reinforced grid carries heavier products than a standard flush grid
Consistent module quality from dedicated, purpose-built injection tooling
Positive hinge drive on matching POM sprockets, so the belt can't slip
Local damage is fixed by replacing individual modules, not the belt
FDA / EU compliant food-grade PP/PE available

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the OPB Reinforced Flush Grid Modular Belt available in food-grade material?

Yes. It can be molded from PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations. Compliance certificates available with your order on request.

What are the MOQ and lead time?

Small trial orders are welcome and MOQ on standard items is negotiable. Count on 10-20 days production depending on quantity and color; standard items in stock ship sooner.

Which sprockets should I pair with this belt?

The matching OPB series POM sprockets. Multiple teeth counts and bore sizes are available, so send us your shaft size and we'll recommend the exact sprocket.
