Product Story
966 Series Flat Top Modular Belt
25.4 mm pitch 966 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview

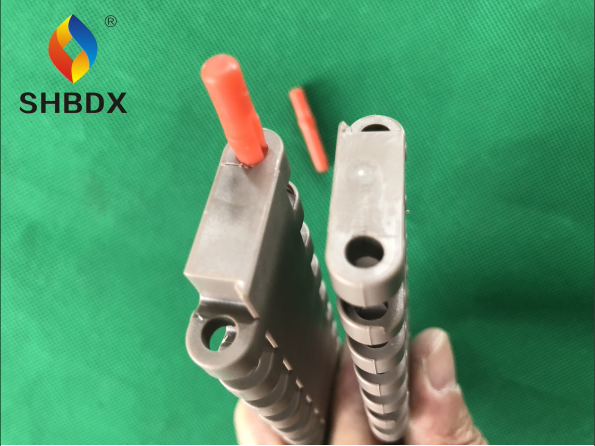

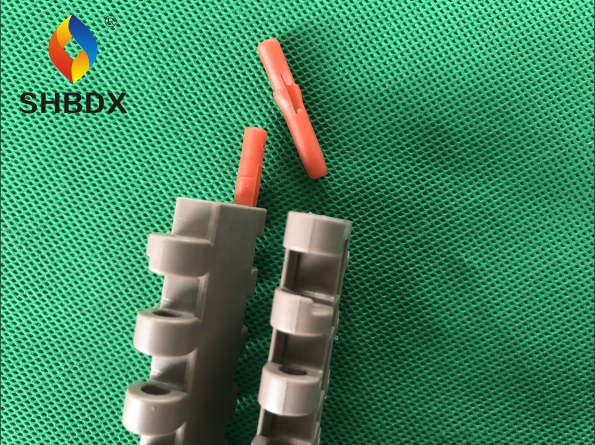

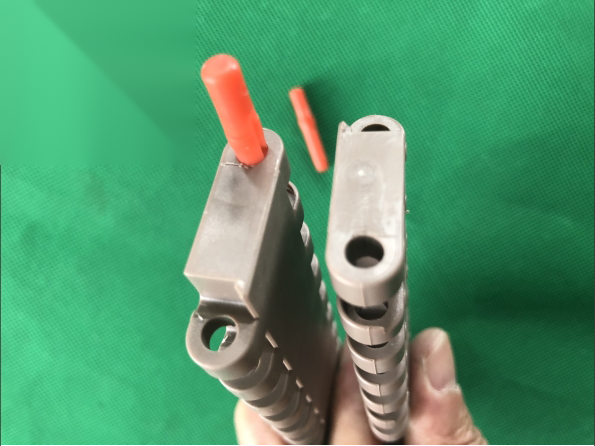

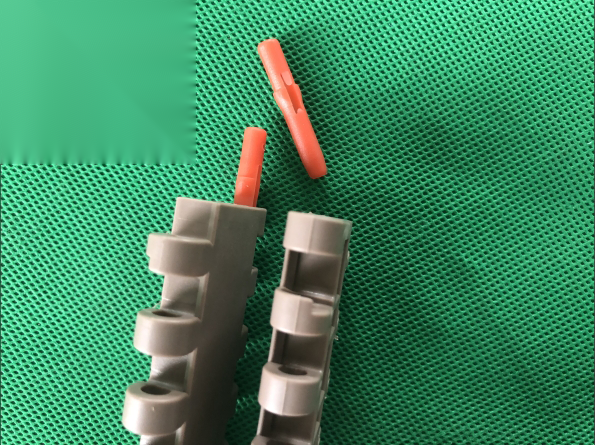

At 25.4 mm pitch with 0% open area, the 966 Series Flat Top Modular Belt gives you a fully closed, smooth conveying surface. Modules are injection molded in PP / POM and joined with hinge rods in a brick-lay pattern, which is what gives the belt its lateral strength. Length changes are simple: add or remove rows.

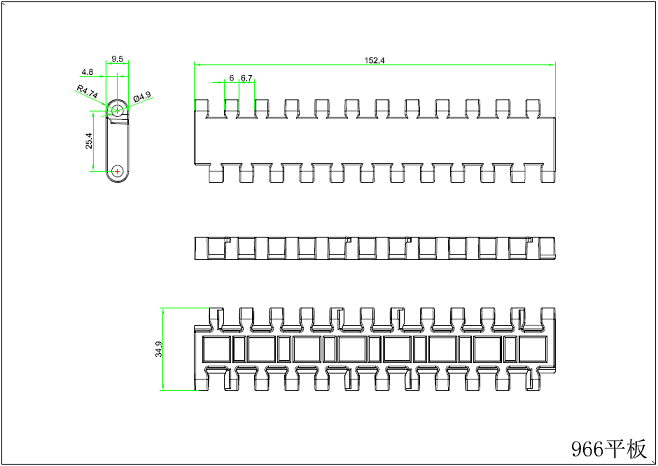

Technical Specifications
| Series | 966 |
| Product Type | 966 Series Flat Top Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 26,800 N/m (POM) |
| Thickness | 9.5 mm |
| Open Area | 0% |
| Material | PP / POM |
| Color | Brown, Natural, Blue |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Bottling and beverage filling lines
- Packaged food conveying
- Cartons, trays and packaged goods handling
- General factory transport lines
Features & Advantages
- Molded on purpose-developed injection tooling, so module dimensions stay tight.
- Sprocket-driven. No slippage, no mistracking.
- When a module gets damaged, you swap that module, not the whole belt.
- Food-grade materials meeting FDA / EU food-contact requirements are available.
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the 966 Series Flat Top Modular Belt available in food-grade material?
Yes. Standard modules are molded from PP/PE resins (POM where applicable) that meet FDA and EU food-contact regulations. We can include material compliance certificates with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
The matching 966 series POM sprockets. They come in several teeth counts and bore sizes; send us your shaft size and we'll recommend the exact one.
