OPB Flush Grid Modular Belt
50.8 mm pitch opb flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview

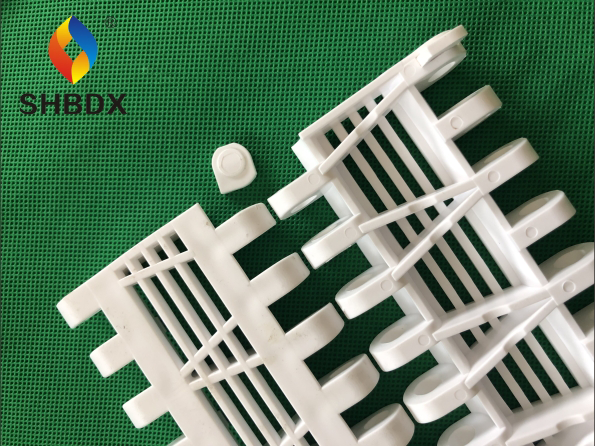

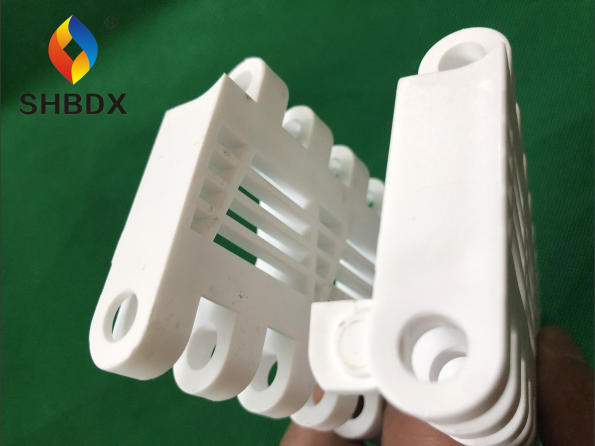

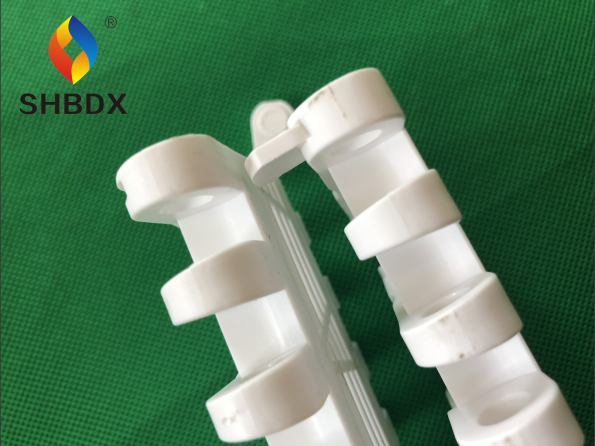

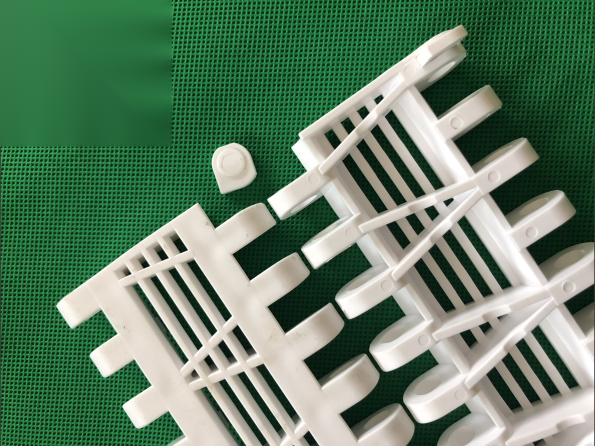

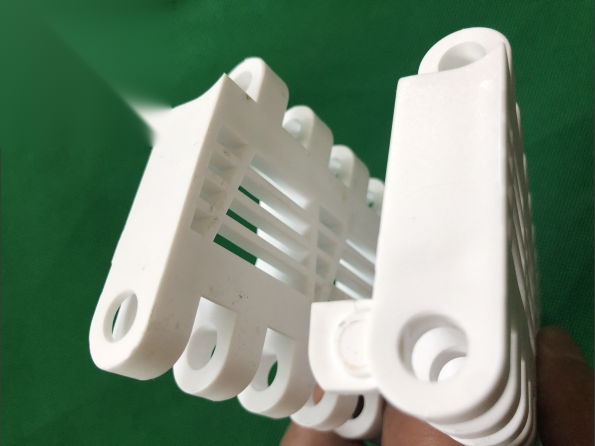

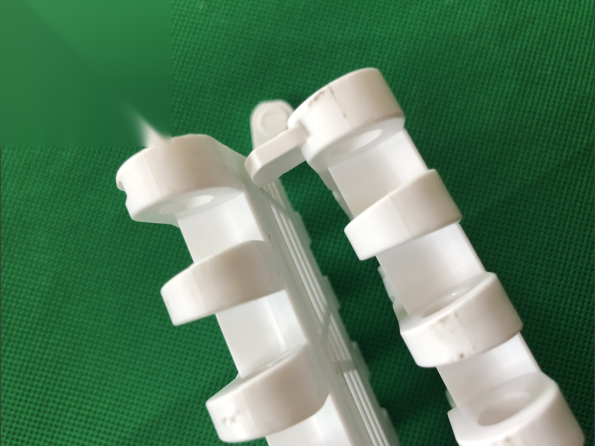

The OPB Flush Grid Modular Belt is a 50.8 mm pitch belt with a 20% open-grid surface, which is why it ends up on washdown, cooling and draining sections: water and air pass straight through the belt. Modules are injection molded from PP / PE and connected with hinge rods in a brick-lay pattern for lateral strength, and belt length is adjusted by simply adding or removing rows.
Technical Specifications
| Series | OPB |
| Product Type | OPB Flush Grid Modular Belt |

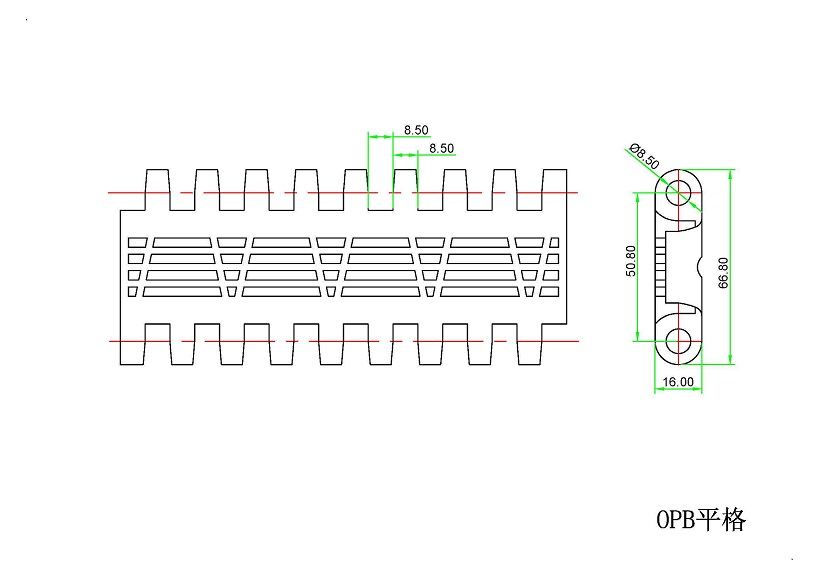

| Pitch | 50.8 mm |
| Thickness | 16 mm |
| Open Area | 20% |
| Belt Strength | 17,600 N/m (PP) |
| Material | PP / PE |
| Color | White, Natural, Blue, Grey |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Made on dedicated injection molding lines with full dimensional inspection
- Runs on molded POM sprockets. No slip, no tracking drift
- Module-level repair keeps both spare cost and downtime low
- FDA / EU compliant food-grade options for hygienic lines
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the OPB Flush Grid Modular Belt available in food-grade material?
Yes. Food-grade PP/PE (and POM where applicable) compliant with FDA and EU regulations is available, and material compliance certificates can be provided with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items and we're happy to run small trial orders. Production is typically 10-20 days depending on quantity and color; in-stock standard items go out faster.
Which sprockets should I pair with this belt?
Use the matching OPB series POM sprockets, available in several teeth counts and bore sizes. Let us know your shaft size and we'll spec the sprocket for you.
