900 Series Raised Rib Modular Belt
27.2 mm pitch 900 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

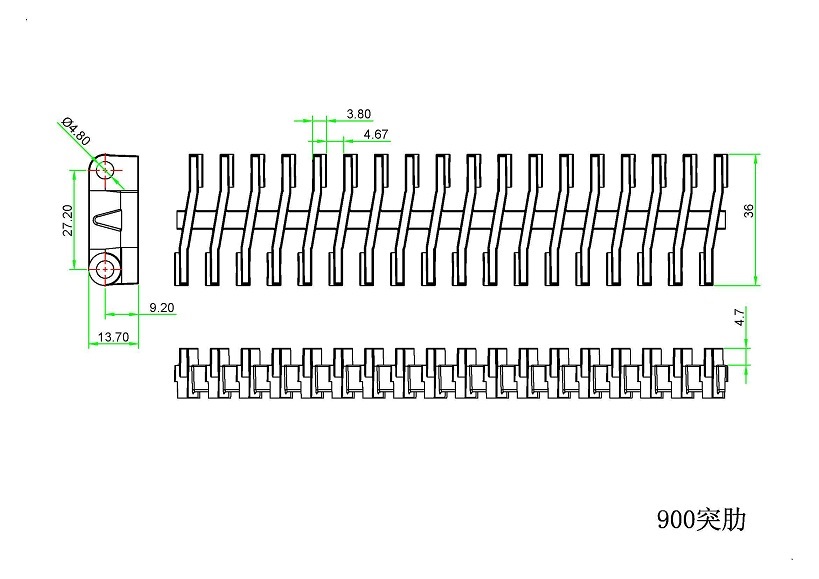

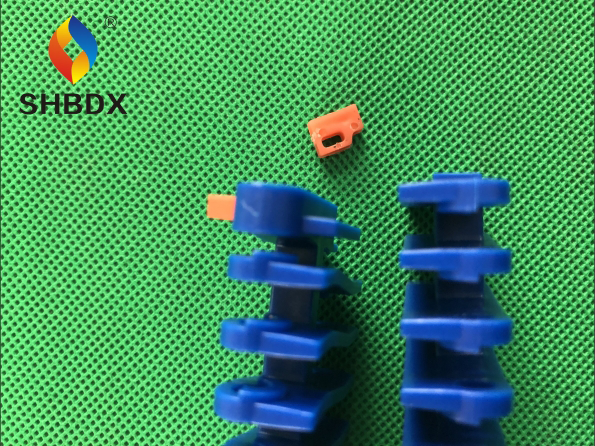

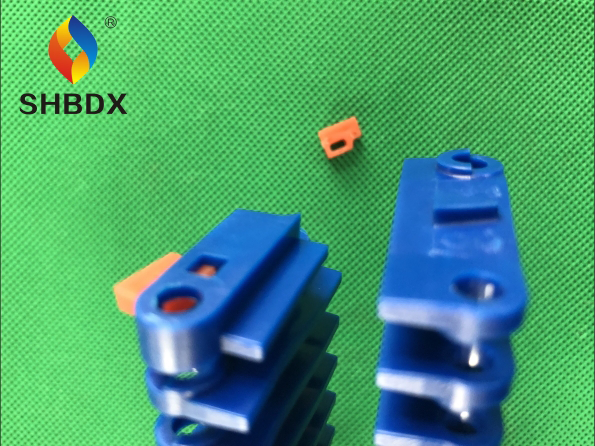

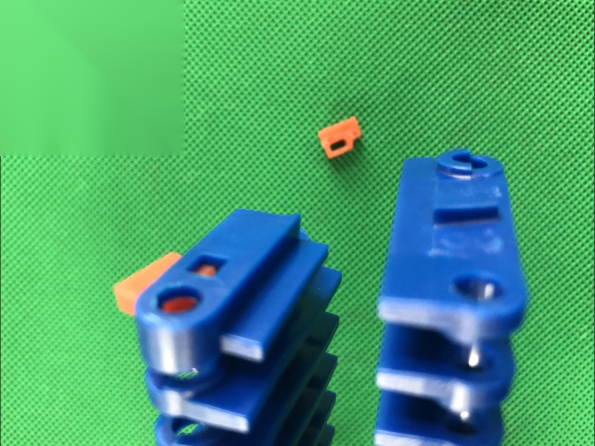

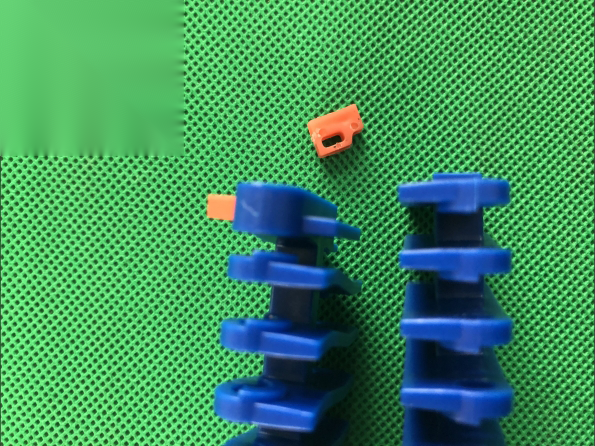

The 900 Series Raised Rib Modular Belt is a 27.2 mm pitch plastic modular belt with raised ribs that accept finger transfer plates for tight product transfer. Typical duty is baking and cooling lines, single-line bottle and can transport, and freezing tunnel infeed and outfeed, where small or unstable product has to cross between conveyors. Modules are injection molded from PP / POM / PE and joined with hinge rods in a brick-lay pattern; length adjusts by adding or removing rows.
Technical Specifications
| Series | 900 |
| Product Type | 900 Series Raised Rib Modular Belt |
| Pitch | 27.2 mm |
| Belt Strength | 17,500 N/m (PP) / 40,300 N/m (POM) |
| Thickness | 13.7 mm |
| Open Area | 31.7% |
| Material | PP / POM / PE |
| Color | Natural, Grey, Blue, Brown |
| Belt Width | Custom widths available on request |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Baking and cooling lines with tight transfer
- Small and unstable product conveying
- Bottle and can single-line transport
- Freezing tunnel infeed/outfeed
Features & Advantages
- Made on dedicated injection molding lines, with every batch dimensionally inspected.
- Molded POM sprockets drive it accurately, with no slip.
- Maintenance happens at module level, which keeps replacement cost and downtime down.
- FDA / EU compliant food-grade material options for hygienic applications.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 900 Series Raised Rib Modular Belt available in food-grade material?
Yes. Molded from PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations. Compliance certificates available with your order.
What are the MOQ and lead time?
Small trial orders are welcome and MOQ is negotiable for standard items. Production lead time runs 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Use the matching 900 series POM sprockets, available in multiple teeth counts and bore sizes. Send your shaft size and we'll recommend the exact sprocket.
