976 Series Nub Top Modular Belt
25.4 mm pitch 976 series nub top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview

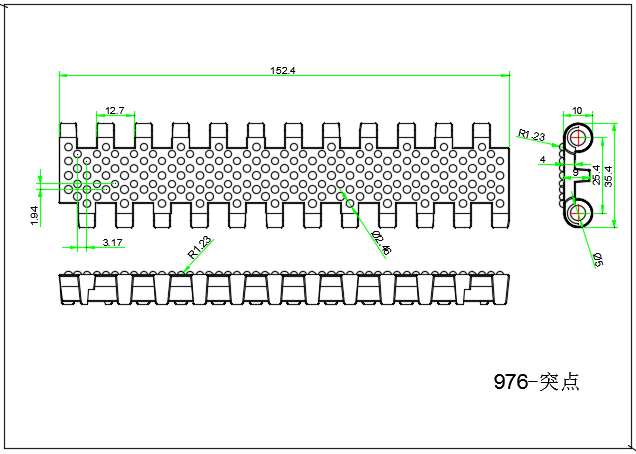

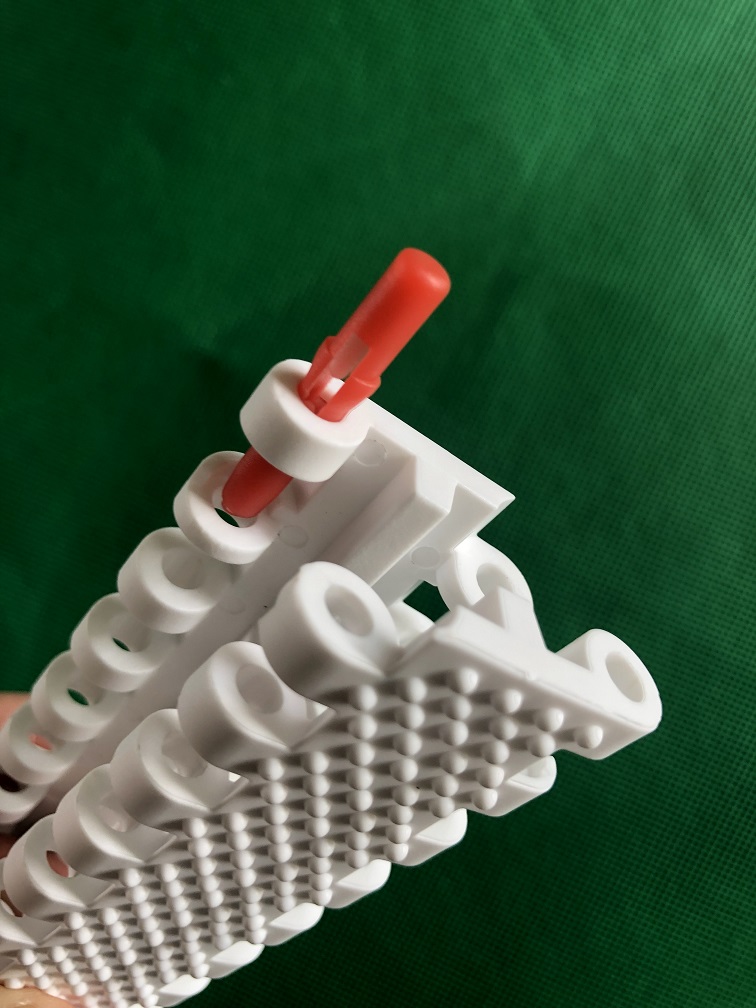

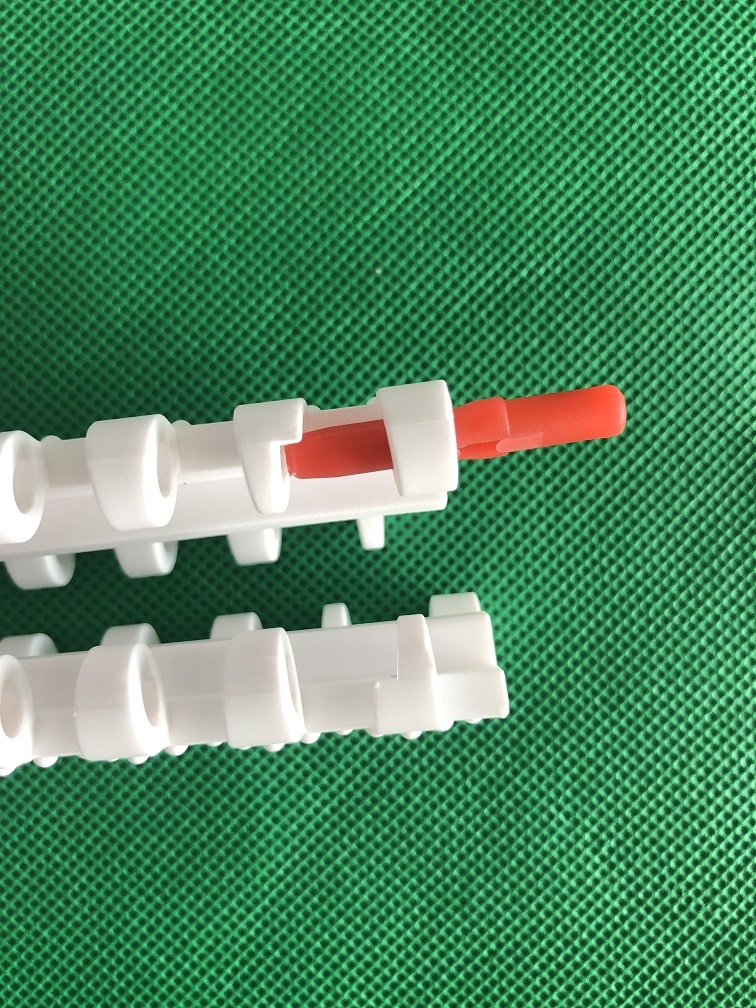

At 25.4 mm pitch with an 11.2 mm overall thickness, the 976 Series Nub Top Modular Belt carries product on a nub-textured surface that keeps contact area to a minimum. That matters for sticky or wet goods like raw meat and dough, which tend to grab a smooth belt. Modules are injection molded from PP / PE, brick-layed with hinge rods, and the belt drives positively on sprockets in almost any width and length.
Technical Specifications
| Series | 976 |
| Product Type | 976 Series Nub Top Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 14,650 N/m (PP) |
| Thickness | 11.2 mm |
| Open Area | 0% |
| Material | PP / PE |
| Color | White, Natural, Blue, Grey |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Sticky or wet product conveying
- Raw meat and dough handling
- Products requiring minimal surface contact
- Frozen food lines
Features & Advantages
- Consistent module quality from dedicated, purpose-built injection tooling.
- Hinge-driven positive engagement with matching POM sprockets. No slippage.
- Repairable at module level, so a damaged section doesn't take the whole belt out of service.
- Food-grade PP/PE materials compliant with FDA and EU food-contact regulations are available.
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the 976 Series Nub Top Modular Belt available in food-grade material?
Yes. The modules are PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations. Compliance certificates can be provided with your order.
What are the MOQ and lead time?
Small trial orders are welcome; MOQ is negotiable for standard items. Typical production lead time is 10-20 days depending on quantity and color, and in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Use the matching 976 series POM sprockets, available in several teeth counts and bore sizes. Give us your shaft size and we'll recommend the exact sprocket.
