5935 Series Flat Top Modular Belt
19.05 mm pitch 5935 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

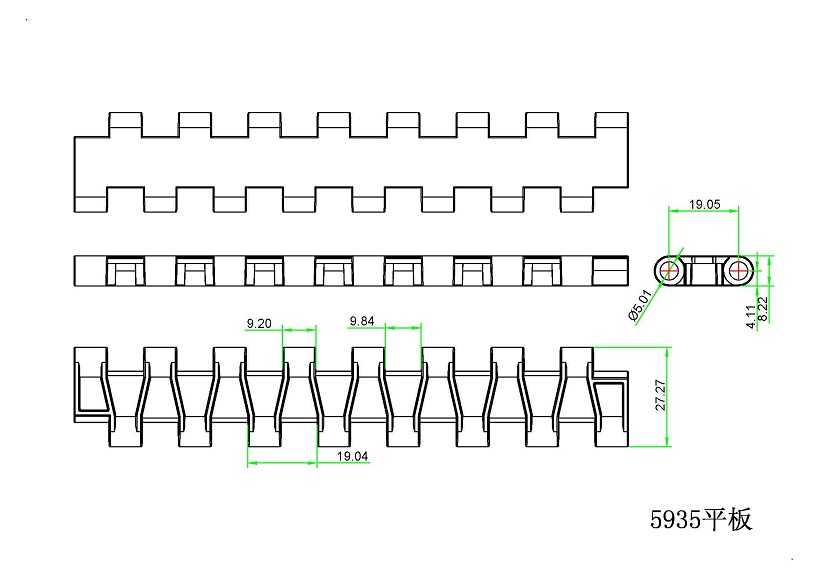

Bottling lines and packaged goods transport are where the 5935 Series Flat Top Modular Belt does most of its work: the flat top surface is completely closed and smooth, so containers ride stable and nothing drops through. Pitch is 19.05 mm, and the modules are injection molded from PP / POM / PE, brick-layed with hinge rods, so the belt runs straight and drives positively on sprockets. Width and length are built to order.
Technical Specifications
| Series | 5935 |
| Product Type | 5935 Series Flat Top Modular Belt |
| Pitch | 19.05 mm |
| Belt Strength | 11,800 N/m (PP) / 20,700 N/m (POM) |
| Thickness | 8.2 mm |
| Open Area | 0% |
| Material | PP / POM / PE |
| Color | Natural, Brown, Blue |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Bottling and beverage filling lines
- Packaged food conveying
- Cartons, trays and packaged goods handling
- General factory transport lines
Features & Advantages
- Molded on dedicated injection lines, with full dimensional inspection.
- Runs on molded POM sprockets. Positive drive, no slip.
- Damaged rows? Swap those modules, not the whole belt. Keeps spare cost and downtime low.
- FDA / EU compliant food-grade material available for hygienic lines.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 5935 Series Flat Top Modular Belt available in food-grade material?
Yes. We mold this belt from PP/PE (and POM where applicable) resins that comply with FDA and EU food-contact regulations, and we can include material compliance certificates with your order. Just mention it's for a food line when you enquire.
What are the MOQ and lead time?
MOQ is negotiable for standard items, and small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; standard items that are in stock ship faster.
Which sprockets should I pair with this belt?
The matching 5935 series POM sprockets. They come in several teeth counts and bore sizes; send us your shaft size and we'll pick the right one.
