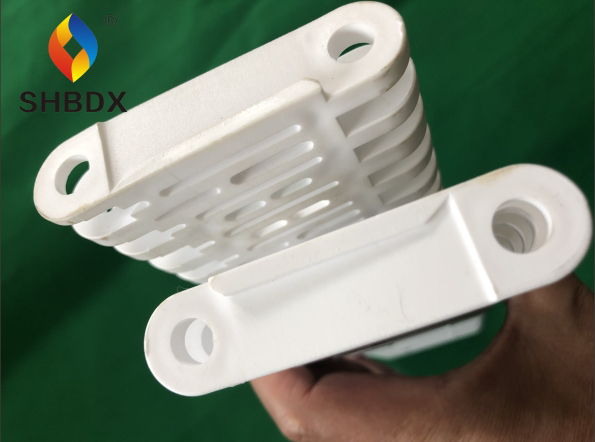

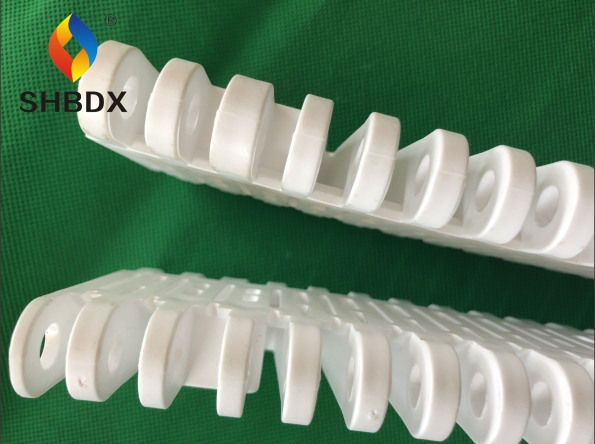

5997 Series Flush Grid Modular Belt
57.15 mm pitch 5997 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

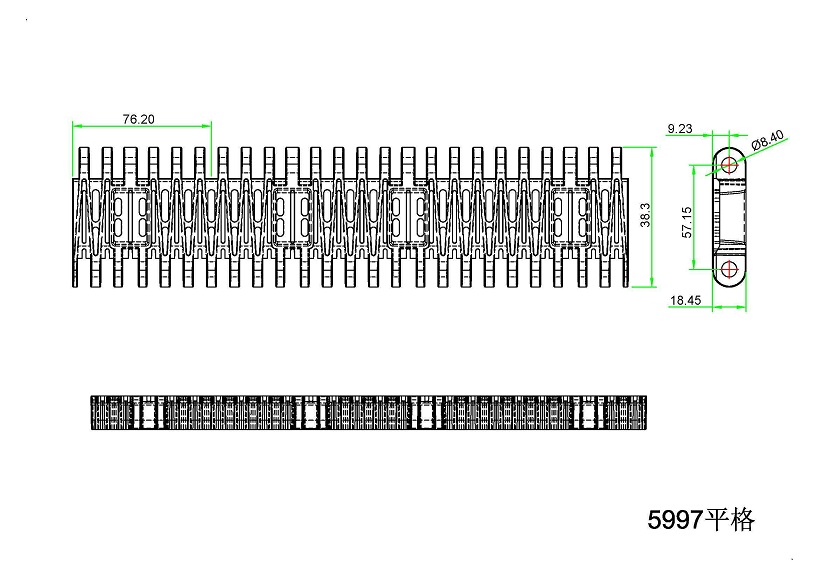

The 5997 Series Flush Grid Modular Belt is the heavier open-grid option in this range: 57.15 mm pitch, 18.45 mm thick, 23.8% open area, molded from PP and rated at 47,500 N/m. Hinge rods connect the modules in a brick-lay pattern, and belt length is adjusted by adding or removing rows. Standard widths start at 304.8 mm in 76.2 mm increments.
Technical Specifications
| Series | 5997 |
| Product Type | 5997 Series Flush Grid Modular Belt |
| Pitch | 57.15 mm |
| Thickness | 18.45 mm |
| Open Area | 23.8% |
| Belt Strength | 47,500 N/m (PP) |
| Standard Width | From 304.8 mm, increments of 76.2 mm |
| Material | PP |
| Color | Brown |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Produced on dedicated injection molding lines with full dimensional inspection.
- Driven by molded POM sprockets, so operation stays accurate with no slip.
- Module-level repair. Replacement cost and downtime stay low.
- FDA / EU compliant food-grade material available for hygienic applications.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 5997 Series Flush Grid Modular Belt available in food-grade material?
Yes. The modules are molded from resins compliant with FDA and EU food-contact regulations (PP for this series), and we can provide material compliance certificates with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, small trial orders included. Typical production lead time is 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Pair it with the matching 5997 series POM sprockets, available in multiple teeth counts and bore sizes. Tell us your shaft size and we'll recommend the exact sprocket.
