OPB Large Open Grid Modular Belt

Name: OPB Large Open Grid Modular Belt
Brand: Veybelt
SKU: VL-OPB-LO

50.8 mm pitch opb large open grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Heavy washdown applicationsAir-drying and cooling tunnelsWaste-water screeningAgricultural product handling

$NaN

SKUVL-OPB-LO

Lead Time10-20 days

Product Description

Overview

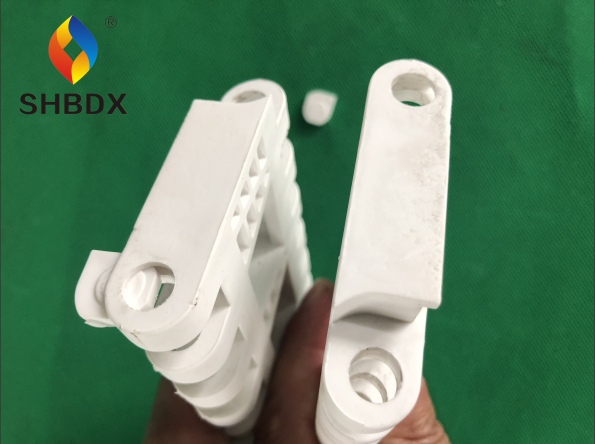

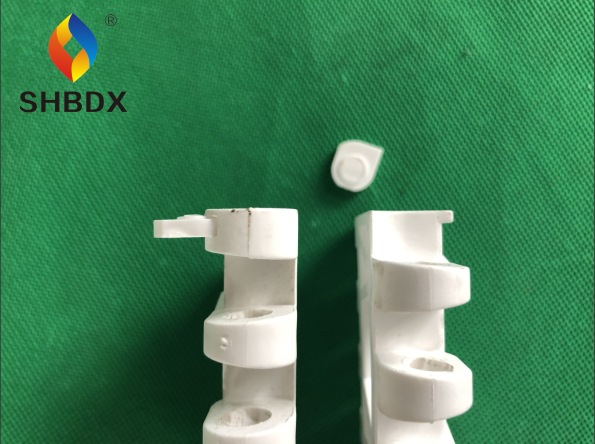

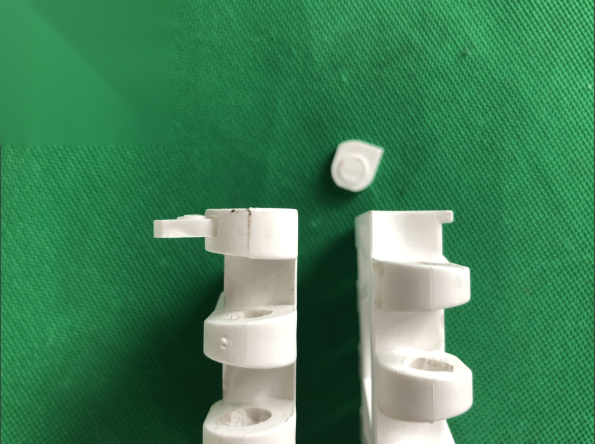

The OPB Large Open Grid Modular Belt is the most open belt in the OPB range: 50.8 mm pitch with 29% open area, built for jobs where drainage and airflow matter more than surface coverage, such as heavy washdown, drying tunnels and waste-water screening. Modules are injection molded from PP / PE and connected with hinge rods in a brick-lay pattern, so the belt keeps its lateral strength and length changes are just a matter of adding or removing rows.

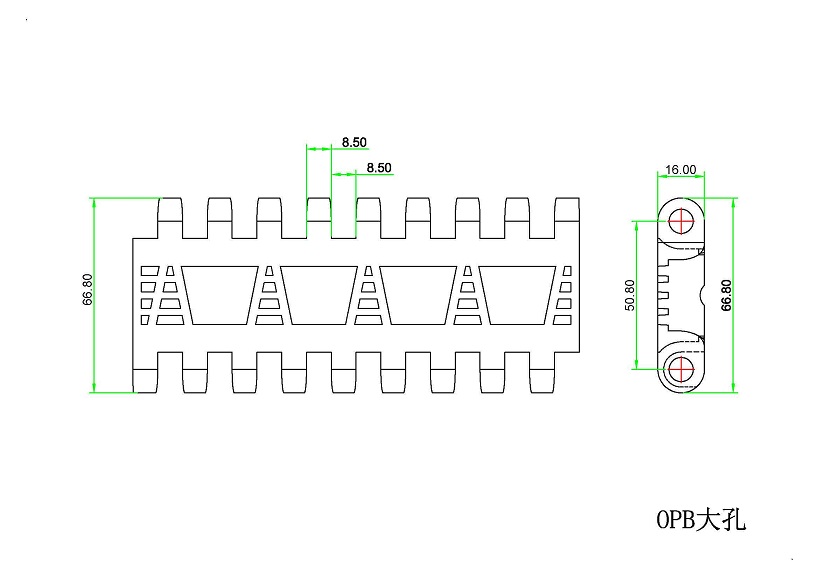

Technical Specifications

Series	OPB
Product Type	OPB Large Open Grid Modular Belt
Pitch	50.8 mm
Thickness	16 mm
Open Area	29%
Belt Strength	17,600 N/m (PP)
Material	PP / PE
Color	White, Natural, Blue, Grey
Belt Width	Custom widths available on request
Food Contact	FDA / EU compliant food-grade material available

Applications

Heavy washdown applications
Air-drying and cooling tunnels
Waste-water screening
Agricultural product handling

Features & Advantages

29% open area for maximum drainage and air circulation
Purpose-developed injection molds keep dimensional tolerance tight
Positive sprocket drive: no belt slippage, no mistracking
Swap individual modules to repair instead of replacing the whole belt
Food-grade materials meeting FDA / EU food-contact requirements available

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the OPB Large Open Grid Modular Belt available in food-grade material?

Yes. Molded from FDA and EU compliant PP/PE resins (POM where applicable) on request, with material compliance certificates available for your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items; small trial orders are no problem. Production lead time is typically 10-20 days depending on quantity and color, less if the standard item is in stock.

Which sprockets should I pair with this belt?

Match it with the OPB series POM sprockets, which come in multiple teeth counts and bore sizes. Give us your shaft size and we'll recommend the right one.
