Product Story
976 Series Perforated Flat Top Modular Belt
25.4 mm pitch 976 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

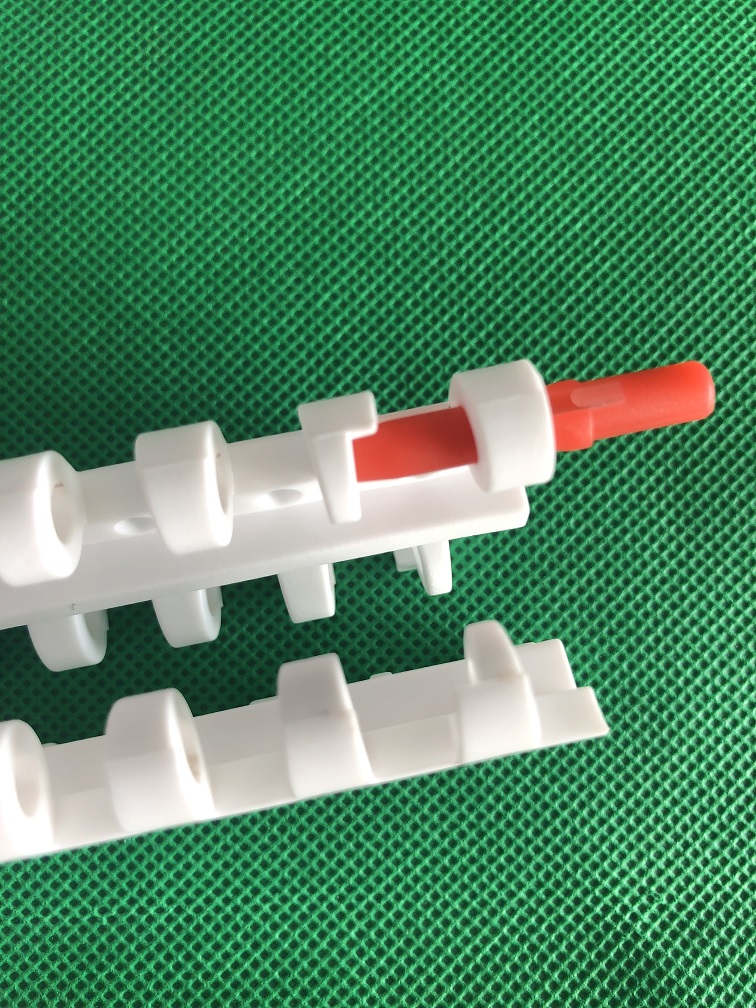

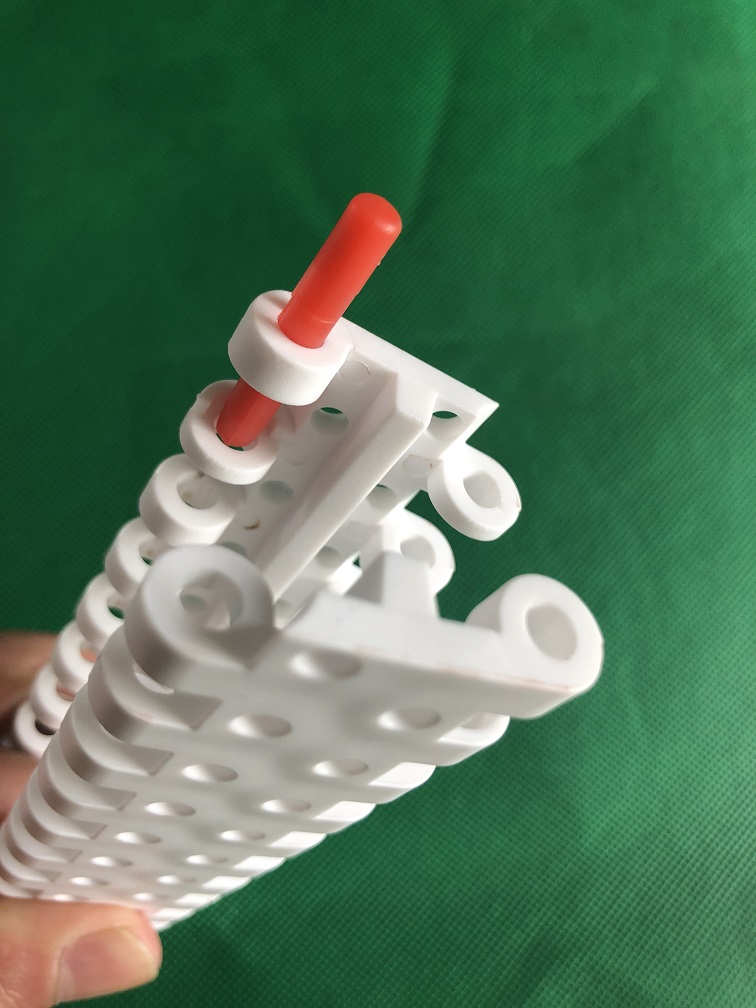

If water needs to leave the belt but the product still needs a flat carrying surface, round perforations are the usual answer. The 976 Series Perforated Flat Top Modular Belt is a 25.4 mm pitch belt with a perforated flat surface (7.7% open area), injection molded from PP / PE and hinge-rod connected in a brick-lay pattern for lateral strength and simple length changes.
Technical Specifications

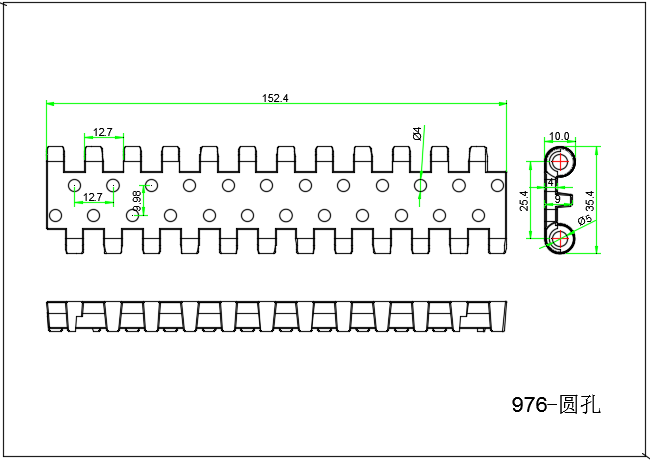

| Series | 976 |
| Product Type | 976 Series Perforated Flat Top Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 14,650 N/m (PP) |
| Thickness | 10 mm |
| Open Area | 7.7% |
| Material | PP / PE |
| Color | White, Natural, Blue, Grey |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Product washing and rinsing lines
- Blanching and draining applications
- Fresh produce handling
- Canning lines
Features & Advantages
- Built on dedicated injection molding lines with full dimensional inspection.
- Driven by molded POM sprockets. Accurate, slip-free.
- Module-level maintenance: replace only the damaged rows, keep cost and downtime low.
- FDA / EU compliant food-grade materials available for washing and food lines.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 976 Series Perforated Flat Top Modular Belt available in food-grade material?
Yes. Modules are molded from PP/PE resins (POM where applicable) meeting FDA and EU food-contact regulations, and we can send material compliance certificates with the order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so small trial orders are fine. Production usually runs 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
The matching 976 series POM sprockets. Multiple teeth counts and bore sizes are available; tell us your shaft size and we'll pick the right one.
