Product Story

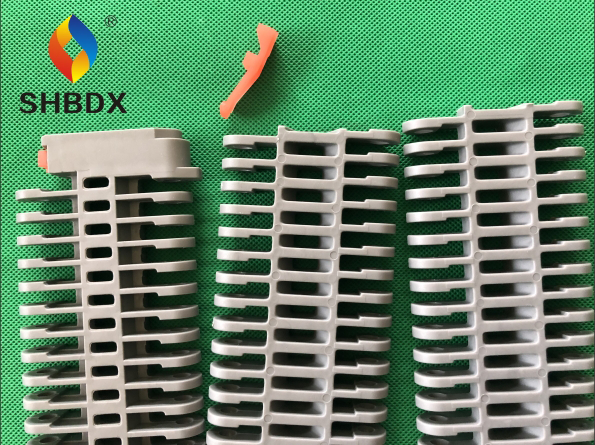

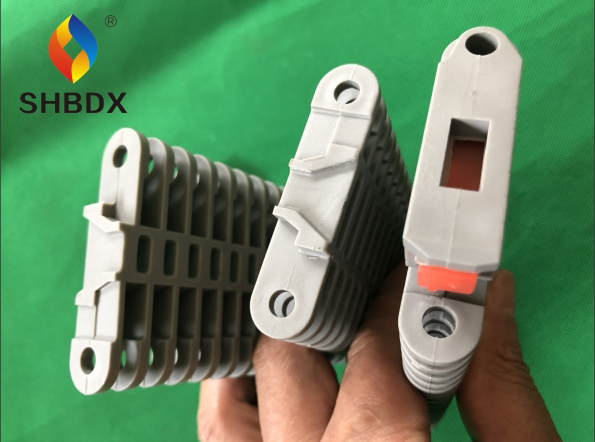

400 Series Flush Grid Modular Belt

Name: 400 Series Flush Grid Modular Belt
Brand: Veybelt
SKU: VL-400-FG

50.8 mm pitch 400 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Washdown food processing linesCooling and draining sectionsFruit and vegetable washing linesSeafood and meat processing

$NaN

SKUVL-400-FG

Lead Time10-20 days

Product Description

Overview

Most washdown lines that run a 50.8 mm pitch belt use a flush grid surface for one reason: water has to get off the belt fast. The 400 Series Flush Grid Modular Belt is a plastic modular conveyor belt with 29.4% open area for drainage and airflow, injection molded from PP / PE and brick-layed with hinge rods. It drives positively on sprockets, tracks straight, and can be built to almost any width and length.

Technical Specifications

Series	400
Product Type	400 Series Flush Grid Modular Belt
Pitch	50.8 mm
Belt Strength	39,200 N/m (PP)
Thickness	15.9 mm
Open Area	29.4%
Material	PP / PE
Color	Grey, Natural, Brown
Standard Width	Multiples of 50.8 mm
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Washdown food processing lines
Cooling and draining sections
Fruit and vegetable washing lines
Seafood and meat processing

Features & Advantages

Molded on dedicated, purpose-built tooling, so module dimensions stay consistent batch after batch.
Positive hinge drive on matching POM sprockets. No slippage.
A damaged section doesn't mean a new belt: swap the affected modules and run again.
For food lines, PP/PE grades compliant with FDA and EU food-contact regulations are available.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 400 Series Flush Grid Modular Belt available in food-grade material?

Yes. It's molded from PP/PE resins (POM where applicable) that comply with FDA and EU food-contact regulations. We can include material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, so a small trial order is fine. Production lead time is typically 10-20 days depending on quantity and color; standard items in stock ship faster.

Which sprockets should I pair with this belt?

The matching 400 series POM sprockets. They come in several teeth counts and bore sizes; tell us your shaft size and we'll recommend the exact one.
