OPB Flat Top Modular Belt

Name: OPB Flat Top Modular Belt
Brand: Veybelt
SKU: VL-OPB-FT

50.8 mm pitch opb flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-OPB-FT

Lead Time10-20 days

Product Description

Overview

The OPB Flat Top Modular Belt is a 50.8 mm pitch belt with a completely closed, smooth surface. Modules are injection molded from PP / PE and joined with hinge rods in a brick-lay pattern, which is what gives the belt its lateral strength. Need it longer or shorter? Add or remove rows of modules and you're done.

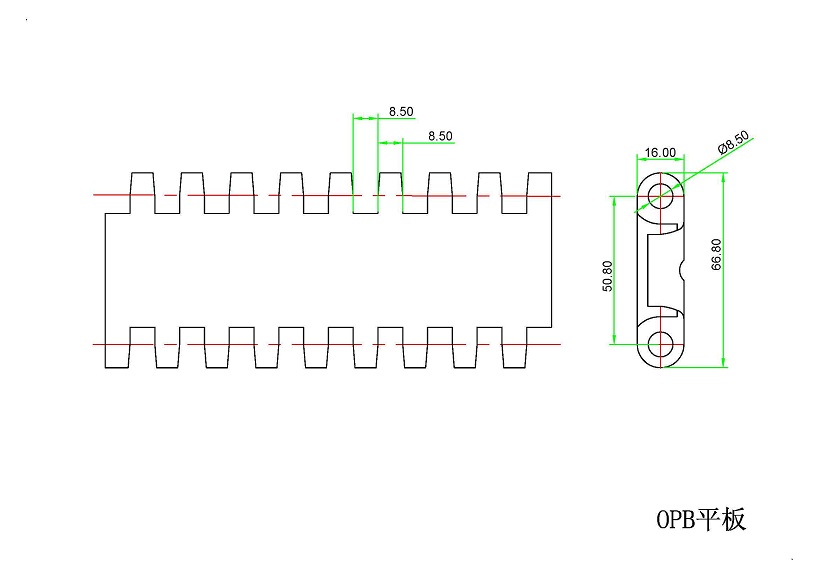

Technical Specifications

Series	OPB
Product Type	OPB Flat Top Modular Belt
Pitch	50.8 mm
Thickness	16 mm
Open Area	0%
Belt Strength	17,600 N/m (PP)
Standard Width	Multiples of 152.4 mm (increments of 16.9 mm)
Material	PP / PE
Color	White, Natural, Blue, Grey
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Molded on dedicated tooling, so module dimensions stay consistent from batch to batch
Drives on matching POM sprockets. Positive hinge engagement means no slippage
A damaged section doesn't mean a new belt: swap the affected modules and keep running
Food-grade PP/PE compliant with FDA and EU food-contact regulations is available

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the OPB Flat Top Modular Belt available in food-grade material?

Yes. The belt can be molded from PP/PE resins (and POM where applicable) that comply with FDA and EU food-contact regulations. We can include the material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable on standard items, and small trial orders are fine. Production usually takes 10-20 days depending on quantity and color. If it's a standard item we have in stock, it ships faster.

Which sprockets should I pair with this belt?

The matching OPB series POM sprockets, which come in several teeth counts and bore sizes. Send us your shaft size and we'll pick the right one for you.
