986 Series Flat Top Modular Belt

Name: 986 Series Flat Top Modular Belt
Brand: Veybelt
SKU: VL-986-FT

25.4 mm pitch 986 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-986-FT

Lead Time10-20 days

Product Description

Overview

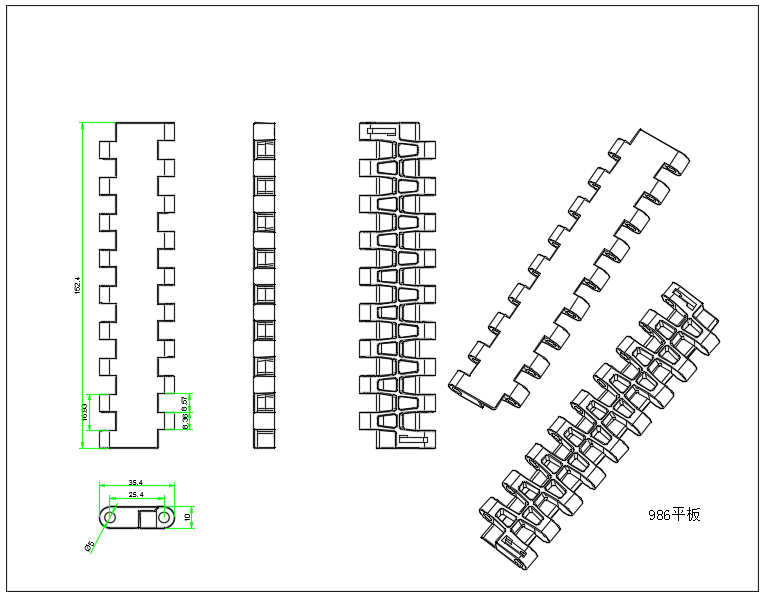

The 986 Series Flat Top Modular Belt is a 25.4 mm pitch belt with a completely closed, smooth conveying surface, molded in POM / PP. Rated belt strength is 30,851 N/m in POM against 18,056 N/m in PP, so the POM build handles the heavier pull. Modules connect with hinge rods in a brick-lay pattern, which gives high lateral strength and lets you adjust length by adding or removing rows.

Technical Specifications

Series	986
Product Type	986 Series Flat Top Modular Belt
Pitch	25.4 mm
Belt Strength	18,056 N/m (PP) / 30,851 N/m (POM)
Thickness	10 mm
Open Area	0%
Material	POM / PP
Color	Natural, Blue, Brown
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Purpose-developed injection molds hold module dimensions to tight tolerance.
Sprocket-driven, so slippage and mistracking are off the table.
Repair by swapping modules. The rest of the belt stays in service.
Available in food-grade materials meeting FDA / EU food-contact requirements.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 986 Series Flat Top Modular Belt available in food-grade material?

Yes. Modules are molded from PP/PE resins (POM where applicable) that comply with FDA and EU food-contact regulations. We can provide material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, so small trial orders are fine. Production lead time is typically 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

The matching 986 series POM sprockets, available in multiple teeth counts and bore sizes. Send us your shaft size and we'll recommend the exact sprocket.
