966 Series Flush Grid Modular Belt
25.4 mm pitch 966 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

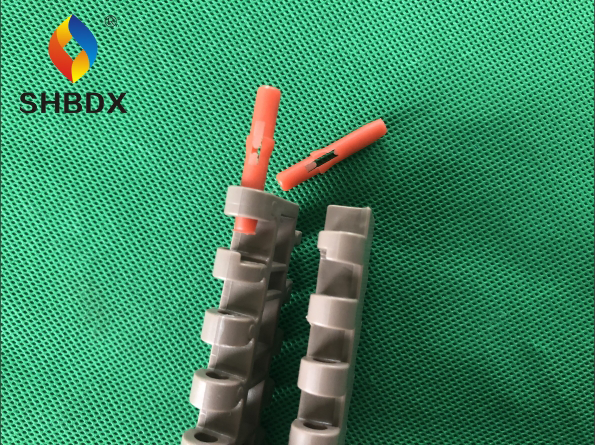

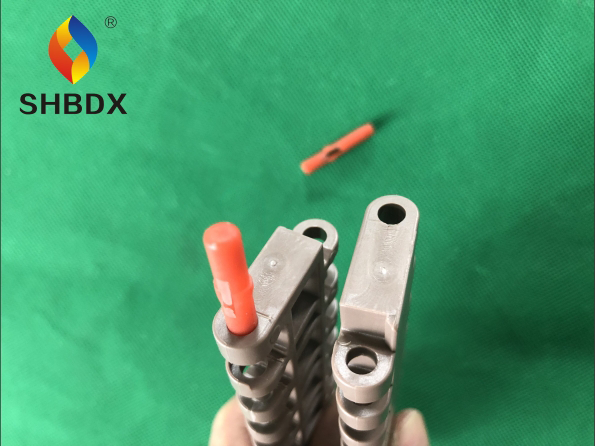

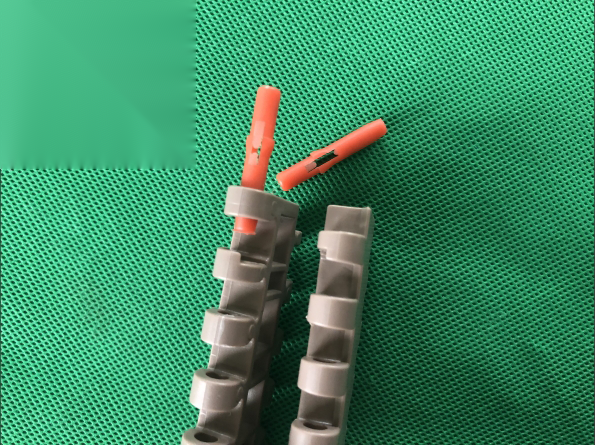

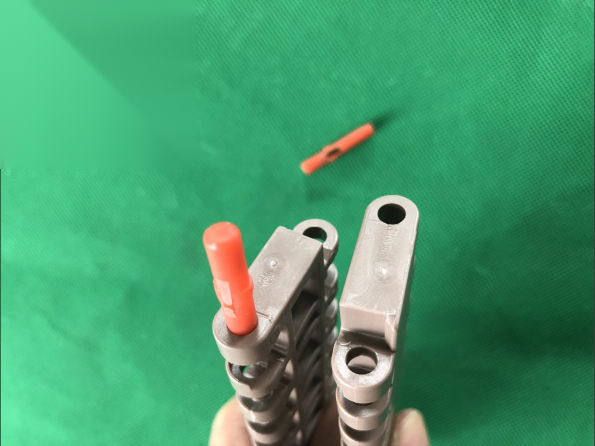

The 966 Series Flush Grid Modular Belt is a 25.4 mm pitch plastic modular belt with an open-grid surface (25.3% open area) that lets wash water drain and air move through the belt. Modules are injection molded in PP / POM and brick-layed with hinge rods, so it runs straight, drives positively on sprockets, and can be built to almost any width and length.

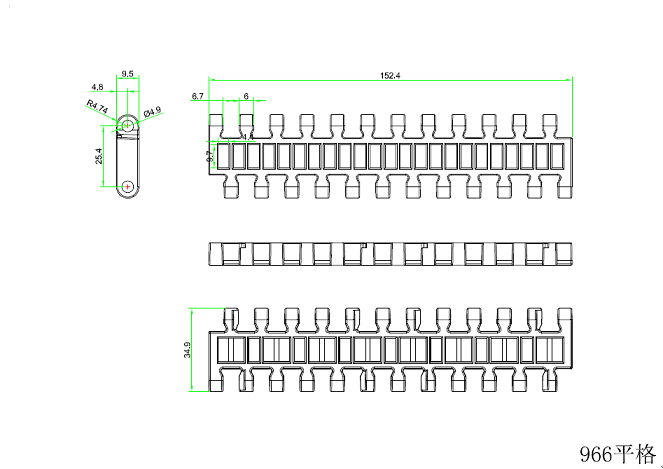

Technical Specifications
| Series | 966 |
| Product Type | 966 Series Flush Grid Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 26,800 N/m (POM) |
| Thickness | 9.5 mm |
| Open Area | 25.3% |
| Material | PP / POM |
| Color | Brown, Natural, Blue |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Made on dedicated injection molding lines with full dimensional inspection.
- Molded POM sprockets drive the belt directly, so it stays accurate and slip-free.
- Repairs happen at module level, which keeps replacement cost and downtime low.
- FDA / EU compliant food-grade material options for hygienic lines.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 966 Series Flush Grid Modular Belt available in food-grade material?
Yes. This belt is molded from PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations, and we can supply material compliance certificates with the order.
What are the MOQ and lead time?
Small trial orders are welcome; MOQ is negotiable for standard items. Typical production lead time is 10-20 days depending on quantity and color. In-stock standard items ship faster.
Which sprockets should I pair with this belt?
Use the matching 966 series POM sprockets, available in multiple teeth counts and bore sizes. Tell us your shaft size and we'll pick the right one.
