Product Story

1100 Series Flat Top Modular Belt

Name: 1100 Series Flat Top Modular Belt
Brand: Veybelt
SKU: VL-1100-FT

15.24 mm pitch 1100 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-1100-FT

Lead Time10-20 days

Product Description

Overview

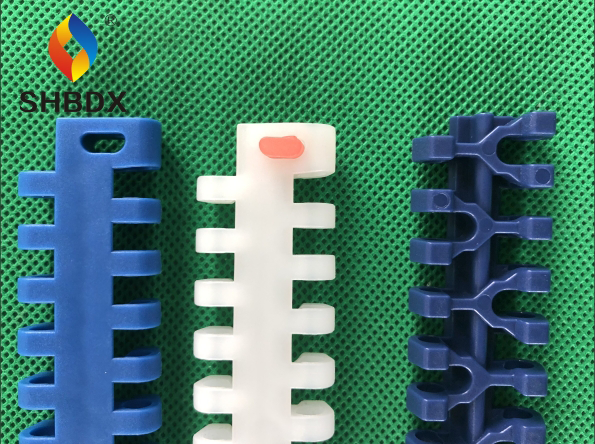

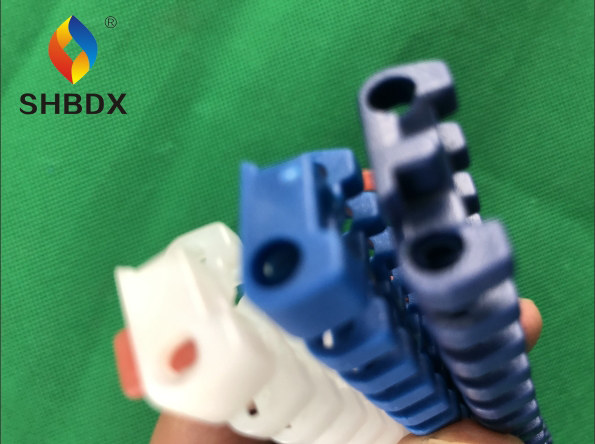

The 1100 Series Flat Top Modular Belt is a straight-running belt with a 15.24 mm pitch and a completely closed, smooth conveying surface. Modules are injection molded from POM / PP and brick-layed with hinge rods; the belt drives positively on sprockets, runs straight, and can be built to almost any width and length. Typical duty is bottling, packaged food and general factory transport.

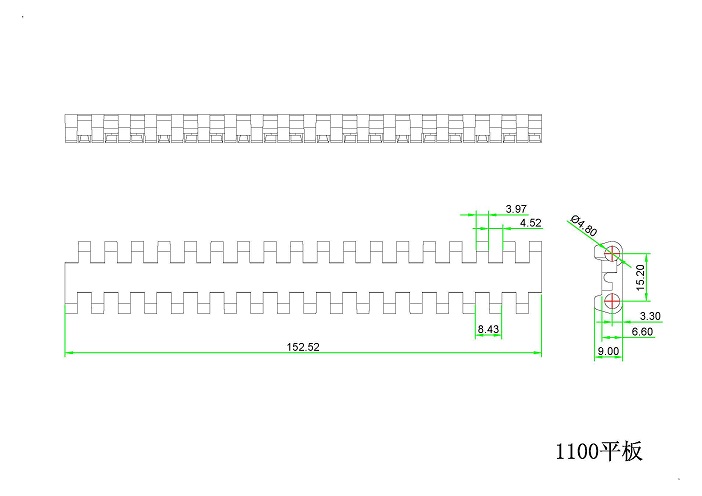

Technical Specifications

Series	1100
Product Type	1100 Series Flat Top Modular Belt
Pitch	15.24 mm
Belt Strength	12,300 N/m (PP) / 31,100 N/m (POM)
Thickness	9 mm
Open Area	0%
Material	POM / PP
Color	Natural, Blue
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Purpose-developed injection molds hold tight dimensional tolerance.
Positive sprocket drive, so no slippage and no mistracking.
Repairs mean swapping modules, not replacing the whole belt.
Food-grade materials meeting FDA / EU food-contact requirements available.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 1100 Series Flat Top Modular Belt available in food-grade material?

Yes. Standard modules use PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations, and we can provide material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items; small trial orders are fine. Count on 10-20 days production depending on quantity and color, faster if the item is in stock.

Which sprockets should I pair with this belt?

The matching 1100 series POM sprockets. Several tooth counts and bore sizes are available; give us your shaft size and we'll recommend the exact sprocket.
