OPB Perforated Flat Top Modular Belt
50.8 mm pitch opb perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview

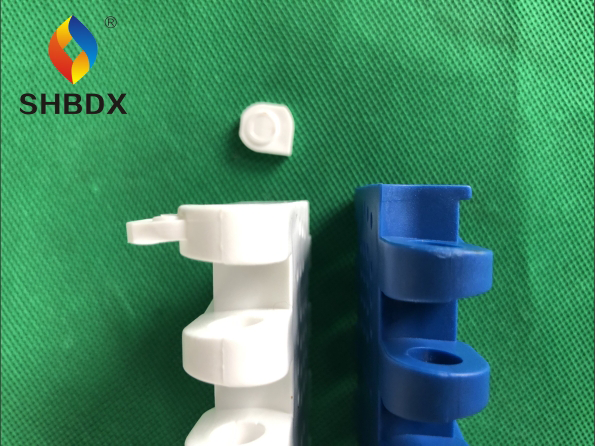

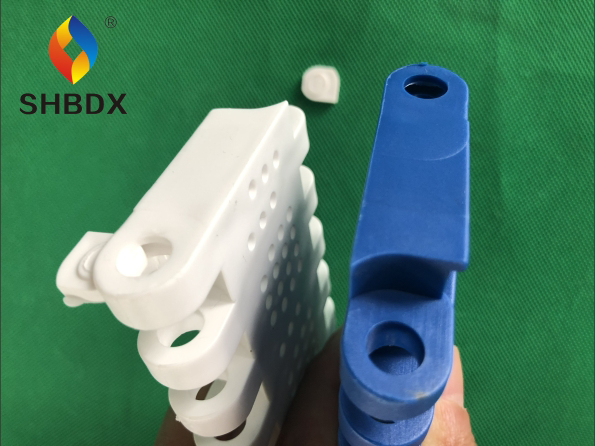

Washing, blanching and canning lines usually want a flat surface that still lets water through, and that's exactly what the OPB Perforated Flat Top Modular Belt is: a 50.8 mm pitch belt with round perforations for drainage in an otherwise flat top. It's injection molded from PP / PE and brick-layed with hinge rods, so it tracks straight, drives positively on sprockets and can be built to almost any width and length.
Technical Specifications
| Series | OPB |
| Product Type | OPB Perforated Flat Top Modular Belt |

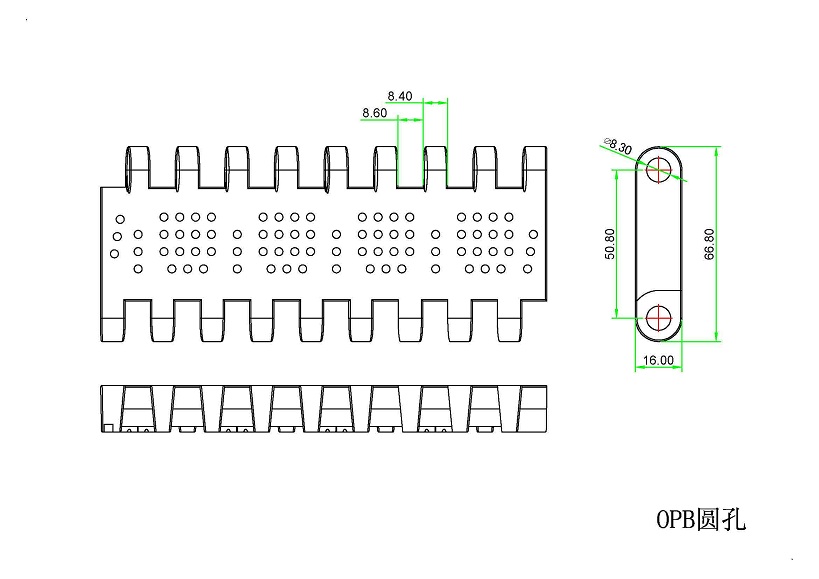

| Pitch | 50.8 mm |
| Thickness | 16 mm |
| Belt Strength | 17,600 N/m (PP) |
| Material | PP / PE |
| Color | White, Natural, Blue, Grey |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Product washing and rinsing lines
- Blanching and draining applications
- Fresh produce handling
- Canning lines
Features & Advantages
- Purpose-developed injection molds hold tight dimensional tolerance
- Sprocket-driven, so there's no slippage or mistracking to chase
- Repairs are module by module: no need to scrap the whole belt over local damage
- Food-grade material meeting FDA / EU food-contact requirements is available
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the OPB Perforated Flat Top Modular Belt available in food-grade material?
Yes. It can be molded from FDA and EU compliant PP/PE resins (POM where applicable), and we can send material compliance certificates with the order.
What are the MOQ and lead time?
Small trial orders are welcome; MOQ on standard items is negotiable. Typical production lead time is 10-20 days depending on quantity and color, faster if we have the standard item in stock.
Which sprockets should I pair with this belt?
Pair it with the matching OPB series POM sprockets. They come in multiple teeth counts and bore sizes, so tell us your shaft size and we'll recommend the exact one.
