4809 Series Raised Rib Modular Belt
57.15 mm pitch 4809 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

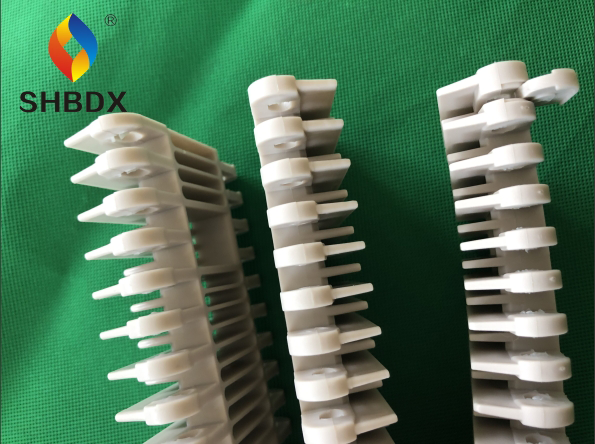

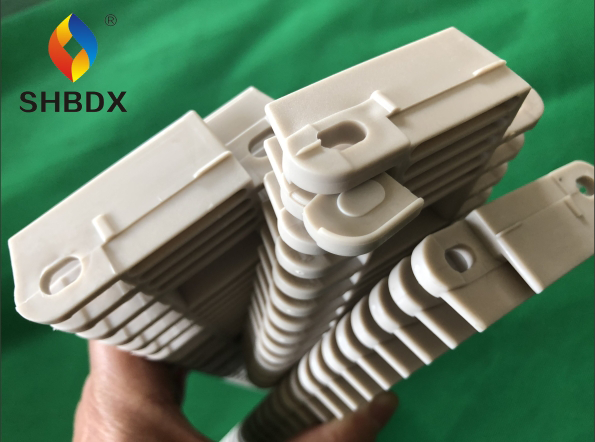

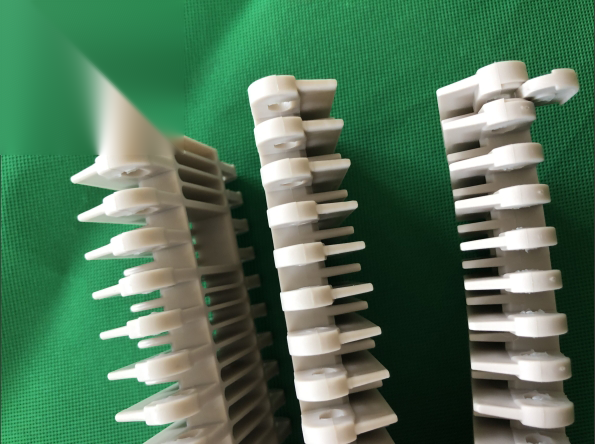

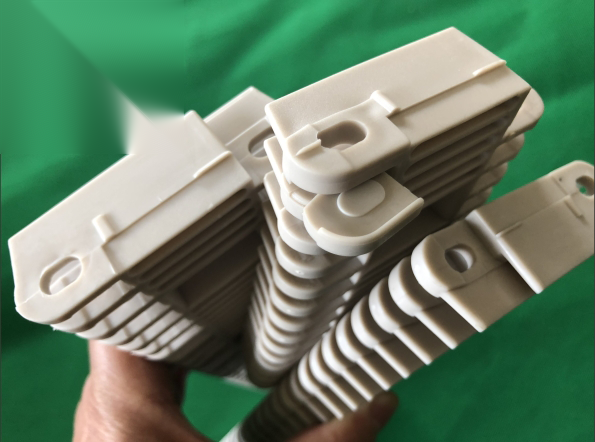

Small products tip and jam where one conveyor hands off to the next. The 4809 Series Raised Rib Modular Belt is the raised rib answer at 57.15 mm pitch: the ribs accept finger transfer plates for tight product transfer, and the PP belt is rated at 38,900 N/m. Standard widths start at 304.8 mm in 76.2 mm increments; modules connect with hinge rods in a brick-lay pattern, so length adjusts by adding or removing rows.
Technical Specifications
| Series | 4809 |
| Product Type | 4809 Series Raised Rib Modular Belt |

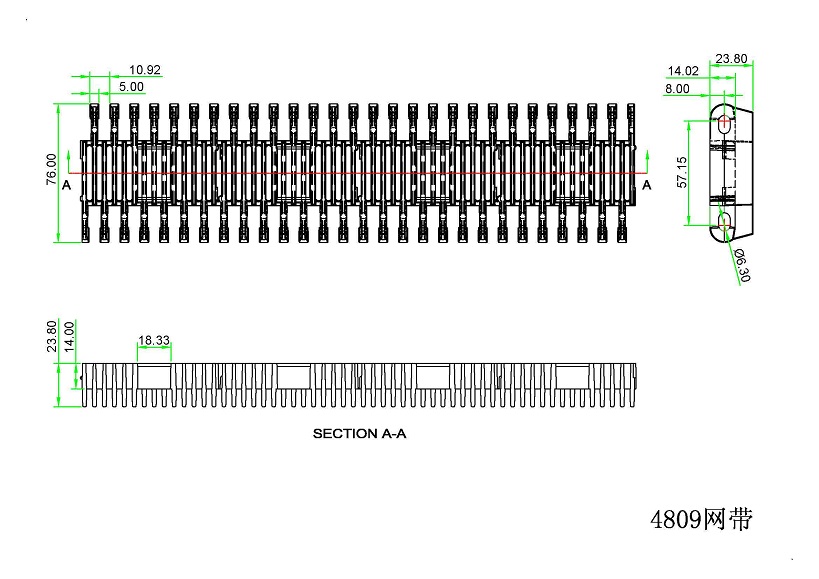

| Pitch | 57.15 mm |
| Thickness | 23.8 mm |
| Open Area | 24.2% |
| Belt Strength | 38,900 N/m (PP) |
| Standard Width | From 304.8 mm, increments of 76.2 mm |
| Material | PP |
| Color | Grey, Natural, Brown |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Baking and cooling lines with tight transfer
- Small and unstable product conveying
- Bottle and can single-line transport
- Freezing tunnel infeed/outfeed
Features & Advantages
- Purpose-developed injection molds, tight dimensional tolerance.
- Sprocket-driven: no belt slippage, no mistracking.
- Modular build means repair by swapping modules instead of replacing the whole belt.
- Food-grade material meeting FDA / EU food-contact requirements available.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 4809 Series Raised Rib Modular Belt available in food-grade material?
Yes. It's molded from PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations. Certificates of material compliance can go out with your order.
What are the MOQ and lead time?
Small trial orders are welcome; MOQ is negotiable for standard items. Typical production lead time is 10-20 days depending on quantity and color, and in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Use the matching 4809 series POM sprockets, in multiple tooth counts and bore sizes. Send us your shaft size and we'll pick the right one.
