Product Story

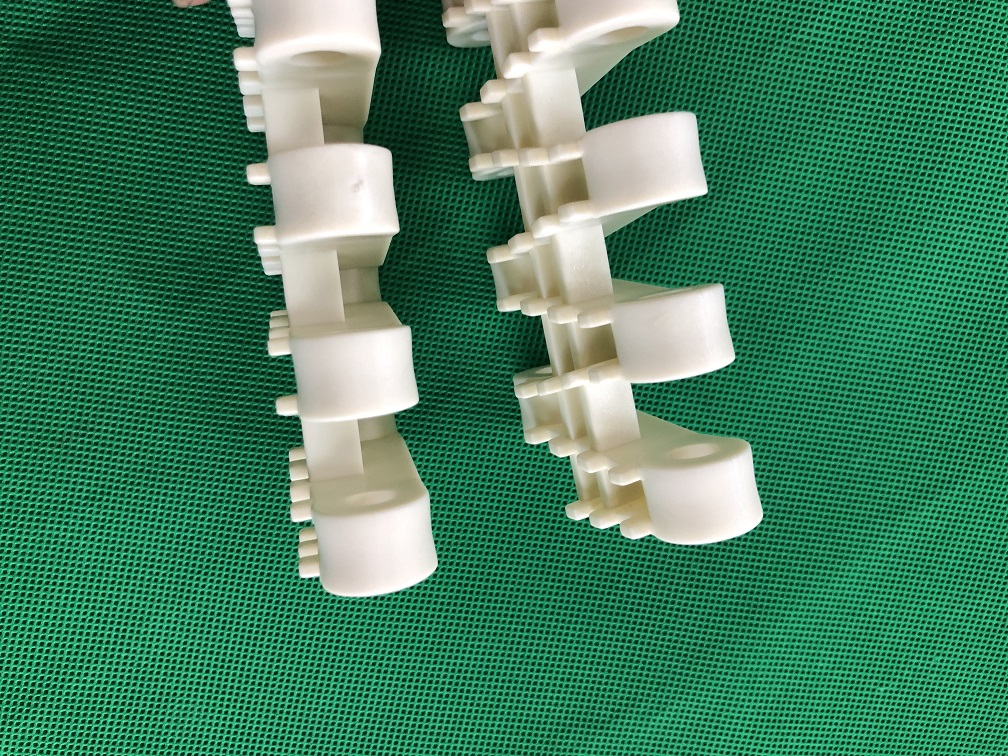

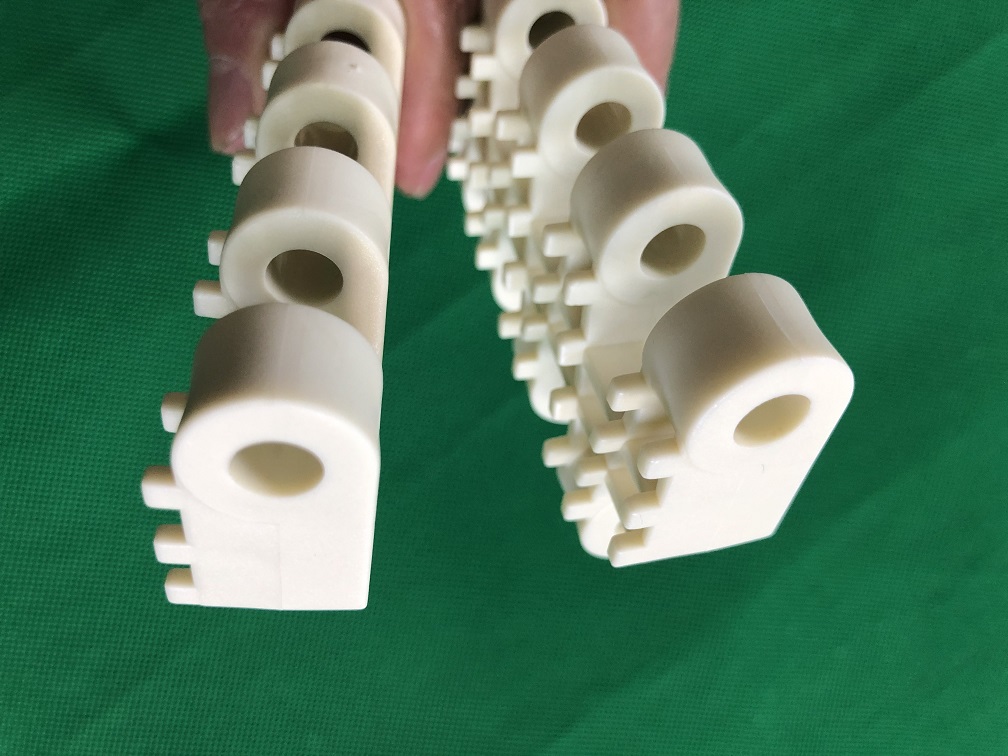

936 Series Nub Top Modular Belt

Name: 936 Series Nub Top Modular Belt
Brand: Veybelt
SKU: VL-936-NT

38.1 mm pitch 936 series nub top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Sticky or wet product conveyingRaw meat and dough handlingProducts requiring minimal surface contactFrozen food lines

$NaN

SKUVL-936-NT

Lead Time10-20 days

Product Description

Overview

The 936 Series Nub Top Modular Belt is a 38.1 mm pitch belt with a nub-textured surface that keeps product contact area to a minimum, which is why it gets used for sticky or wet items like raw meat and dough. PP modules connect with hinge rods in a brick-lay pattern, giving high lateral strength; adjust belt length by adding or removing rows.

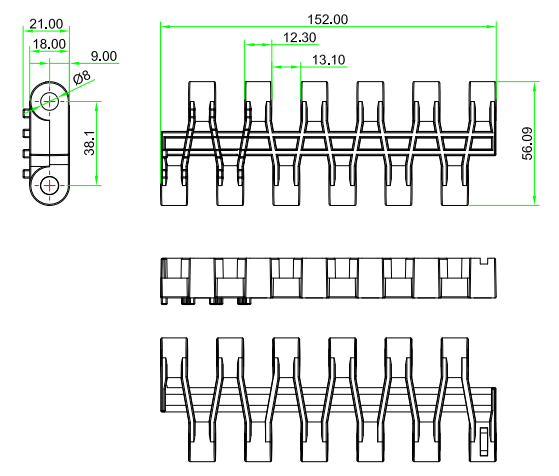

Technical Specifications

Series	936
Product Type	936 Series Nub Top Modular Belt
Pitch	38.1 mm
Belt Strength	33,000 N/m (PP)
Thickness	21 mm
Open Area	25%
Material	PP
Color	Beige
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Sticky or wet product conveying
Raw meat and dough handling
Products requiring minimal surface contact
Frozen food lines

Features & Advantages

Consistent module quality from dedicated, purpose-built tooling
Hinge-driven engagement with matching POM sprockets means no slippage
Replace single damaged modules instead of scrapping the belt
FDA and EU compliant food-grade PP/PE available

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 936 Series Nub Top Modular Belt available in food-grade material?

Yes. Standard modules are molded from PP/PE (POM where applicable) resins that comply with FDA and EU food-contact regulations. Compliance certificates can ship with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, so small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

The matching 936 series POM sprockets, available in multiple teeth counts and bore sizes. Tell us your shaft size and we'll pick the right one.
