Product Story

1000 Series Flat Top Modular Belt

Name: 1000 Series Flat Top Modular Belt
Brand: Veybelt
SKU: VL-1000-FT

25.4 mm pitch 1000 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-1000-FT

Lead Time10-20 days

Product Description

Overview

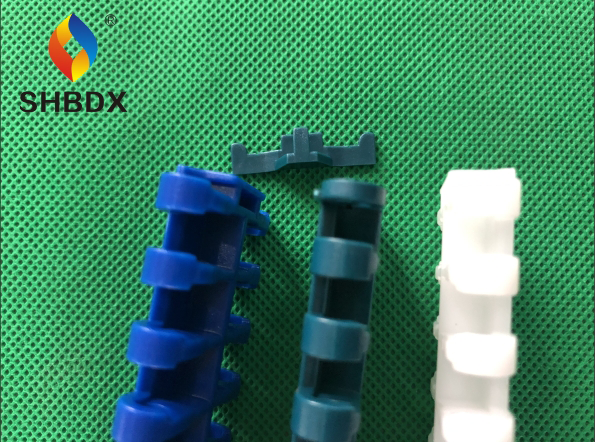

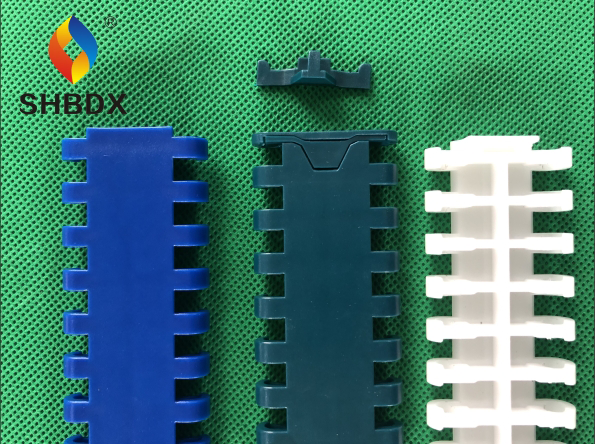

At 25.4 mm pitch with a completely closed, smooth surface, the 1000 Series Flat Top Modular Belt is the plain workhorse for straight-running transport. Modules are injection molded in PP / POM / PE and brick-layed with hinge rods, so the belt tracks straight, drives positively on sprockets, and can be assembled to almost any width and length. Nothing drips through the closed surface, which is why bottling and packaged-goods lines run it.

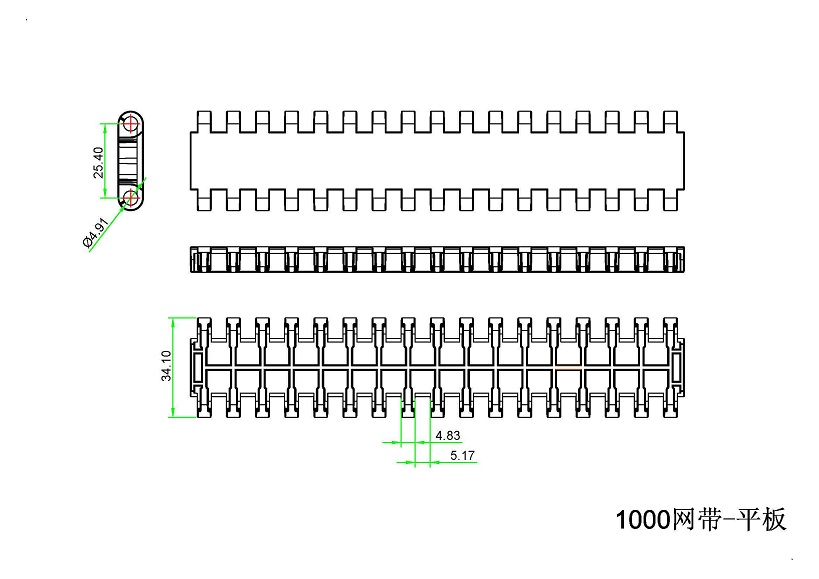

Technical Specifications

Series	1000
Product Type	1000 Series Flat Top Modular Belt
Pitch	25.4 mm
Belt Strength	16,700 N/m (PP) / 39,300 N/m (POM)
Thickness	8.7 mm
Open Area	0%
Material	PP / POM / PE
Color	Green, Natural, Blue
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Molded on dedicated injection lines, every module dimensionally inspected.
POM sprockets engage the hinge directly, so there is no slip to chase.
A damaged module is a module swap, not a new belt. Downtime stays short.
FDA / EU compliant food-grade material on request.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 1000 Series Flat Top Modular Belt available in food-grade material?

Yes. Standard modules are molded from PP/PE resins (POM where applicable) that comply with FDA and EU food-contact regulations. We can include material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, and small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

The matching 1000 series POM sprockets. They come in several tooth counts and bore sizes; send us your shaft size and we'll pick the right one.
