900 Series Flat Top Modular Belt
27.2 mm pitch 900 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

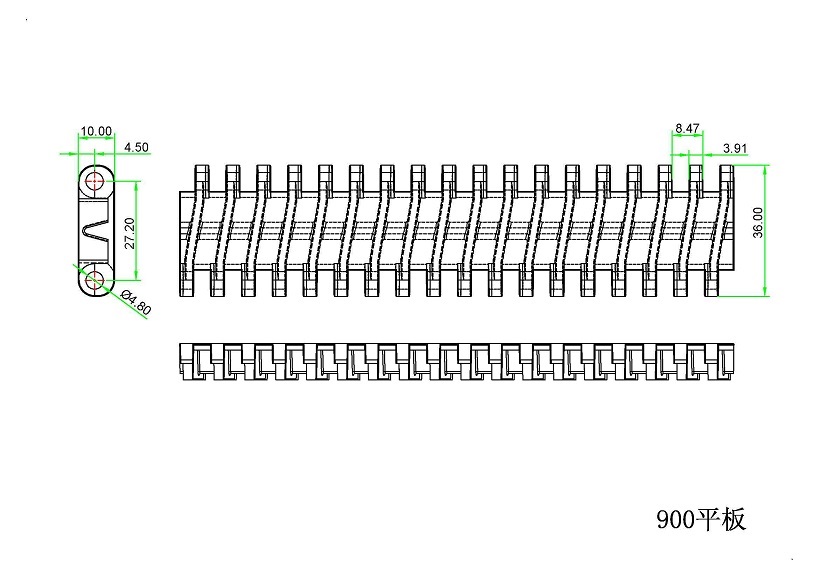

At 27.2 mm pitch with a completely closed, smooth surface, the 900 Series Flat Top Modular Belt is the general-purpose choice for bottling lines, packaged food and tray handling. It is injection molded from PP / POM / PE (17,500 N/m in PP, 40,300 N/m in POM), assembled brick-layed with hinge rods, and driven positively on sprockets, so it runs straight and can be built to almost any width and length.
Technical Specifications
| Series | 900 |
| Product Type | 900 Series Flat Top Modular Belt |
| Pitch | 27.2 mm |
| Belt Strength | 17,500 N/m (PP) / 40,300 N/m (POM) |
| Thickness | 10 mm |
| Open Area | 0% |
| Material | PP / POM / PE |
| Color | Natural, Grey, Blue, Brown |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Bottling and beverage filling lines
- Packaged food conveying
- Cartons, trays and packaged goods handling
- General factory transport lines
Features & Advantages
- Produced on dedicated injection molding lines with full dimensional inspection.
- Molded POM sprockets give accurate, slip-free drive.
- Worn or broken modules swap out individually, which keeps replacement cost and downtime low.
- FDA / EU compliant food-grade material options for hygienic lines.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 900 Series Flat Top Modular Belt available in food-grade material?
Yes. It's molded from PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations, and we can provide material compliance certificates with the order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so small trial orders are welcome. Production usually takes 10-20 days depending on quantity and color; if it's a standard item in stock, it ships faster.
Which sprockets should I pair with this belt?
Use the matching 900 series POM sprockets. Multiple teeth counts and bore sizes are available; tell us your shaft size and we'll recommend the exact sprocket.
