7705 Series Flat Top Modular Belt

Name: 7705 Series Flat Top Modular Belt
Brand: Veybelt
SKU: VL-7705-FT

25.4 mm pitch 7705 series flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Bottling and beverage filling linesPackaged food conveyingCartons, trays and packaged goods handlingGeneral factory transport lines

$NaN

SKUVL-7705-FT

Lead Time10-20 days

Product Description

Overview

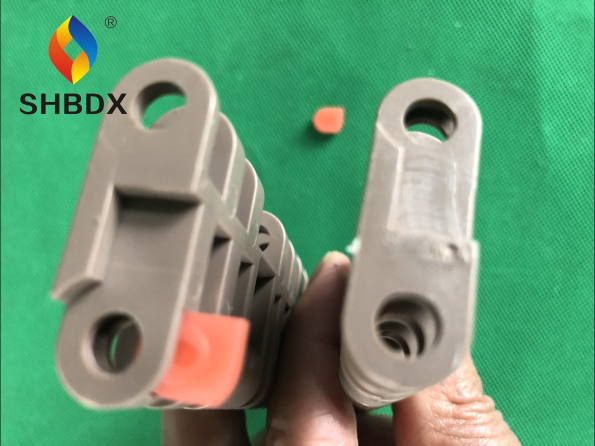

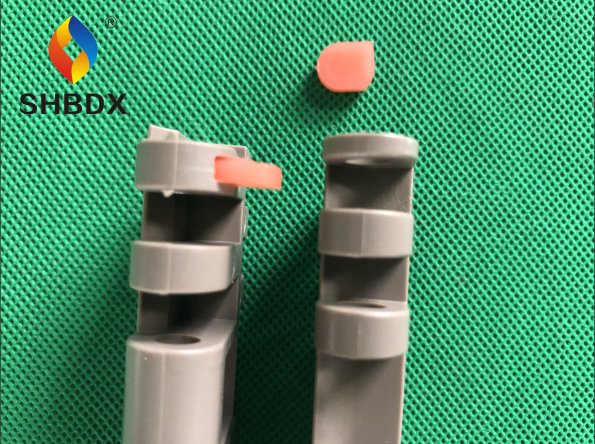

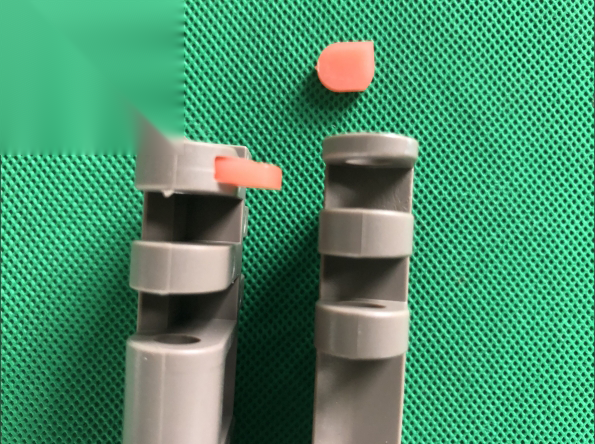

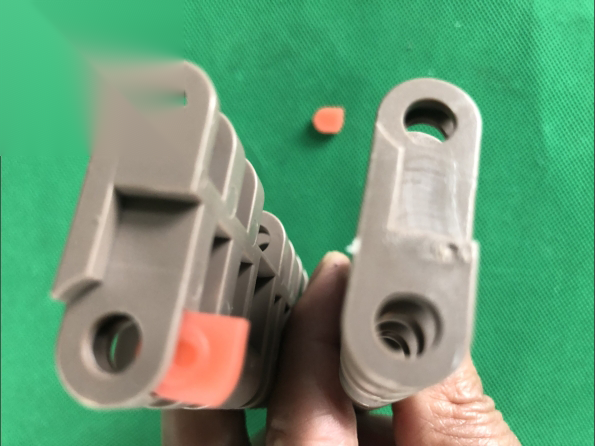

The 7705 Series Flat Top Modular Belt is a closed, smooth-surface belt at 25.4 mm pitch, molded in POM or PP. Belt strength is 23,300 N/m in PP and 52,800 N/m in POM, so material choice depends on the load you're carrying. Modules connect with hinge rods in a brick-lay pattern; standard widths run in multiples of 76.2 mm (increments of 38.1 mm), and length changes by adding or removing rows.

Technical Specifications

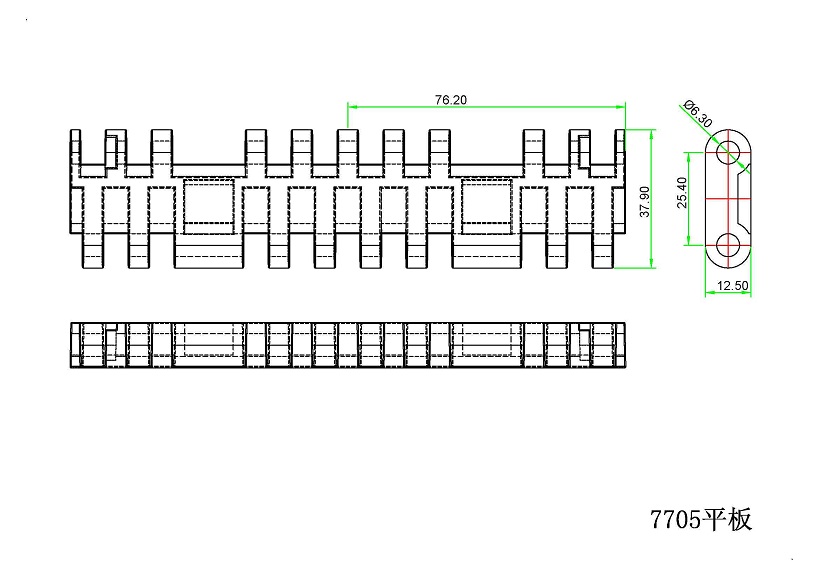

Series	7705
Product Type	7705 Series Flat Top Modular Belt
Pitch	25.4 mm
Belt Strength	23,300 N/m (PP) / 52,800 N/m (POM)
Thickness	12.5 mm
Open Area	0%
Standard Width	Multiples of 76.2 mm (increments of 38.1 mm)
Material	POM / PP
Color	Natural, Blue, Brown
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Bottling and beverage filling lines
Packaged food conveying
Cartons, trays and packaged goods handling
General factory transport lines

Features & Advantages

Consistent module quality from dedicated, purpose-built injection tooling.
Hinge-driven positive engagement with matching POM sprockets, so no slippage.
Damaged modules can be replaced individually, which keeps downtime short.
Food-grade PP/PE compliant with FDA and EU food-contact regulations available.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 7705 Series Flat Top Modular Belt available in food-grade material?

Yes. This belt is molded from PP/PE (and POM where applicable) resins compliant with FDA and EU food-contact regulations. We can send material compliance certificates with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items and small trial orders are fine. Typical production lead time is 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

Pair it with the matching 7705 series POM sprockets, available in multiple teeth counts and bore sizes. Give us your shaft size and we'll recommend the exact sprocket.
