900 Series Perforated Flat Top Modular Belt
27.2 mm pitch 900 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview

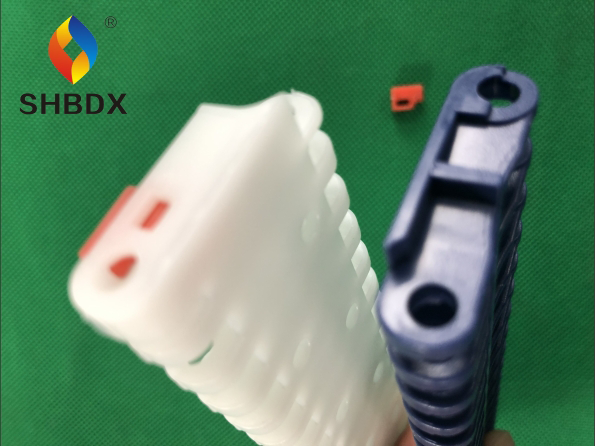

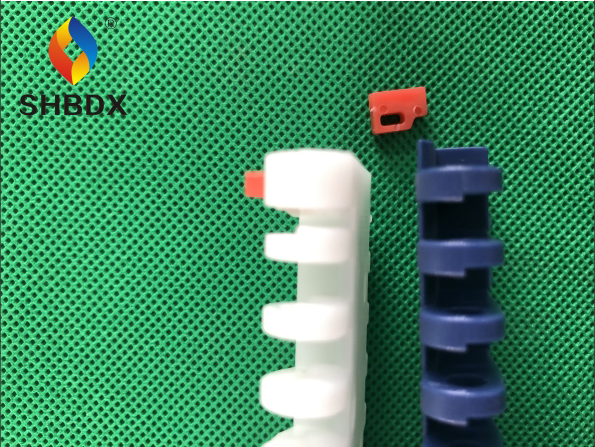

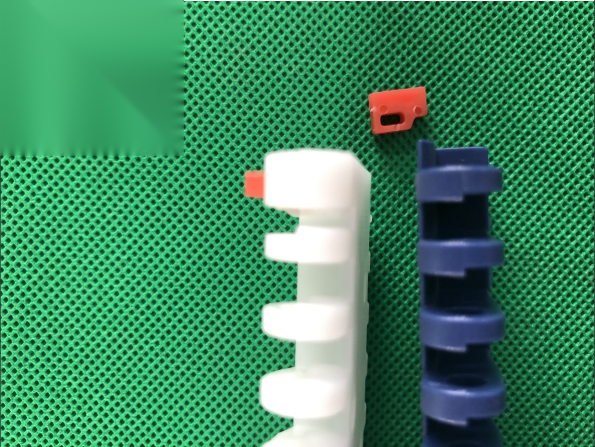

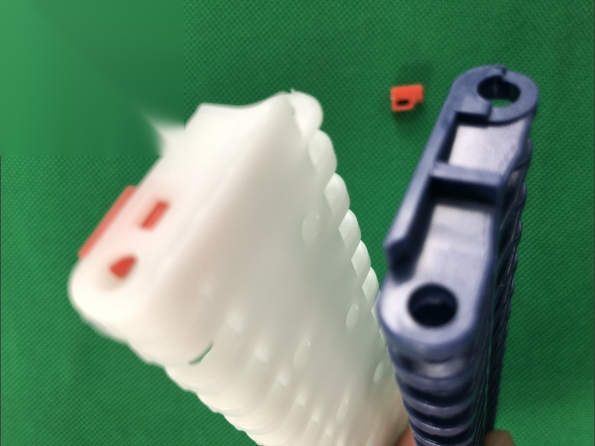

Washing, blanching and draining lines often need a flat carrying surface that still lets water through. That's the job of the 900 Series Perforated Flat Top Modular Belt: a 27.2 mm pitch flat top with round perforations and 31.7% open area for drainage. It is injection molded from PP / POM / PE, assembled brick-layed with hinge rods, drives positively on sprockets, and can be built to almost any width and length.
Technical Specifications
| Series | 900 |
| Product Type | 900 Series Perforated Flat Top Modular Belt |

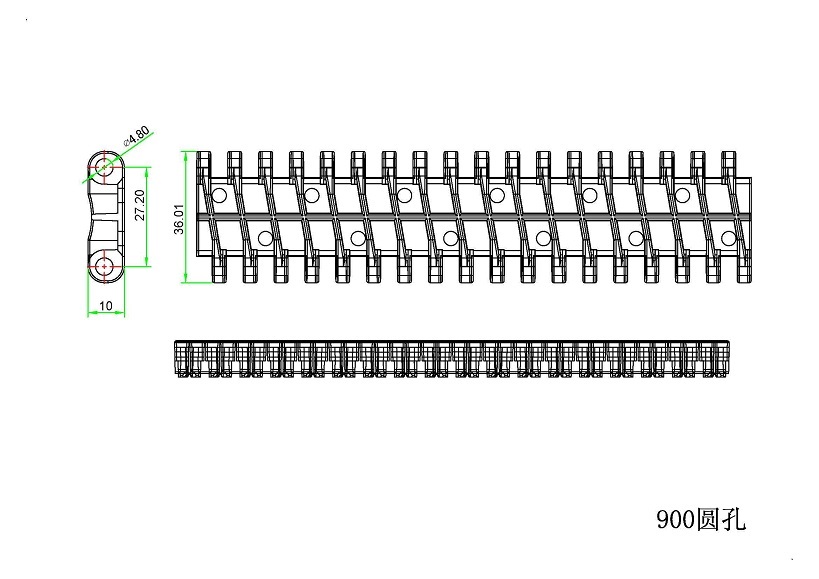

| Pitch | 27.2 mm |
| Belt Strength | 17,500 N/m (PP) / 40,300 N/m (POM) |
| Thickness | 10 mm |
| Open Area | 31.7% |
| Material | PP / POM / PE |
| Color | Natural, Grey, Blue, Brown |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Product washing and rinsing lines
- Blanching and draining applications
- Fresh produce handling
- Canning lines
Features & Advantages
- Tight dimensional tolerance from purpose-developed injection molds.
- Drives on sprockets, so there's no slippage or mistracking to chase.
- Modular build: a repair means swapping modules, not buying a new belt.
- FDA / EU compliant food-grade materials available.
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the 900 Series Perforated Flat Top Modular Belt available in food-grade material?
Yes. It's molded from FDA and EU food-contact compliant PP/PE resins (POM where applicable), and we can send material compliance certificates with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so a trial order is fine. Typical production lead time is 10-20 days depending on quantity and color; standard items in stock ship sooner.
Which sprockets should I pair with this belt?
Matching 900 series POM sprockets. They come in several teeth counts and bore sizes; tell us your shaft size and we'll recommend the right one.
