956 Series Perforated Flat Top Modular Belt
50.8 mm pitch 956 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview
The 956 Series Perforated Flat Top Modular Belt combines a flat 50.8 mm pitch surface with round perforations for drainage: product sits flat, wash water goes through. Injection molded from PP / PE and assembled brick-layed with hinge rods, it runs straight, drives positively on sprockets and can be built to almost any width and length.

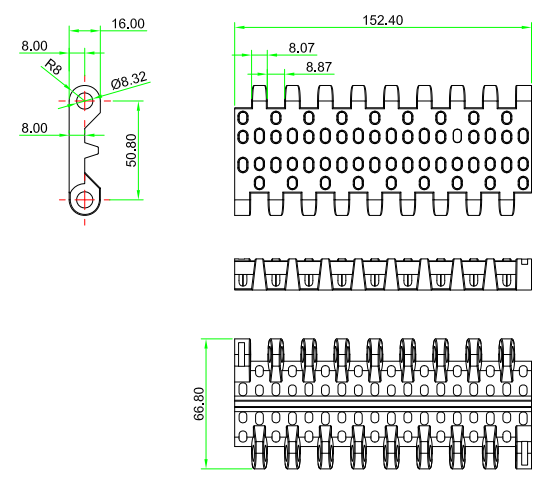

Technical Specifications
| Series | 956 |
| Product Type | 956 Series Perforated Flat Top Modular Belt |
| Pitch | 50.8 mm |
| Thickness | 16 mm |
| Open Area | 12.2% |
| Belt Strength | 27,000 N/m (PP) |
| Material | PP / PE |
| Color | White, Natural, Blue, Grey |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Product washing and rinsing lines
- Blanching and draining applications
- Fresh produce handling
- Canning lines
Features & Advantages
- Dedicated, purpose-built tooling keeps module quality consistent
- Hinges engage matching POM sprockets for positive, slip-free drive
- Damaged sections repair fast: replace only the affected modules
- Food-grade PP/PE compliant with FDA and EU food-contact regulations available
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the 956 Series Perforated Flat Top Modular Belt available in food-grade material?
Yes. Standard modules are molded from PP/PE (POM where applicable) resins that comply with FDA and EU food-contact regulations. We can include material compliance certificates with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
The matching 956 series POM sprockets. They come in several teeth counts and bore sizes; send us your shaft size and we'll recommend the exact one.
