1100 Series Flush Grid Modular Belt
15.24 mm pitch 1100 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

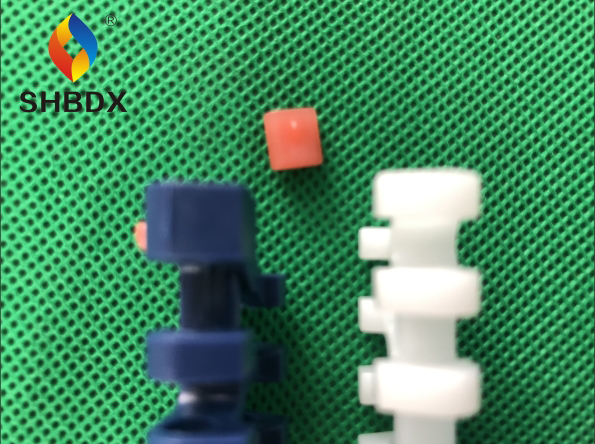

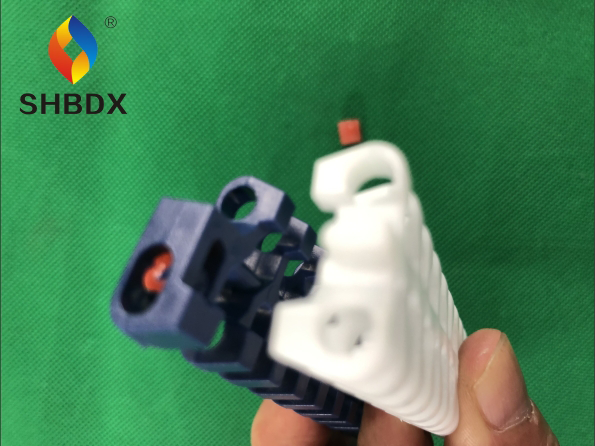

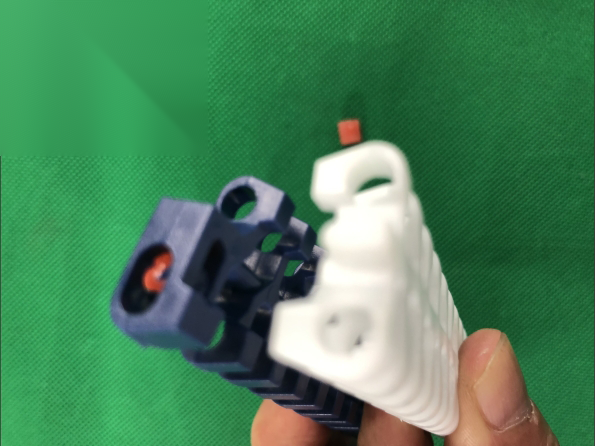

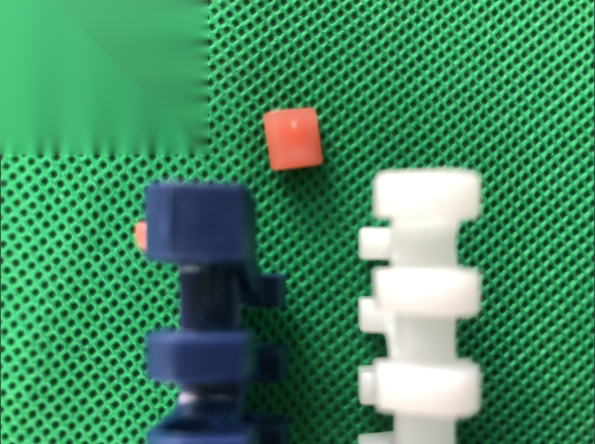

Cooling and draining sections need air and water to pass through the belt, not pool on it. The 1100 Series Flush Grid Modular Belt handles that with a 7.7% open grid surface on a 15.24 mm pitch. Modules are injection molded from POM / PP and connected with hinge rods in a brick-lay pattern, so lateral strength stays high and belt length adjusts by simply adding or removing rows.

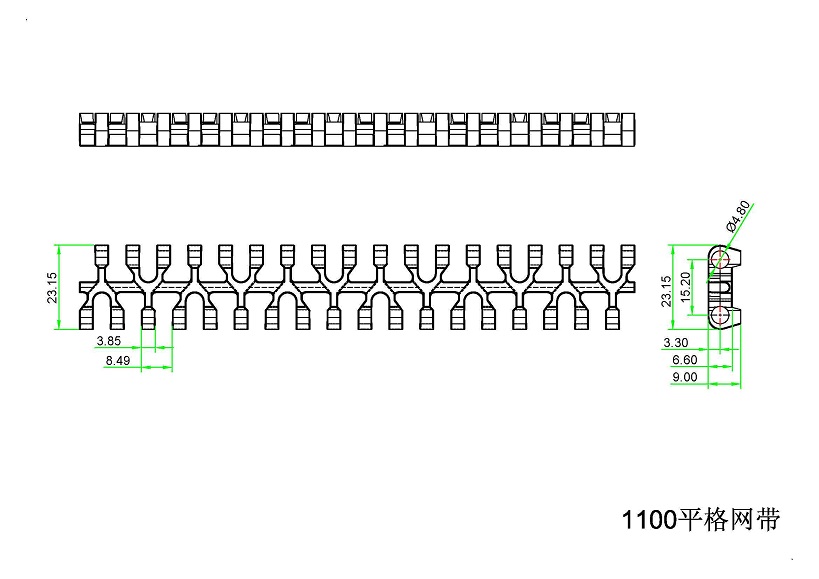

Technical Specifications
| Series | 1100 |
| Product Type | 1100 Series Flush Grid Modular Belt |
| Pitch | 15.24 mm |
| Belt Strength | 12,300 N/m (PP) / 31,100 N/m (POM) |
| Open Area | 7.7% |
| Material | POM / PP |
| Color | Natural, Blue |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Dedicated molding lines, full dimensional inspection.
- Slip-free drive on molded POM sprockets.
- A damaged row costs you a few modules, not a new belt, which keeps replacement cost and downtime low.
- FDA / EU compliant food-grade options for hygienic and washdown lines.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 1100 Series Flush Grid Modular Belt available in food-grade material?
Yes. It's molded from PP/PE (POM where applicable) resins compliant with FDA and EU food-contact regulations. Compliance certificates available with your order.
What are the MOQ and lead time?
Small trial orders are welcome and MOQ is negotiable for standard items. Typical production lead time is 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Pair it with the matching 1100 series POM sprockets, offered in multiple tooth counts and bore sizes. Send your shaft size and we'll pick the right one.
