Product Story

400 Series Raised Rib Modular Belt

Name: 400 Series Raised Rib Modular Belt
Brand: Veybelt
SKU: VL-400-RR

50.8 mm pitch 400 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Baking and cooling lines with tight transferSmall and unstable product conveyingBottle and can single-line transportFreezing tunnel infeed/outfeed

$NaN

SKUVL-400-RR

Lead Time10-20 days

Product Description

Overview

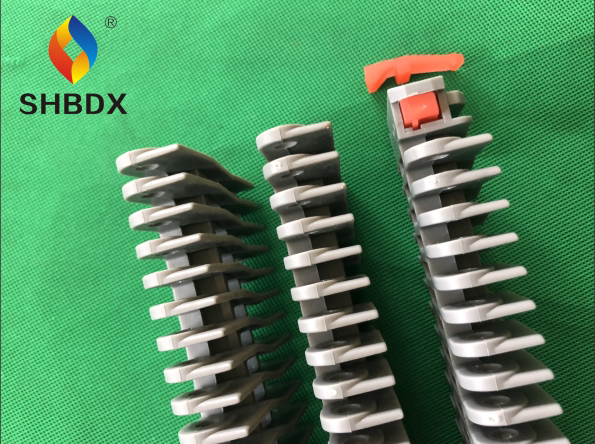

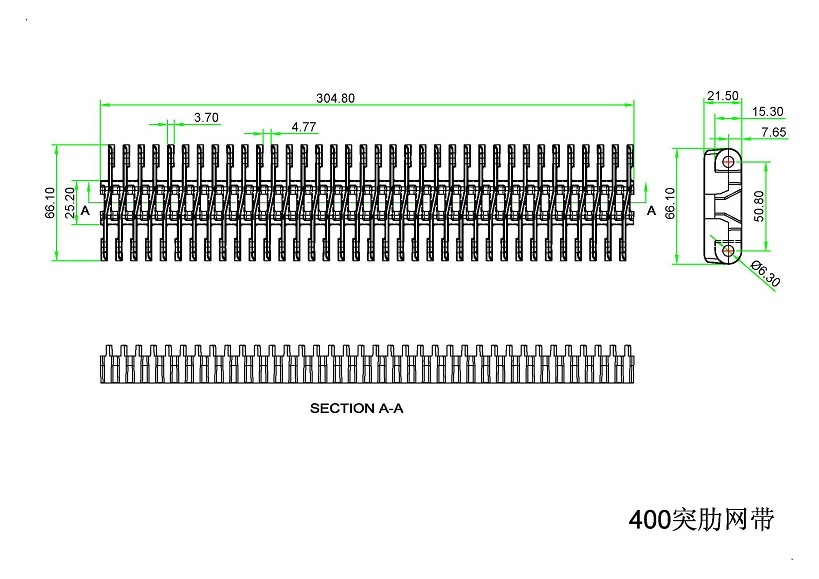

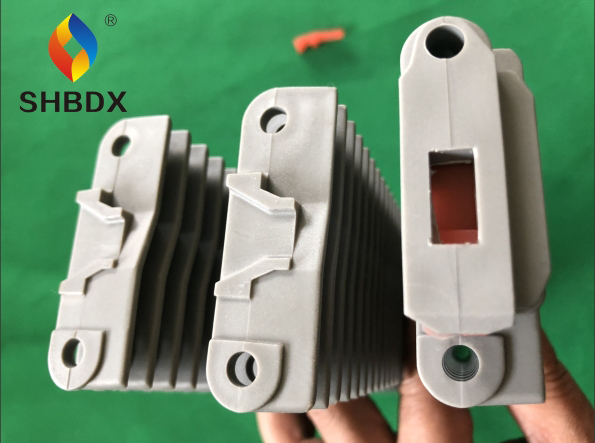

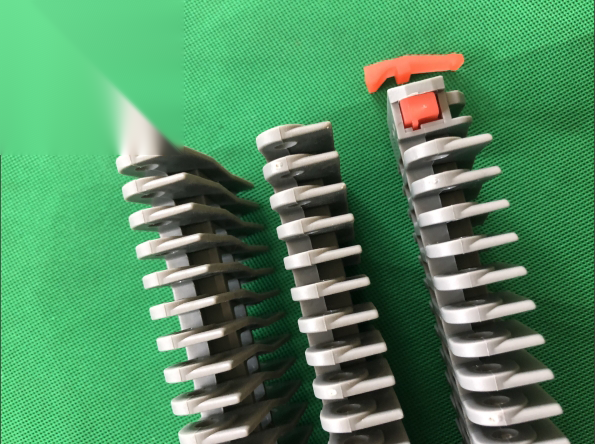

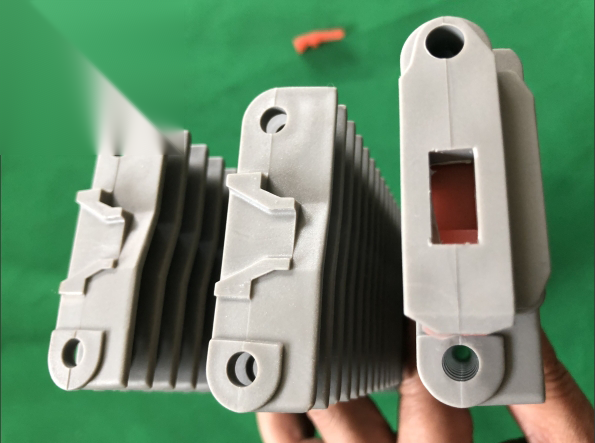

If small or unstable product tips at the transfer point, the usual fix is finger transfer plates, and those need a raised rib surface. The 400 Series Raised Rib Modular Belt is a 50.8 mm pitch plastic modular belt whose ribs accept finger plates for tight product transfer between conveyors. Modules are injection molded from PP / PE and connected with hinge rods in a brick-lay pattern, so lateral strength is high and length changes are just a matter of adding or removing rows.

Technical Specifications

Series	400
Product Type	400 Series Raised Rib Modular Belt
Pitch	50.8 mm
Belt Strength	39,200 N/m (PP)
Thickness	21.5 mm
Open Area	29.4%
Material	PP / PE
Color	Grey, Natural, Brown
Standard Width	Multiples of 50.8 mm
Food Contact	FDA / EU compliant food-grade material available

Applications

Baking and cooling lines with tight transfer
Small and unstable product conveying
Bottle and can single-line transport
Freezing tunnel infeed/outfeed

Features & Advantages

Purpose-developed injection molds hold tight dimensional tolerance.
Positive sprocket drive: no slippage, no mistracking.
Repairs are module by module. You don't replace the whole belt.
Food-grade materials meeting FDA / EU food-contact requirements are available.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 400 Series Raised Rib Modular Belt available in food-grade material?

Yes. The belt is molded from FDA and EU food-contact compliant PP/PE resins (POM where applicable), and material compliance certificates can ship with your order.

What are the MOQ and lead time?

Small trial orders are fine; MOQ is negotiable for standard items. Typical production lead time is 10-20 days depending on quantity and color. In-stock standard items go out faster.

Which sprockets should I pair with this belt?

Matching 400 series POM sprockets, available in multiple teeth counts and bore sizes. Send us your shaft size and we'll pick the right one.
