926 Series Flush Grid Modular Belt
12.7 mm pitch 926 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

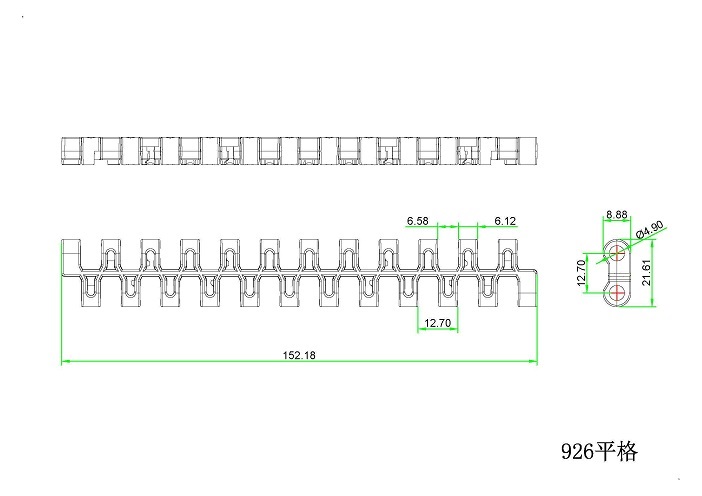

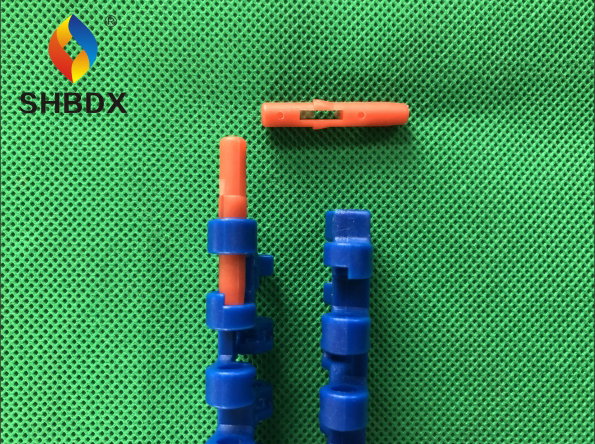

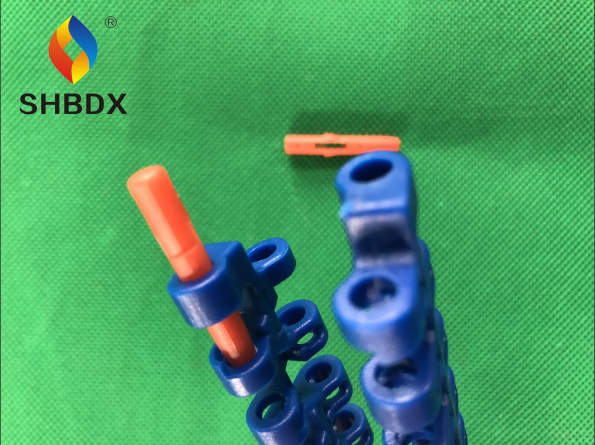

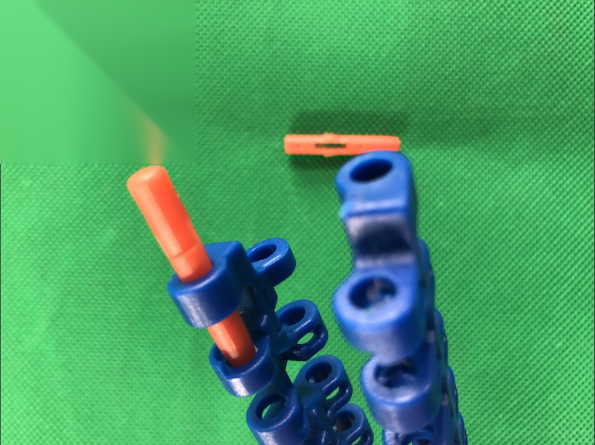

At 12.7 mm pitch with 37.7% open area, the 926 Series Flush Grid Modular Belt is the open-grid version of the 926 flat top: water drains through and air moves around the product instead of sitting on it. PP / POM modules connect with hinge rods in a brick-lay pattern, which gives high lateral strength and lets you shorten or lengthen the belt by adding or removing rows.
Technical Specifications
| Series | 926 |
| Product Type | 926 Series Flush Grid Modular Belt |
| Pitch | 12.7 mm |
| Belt Strength | 9,500 N/m (PP) / 21,200 N/m (POM) |
| Thickness | 8.9 mm |
| Open Area | 37.7% |
| Material | PP / POM |
| Color | Natural, Blue, Brown |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Purpose-developed injection molds hold tight dimensional tolerance
- Sprockets drive the belt positively, so no slippage and no mistracking
- Damaged rows? Swap the modules, not the whole belt
- FDA / EU compliant food-grade materials available
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 926 Series Flush Grid Modular Belt available in food-grade material?
Yes. Standard modules are molded from PP/PE (POM where applicable) resins that comply with FDA and EU food-contact regulations. Compliance certificates can ship with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
The matching 926 series POM sprockets, available in multiple teeth counts and bore sizes. Tell us your shaft size and we'll pick the right one.
