5935 Series Perforated Flat Top Modular Belt
19.05 mm pitch 5935 series perforated flat top modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview
On washing, blanching and canning lines, water has to leave the belt fast while the surface still supports the product. That's the job of the 5935 Series Perforated Flat Top Modular Belt: a flat conveying surface at 19.05 mm pitch with round perforations for drainage. It's injection molded from PP / POM / PE and brick-layed with hinge rods, so it runs straight and drives positively on sprockets.
Technical Specifications
| Series | 5935 |
| Product Type | 5935 Series Perforated Flat Top Modular Belt |

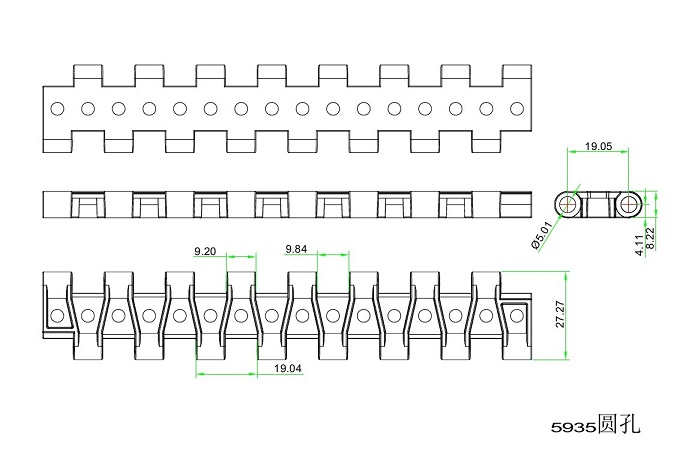

| Pitch | 19.05 mm |
| Belt Strength | 11,800 N/m (PP) / 20,700 N/m (POM) |
| Material | PP / POM / PE |
| Color | Natural, Brown, Blue |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Product washing and rinsing lines
- Blanching and draining applications
- Fresh produce handling
- Canning lines
Features & Advantages
- Tight dimensional tolerance from purpose-developed injection molds.
- Positive sprocket drive: the belt neither slips nor mistracks.
- Local damage doesn't mean a new belt. You swap the affected modules and run again.
- Food-grade materials meeting FDA / EU food-contact requirements on request.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 5935 Series Perforated Flat Top Modular Belt available in food-grade material?
Yes. We mold it from PP/PE (and POM where applicable) resins compliant with FDA and EU food-contact regulations, and can supply material compliance certificates with the order.
What are the MOQ and lead time?
MOQ is negotiable for standard items; small trial orders are welcome. Production lead time is typically 10-20 days depending on quantity and color. In-stock standard items ship faster.
Which sprockets should I pair with this belt?
The matching 5935 series POM sprockets, in several teeth counts and bore sizes. Send your shaft size and we'll match the sprocket for you.
