966 Series Raised Rib Modular Belt
25.4 mm pitch 966 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

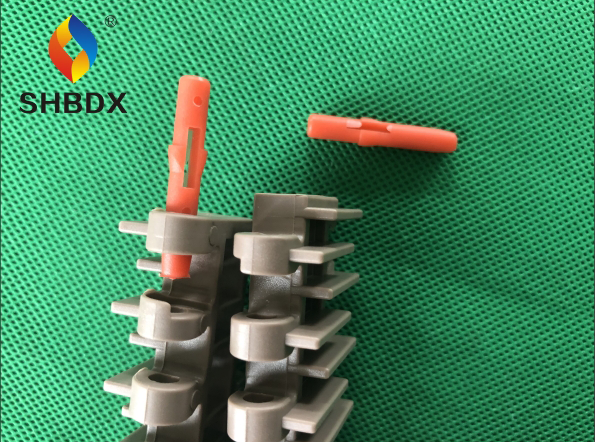

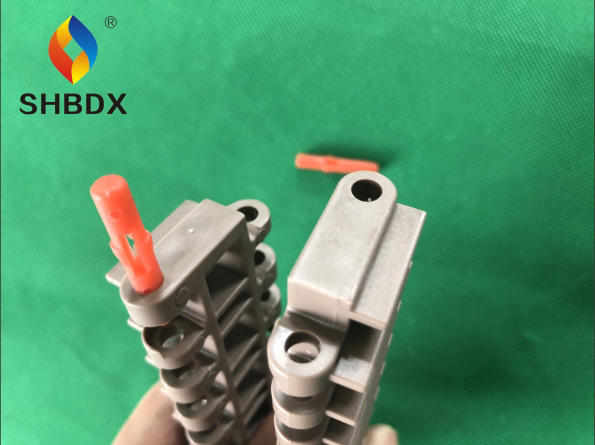

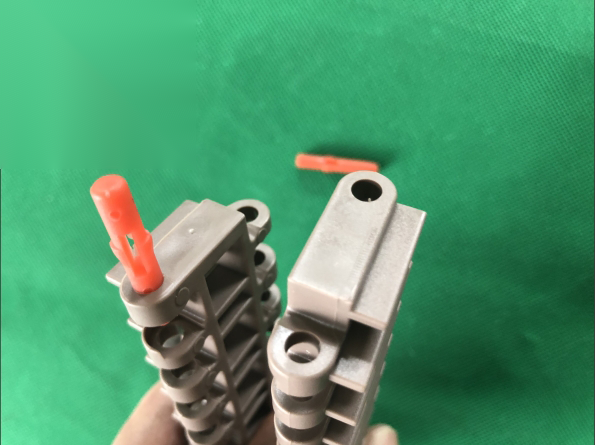

Tight product transfers are what the 966 Series Raised Rib Modular Belt is built for: a 25.4 mm pitch belt whose raised ribs accept finger transfer plates, so small or unstable products cross between conveyors without a gap. Modules are injection molded in PP / POM and connected with hinge rods in a brick-lay pattern, giving high lateral strength and easy length adjustment by adding or removing rows.

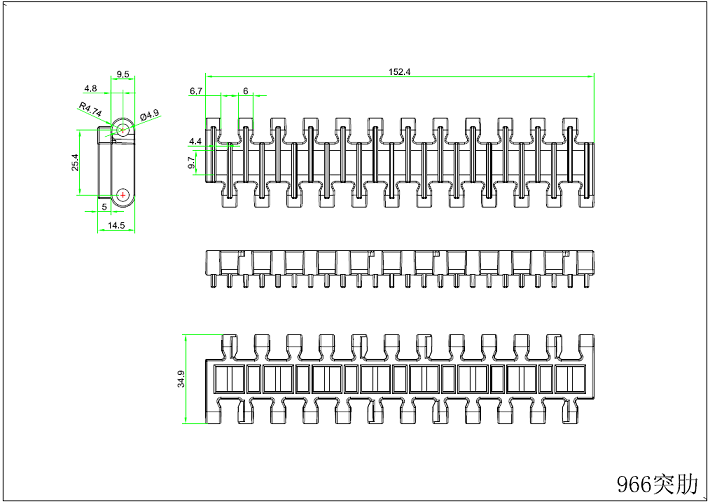

Technical Specifications
| Series | 966 |
| Product Type | 966 Series Raised Rib Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 26,800 N/m (POM) |
| Thickness | 14.5 mm |
| Open Area | 25.3% |
| Material | PP / POM |
| Color | Brown, Natural, Blue |
| Belt Width | Custom widths available on request |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Baking and cooling lines with tight transfer
- Small and unstable product conveying
- Bottle and can single-line transport
- Freezing tunnel infeed/outfeed
Features & Advantages
- Purpose-built injection tooling keeps module quality consistent from batch to batch.
- Positive hinge engagement with matching POM sprockets, so there's no slippage.
- Damaged sections are fixed by replacing individual modules. Downtime stays short.
- Food-grade PP/PE materials compliant with FDA and EU food-contact regulations are available.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 966 Series Raised Rib Modular Belt available in food-grade material?
Yes. Modules come in PP/PE resins (POM where applicable) that meet FDA and EU food-contact regulations. Compliance certificates can be provided with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items, so a small trial order is no problem. Production lead time is typically 10-20 days depending on quantity and color; stocked standard items ship faster.
Which sprockets should I pair with this belt?
The matching 966 series POM sprockets, offered in multiple teeth counts and bore sizes. Give us your shaft size and we'll recommend the exact sprocket.
