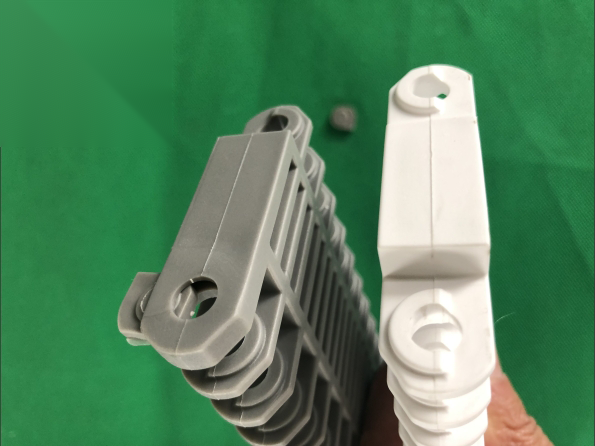

Battery Production Mesh Belt
50.8 mm pitch battery production mesh belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

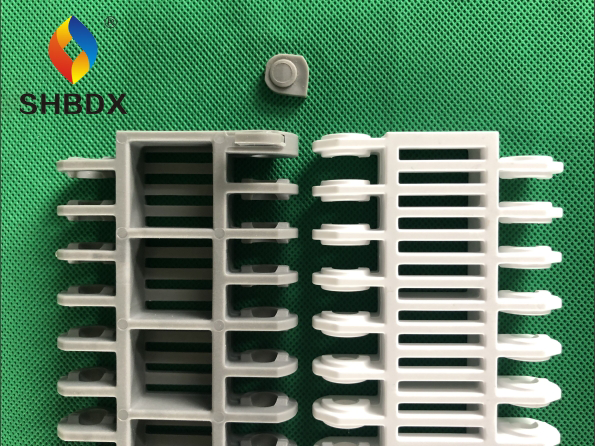

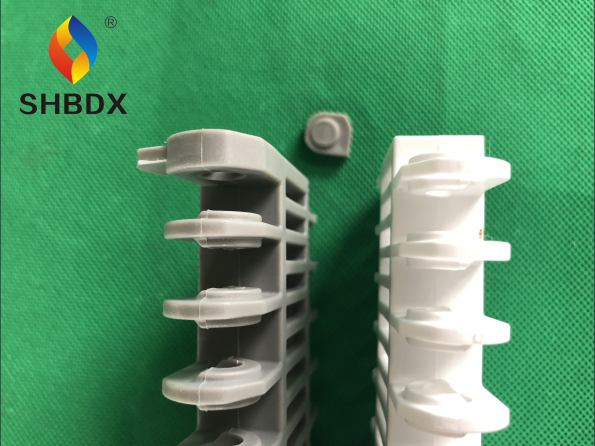

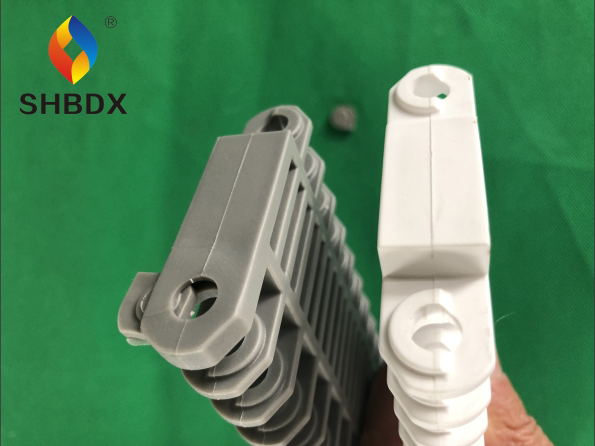

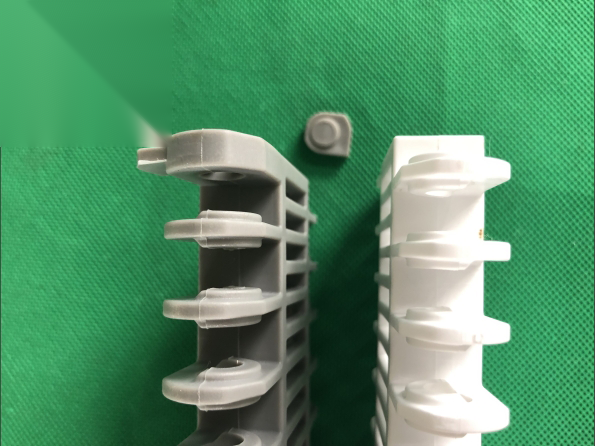

Lead-acid battery plate lines are hard on plastic belts: acid mist, wet plates, curing heat. The Battery Production Mesh Belt is a 50.8 mm pitch open-grid belt molded from acid-resistant PP / PE specifically for that environment, with 22.5% open area for drainage and airflow under the plates. It's brick-layed with hinge rods like our other modular belts, so it runs straight, drives positively on sprockets and can be built to the width and length your line needs.

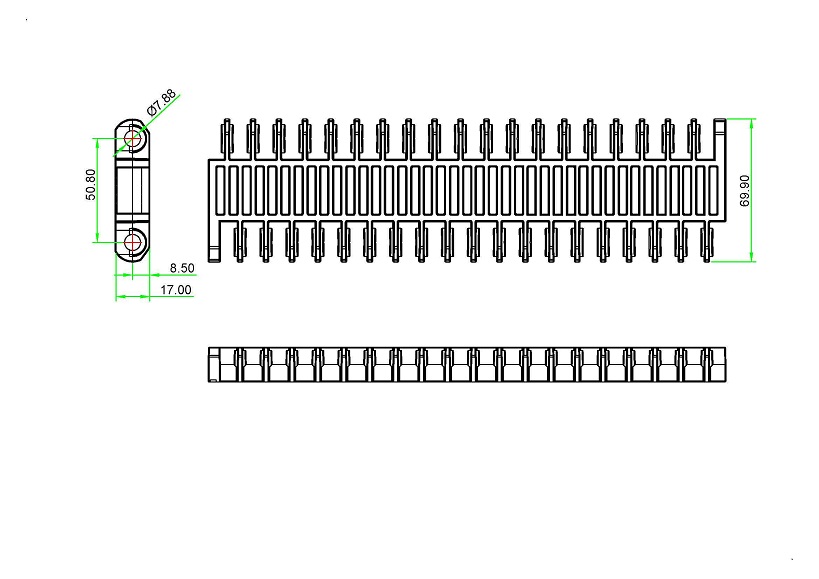

Technical Specifications
| Series | Battery |
| Product Type | Battery Production Mesh Belt |
| Pitch | 50.8 mm |
| Belt Strength | 25,700 N/m (PP) |
| Thickness | 17 mm |
| Open Area | 22.5% |
| Standard Width | Multiples of 457.2 mm (increments of 25.4 mm) |
| Material | Acid-resistant PP / PE |
| Color | Grey, Natural |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Lead-acid battery plate production and curing lines
- Acid-environment conveying
- Battery formation and assembly lines
- Corrosive-environment material handling
Features & Advantages
- Acid-resistant PP / PE resists the corrosive conditions on battery plate production, curing and formation lines
- Rated at 25,700 N/m (PP), stronger than our standard 50.8 mm grid belts
- Tight dimensional tolerance from purpose-developed injection molds
- Positive sprocket drive with no slippage or mistracking
- Damaged modules are replaced individually, not the whole belt
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the Battery Production Mesh Belt available in food-grade material?
Yes, food-grade PP/PE (and POM where applicable) compliant with FDA and EU food-contact regulations is available, though for battery lines most customers order the acid-resistant grades. Compliance certificates can be provided with your order.
What are the MOQ and lead time?
Small trial orders are welcome and MOQ is negotiable for standard items. Production typically takes 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Use the matching Battery series POM sprockets. They're available in multiple teeth counts and bore sizes, so tell us your shaft size and we'll recommend the exact sprocket.
