1000 Series Flush Grid Modular Belt
25.4 mm pitch 1000 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

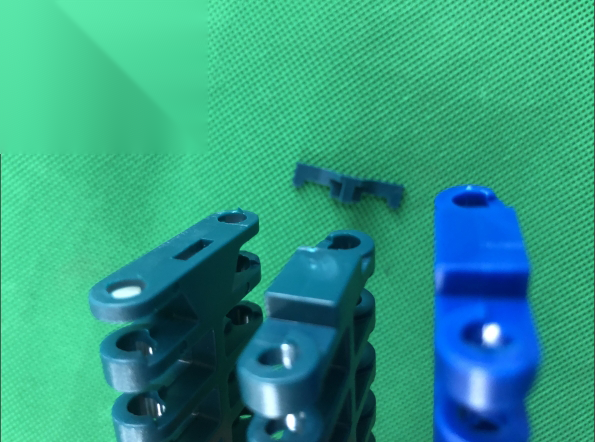

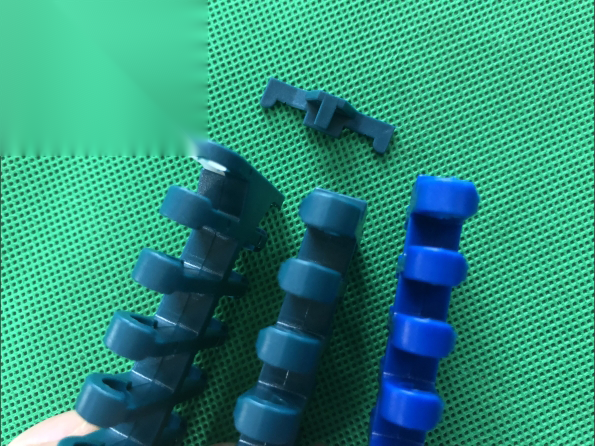

If product sits wet on the belt after washdown, an open grid is usually the fix. The 1000 Series Flush Grid Modular Belt keeps the 25.4 mm pitch of the flat top version but opens the surface up for drainage and airflow. Modules are injection molded in PP / POM / PE and joined with hinge rods in a brick-lay pattern, which gives high lateral strength and lets you shorten or lengthen the belt just by adding or removing rows.

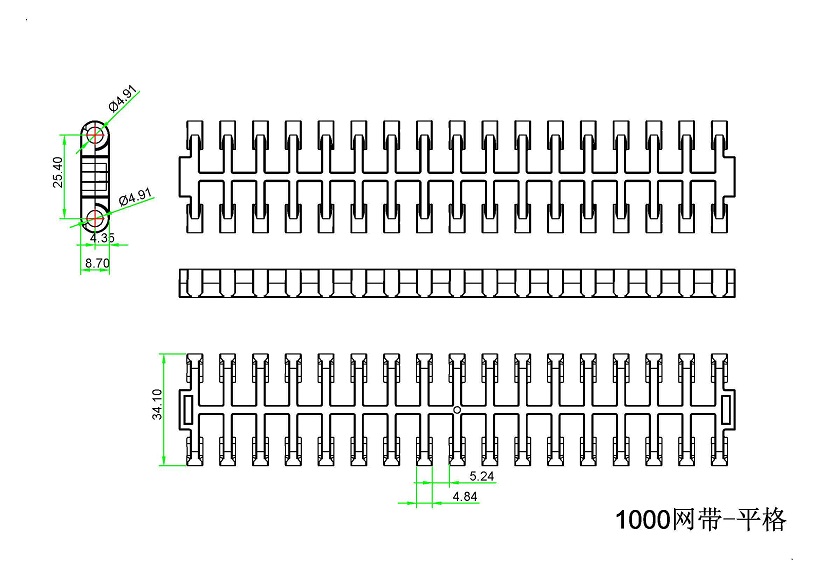

Technical Specifications
| Series | 1000 |
| Product Type | 1000 Series Flush Grid Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 16,700 N/m (PP) / 39,300 N/m (POM) |
| Material | PP / POM / PE |
| Color | Green, Natural, Blue |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Purpose-built injection tooling keeps module quality consistent batch to batch.
- Positive hinge engagement with matching POM sprockets, so the belt cannot slip.
- Repair damaged sections module by module instead of scrapping the belt.
- Food-grade PP/PE compliant with FDA and EU food-contact regulations available.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 1000 Series Flush Grid Modular Belt available in food-grade material?
Yes. It's molded from FDA and EU compliant PP/PE resins (POM where applicable), and compliance certificates can go out with the order.
What are the MOQ and lead time?
Small trial orders are welcome; MOQ is negotiable on standard items. Typical production lead time is 10-20 days depending on quantity and color. In-stock standard items ship faster.
Which sprockets should I pair with this belt?
Use the matching 1000 series POM sprockets, available in multiple tooth counts and bore sizes. Tell us your shaft size and we'll recommend the exact one.
