5997 Series Raised Rib Modular Belt
57.15 mm pitch 5997 series raised rib modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview

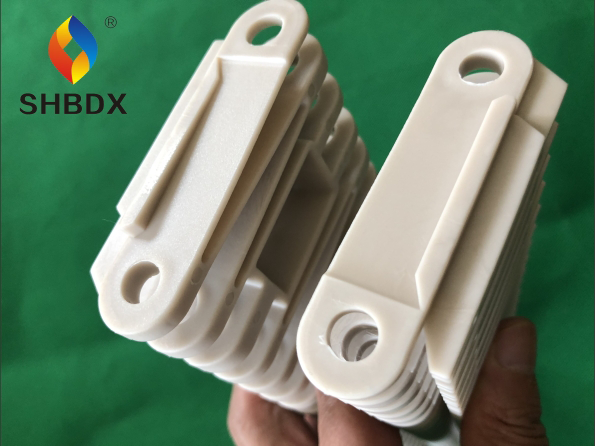

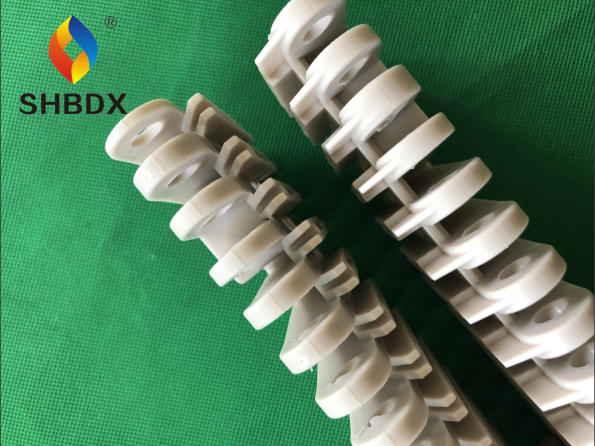

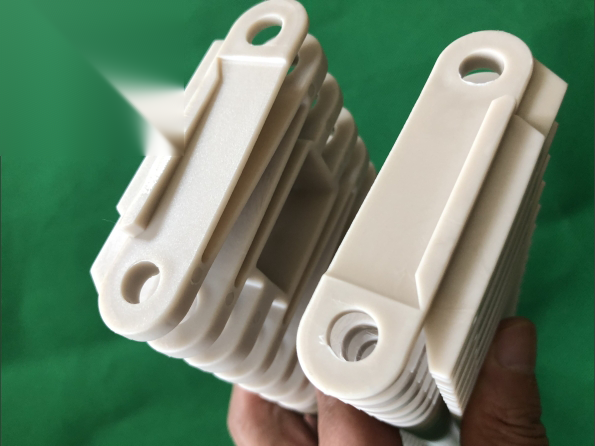

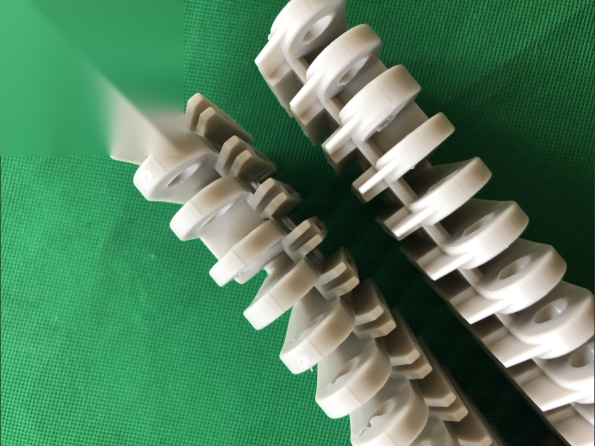

Where small or unstable product has to pass from one conveyor to the next without tipping, the 5997 Series Raised Rib Modular Belt is the usual answer: the raised ribs accept finger transfer plates, so the transfer gap all but disappears. It's a 57.15 mm pitch plastic modular belt, injection molded from PP and brick-layed with hinge rods, running straight with positive sprocket drive.

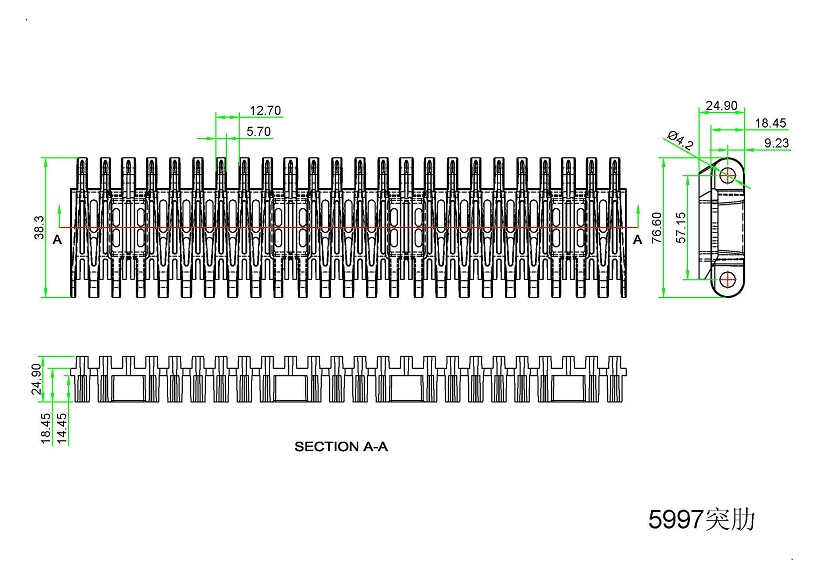

Technical Specifications
| Series | 5997 |
| Product Type | 5997 Series Raised Rib Modular Belt |
| Pitch | 57.15 mm |
| Thickness | 24.9 mm |
| Open Area | 23.8% |
| Belt Strength | 47,500 N/m (PP) |
| Standard Width | From 304.8 mm, increments of 76.2 mm |
| Material | PP |
| Color | Brown |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Baking and cooling lines with tight transfer
- Small and unstable product conveying
- Bottle and can single-line transport
- Freezing tunnel infeed/outfeed
Features & Advantages
- Dedicated, purpose-built injection tooling for consistent module quality.
- Positive hinge engagement with matching POM sprockets means no slippage.
- Repair a damaged section by swapping individual modules, not the belt.
- Available in food-grade PP/PE compliant with FDA and EU food-contact regulations.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 5997 Series Raised Rib Modular Belt available in food-grade material?
Yes. It's molded from PP/PE (and POM where applicable) resins compliant with FDA and EU food-contact regulations. Material compliance certificates available with your order.
What are the MOQ and lead time?
MOQ is negotiable for standard items and small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
The matching 5997 series POM sprockets. Multiple teeth counts and bore sizes are available; give us your shaft size and we'll pick the right one.
