986 Series Flush Grid Modular Belt
25.4 mm pitch 986 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Product Details
Overview
Washdown lines are where an open grid earns its keep. The 986 Series Flush Grid Modular Belt pairs a 25.4 mm pitch with 22.8% open area, so wash water drains and air moves through the belt during cooling and processing. Modules are injection molded from POM / PP and brick-layed with hinge rods; the belt runs straight, drives positively on sprockets, and can be built to almost any width and length.

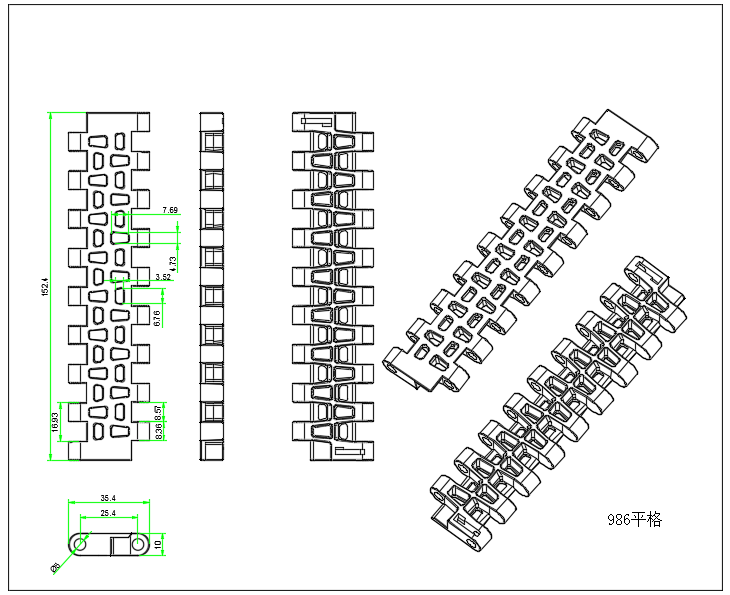

Technical Specifications
| Series | 986 |
| Product Type | 986 Series Flush Grid Modular Belt |
| Pitch | 25.4 mm |
| Belt Strength | 18,056 N/m (PP) / 30,851 N/m (POM) |
| Thickness | 10 mm |
| Open Area | 22.8% |
| Material | POM / PP |
| Color | Natural, Blue, Brown |
| Belt Width | Custom widths available on request |
| Optional Attachments | Flights (cleats) and side guards available - see accessories |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Washdown food processing lines
- Cooling and draining sections
- Fruit and vegetable washing lines
- Seafood and meat processing
Features & Advantages
- Made on dedicated injection molding lines, every module dimensionally inspected.
- Molded POM sprockets keep the drive accurate and slip-free.
- Module-level maintenance keeps replacement cost and downtime low.
- FDA / EU compliant food-grade options for hygienic applications.
Shipping & Usage
Good to Know
FAQ
Frequently Asked Questions
Is the 986 Series Flush Grid Modular Belt available in food-grade material?
Yes. This belt uses PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations, and material compliance certificates can be supplied with the order.
What are the MOQ and lead time?
Small trial orders are welcome. MOQ is negotiable for standard items, and typical production lead time is 10-20 days depending on quantity and color; in-stock standard items ship faster.
Which sprockets should I pair with this belt?
Pair it with the matching 986 series POM sprockets. Multiple teeth counts and bore sizes are available; tell us your shaft size and we'll recommend the exact one.
