956 Series Flush Grid Modular Belt

Name: 956 Series Flush Grid Modular Belt
Brand: Veybelt
SKU: VL-956-FG

50.8 mm pitch 956 series flush grid modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Washdown food processing linesCooling and draining sectionsFruit and vegetable washing linesSeafood and meat processing

$NaN

SKUVL-956-FG

Lead Time10-20 days

Product Description

Overview

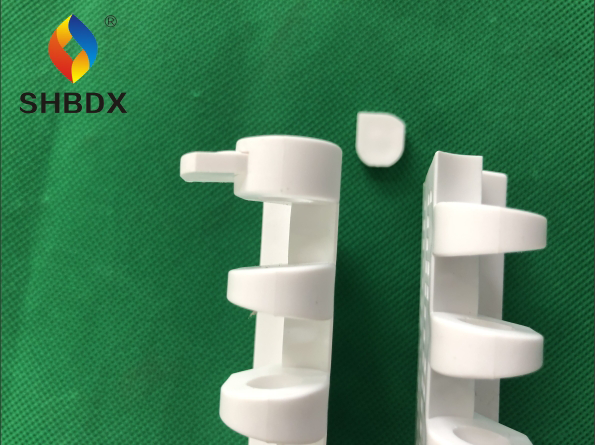

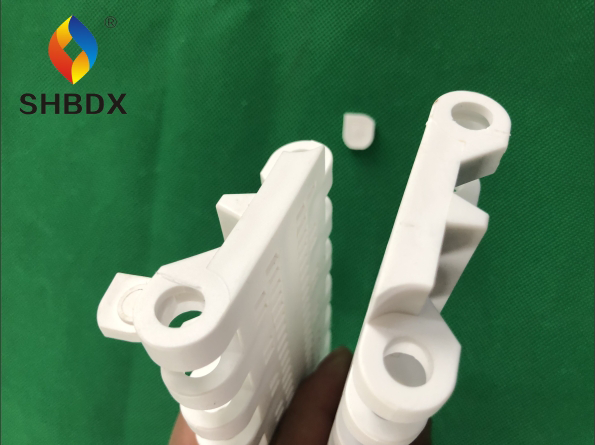

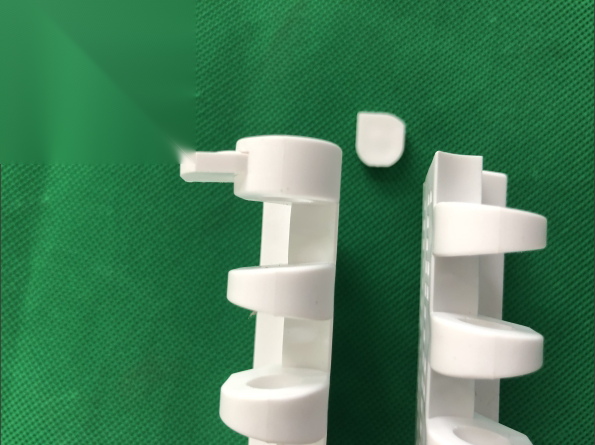

Cooling and draining sections need airflow through the belt, not just under it. The 956 Series Flush Grid Modular Belt puts an open-grid surface (11.6% open area) on a 50.8 mm pitch. PP / PE modules joined with hinge rods in a brick-lay pattern give high lateral strength, and belt length adjusts by adding or removing rows.

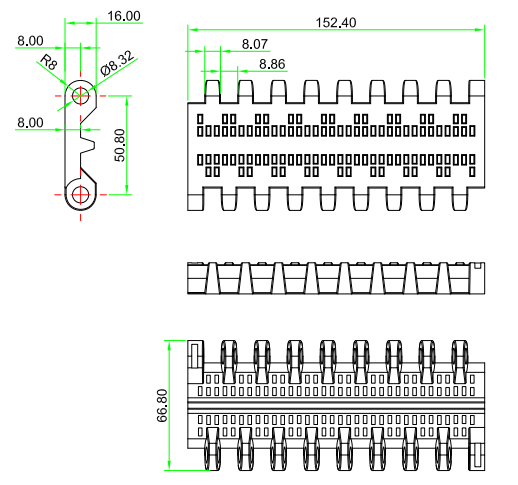

Technical Specifications

Series	956
Product Type	956 Series Flush Grid Modular Belt
Pitch	50.8 mm
Thickness	16 mm
Open Area	11.6%
Belt Strength	27,000 N/m (PP)
Material	PP / PE
Color	White, Natural, Blue, Grey
Belt Width	Custom widths available on request
Optional Attachments	Flights (cleats) and side guards available - see accessories
Food Contact	FDA / EU compliant food-grade material available

Applications

Washdown food processing lines
Cooling and draining sections
Fruit and vegetable washing lines
Seafood and meat processing

Features & Advantages

Built on dedicated injection molding lines, with every module dimension-checked
Slip-free, accurate drive on molded POM sprockets
Module-level maintenance, so replacement cost and downtime stay low
FDA / EU compliant food-grade options for hygienic applications

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 956 Series Flush Grid Modular Belt available in food-grade material?

Yes. Standard modules are molded from PP/PE (POM where applicable) resins that comply with FDA and EU food-contact regulations. Compliance certificates can ship with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, so small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; in-stock standard items ship faster.

Which sprockets should I pair with this belt?

The matching 956 series POM sprockets, available in multiple teeth counts and bore sizes. Tell us your shaft size and we'll pick the right one.
