1100 Series Sprockets
1100 series sprockets from Veybelt - food-grade material options, custom widths, fast quotation.
Product Description
Overview

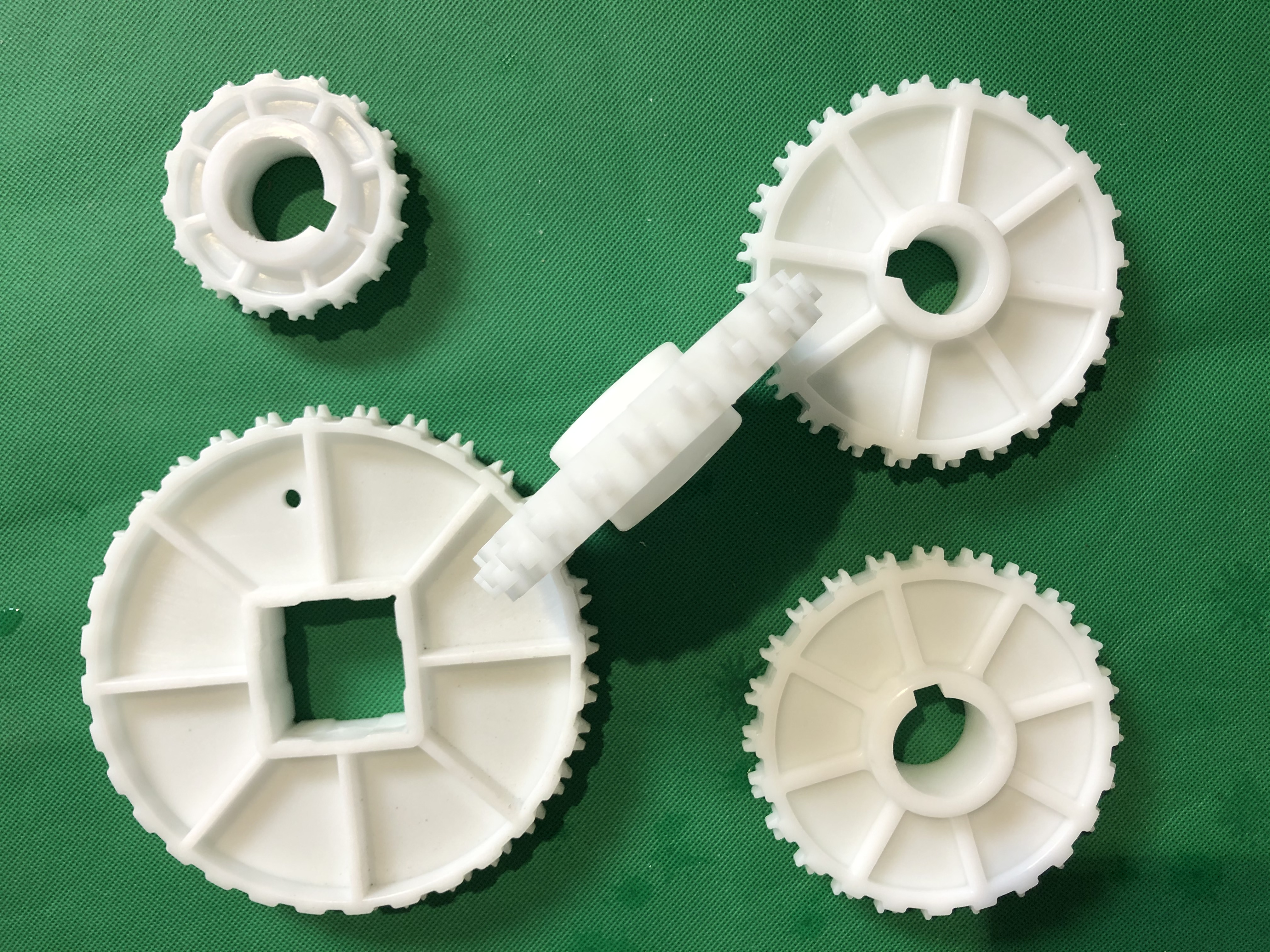

1100 Series Sprockets drive the 1100 series modular belt with direct tooth engagement, so the belt cannot slip under load. Molded POM (acetal) keeps the tooth profile dimensionally stable and wear-resistant. Versions with 16, 24 or 32 teeth are available, with square, round or bushing-insert bores.
Technical Specifications
| Series | 1100 |
| Product Type | 1100 Series Sprockets |
| Compatible Belt | 1100 series modular belt |
| Teeth Options | 16 / 24 / 32 teeth |
| Bore Types | Square / round / bushing insert |
| Material | POM (Acetal) |
| Color | Natural (off-white) |
| Food Contact | FDA / EU compliant food-grade material available |
Applications
- Positive drive of matching modular belt series
- New conveyor construction
- Replacement of worn drive components
Features & Advantages
- Molded POM (acetal) body: low friction, wear resistant, corrosion free
- 16 / 24 / 32 teeth to match shaft height and belt speed

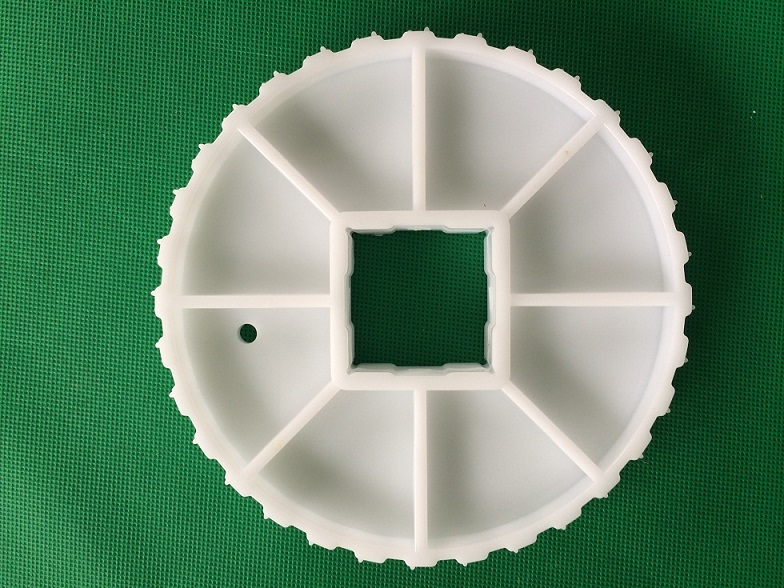

- Square bore self-aligns on the shaft; round bore and bushing inserts are also available
- Made on dedicated molds we own, so every listed size stays in production
物流与说明
运输承诺、使用说明和补充信息。
常见问题
FAQ 问答列表，减少售前阻力。
Is the 1100 Series Sprockets available in food-grade material?
Yes. The resins we mold (PP/PE, and POM where applicable) comply with FDA and EU food-contact regulations. Ask for the material compliance certificates when you order and we'll include them.
What are the MOQ and lead time?
MOQ is negotiable for standard items, and small trial orders are fine. Production usually takes 10-20 days depending on quantity and color; standard items in stock ship sooner.
Can you customize this product?
Yes. Heights, widths and bores can all be customized. If you have your own drawings, we run OEM/ODM projects with in-house mold development at our factory.
