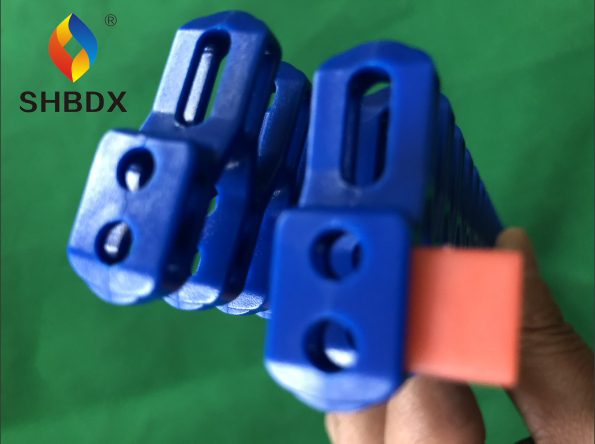

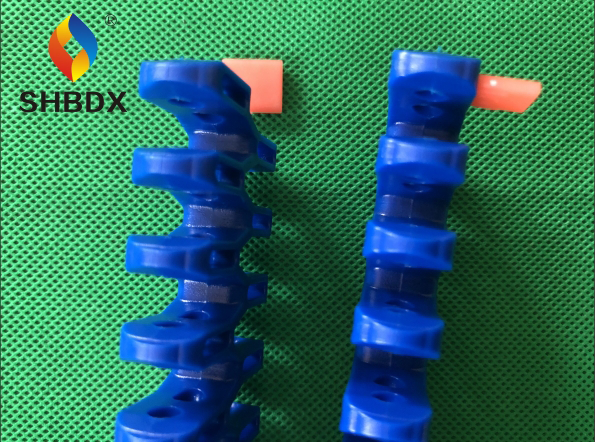

7100 Series Radius Modular Belt

Name: 7100 Series Radius Modular Belt
Brand: Veybelt
SKU: VL-7100-RD

25.4 mm pitch 7100 series radius modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Space-saving S-curve and 90/180-degree turning conveyorsBeverage and food packaging lines with curvesEnd-of-line packaging systemsAccumulation tables

$NaN

SKUVL-7100-RD

Lead Time10-20 days

Product Description

Overview

When a curved conveyor has to carry real load, belt strength through the turn is what limits you. The 7100 Series Radius Modular Belt is a side-flexing plastic modular belt rated at 24,200 N/m in PP and 30,900 N/m in POM, on a 25.4 mm pitch with a 2.3 x belt width inner turning radius. It holds positive sprocket drive through S-curves and 90/180-degree layouts on a single drive, which cuts floor space and transfer points.

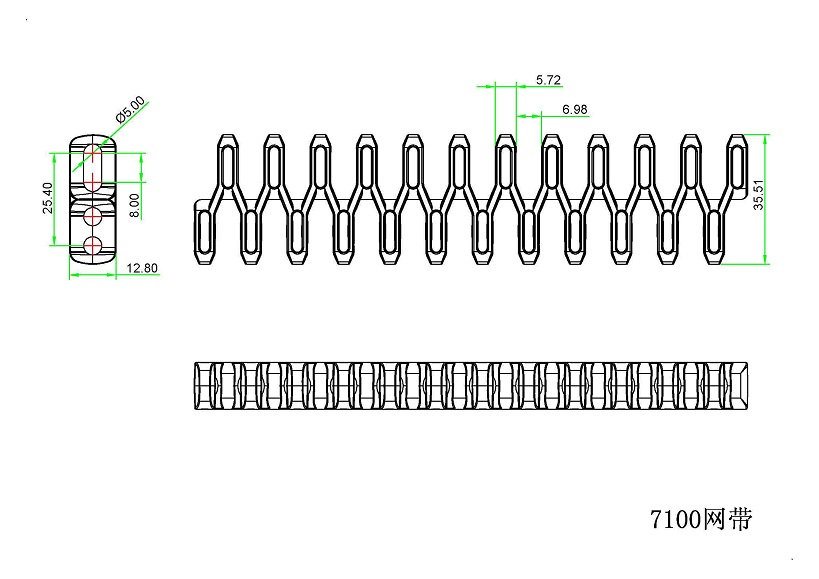

Technical Specifications

Series	7100
Product Type	7100 Series Radius Modular Belt
Pitch	25.4 mm
Belt Strength	24,200 N/m (PP) / 30,900 N/m (POM)
Thickness	12.8 mm
Open Area	44.2%
Inner Turning Radius	2.3 x belt width
Material	PP / POM
Color	White, Blue
Belt Width	Custom widths available on request
Food Contact	FDA / EU compliant food-grade material available

Applications

Space-saving S-curve and 90/180-degree turning conveyors
Beverage and food packaging lines with curves
End-of-line packaging systems
Accumulation tables

Features & Advantages

Dedicated injection molding lines with full dimensional inspection on every run.
Driven by molded POM sprockets for accurate, slip-free tracking.
Module-level repair. Downtime and spare cost stay low.
FDA / EU compliant food-grade material options for hygienic lines.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 7100 Series Radius Modular Belt available in food-grade material?

Yes. It's available in PP/PE resins (POM where applicable) compliant with FDA and EU food-contact regulations, with material compliance certificates supplied on request with your order.

What are the MOQ and lead time?

Small trial orders are fine; MOQ is negotiable for standard items. Expect 10-20 days production depending on quantity and color. In-stock standard items ship faster.

Which sprockets should I pair with this belt?

The matching 7100 series POM sprockets, which come in multiple teeth counts and bore sizes. Send your shaft size and we'll pick the right one.
