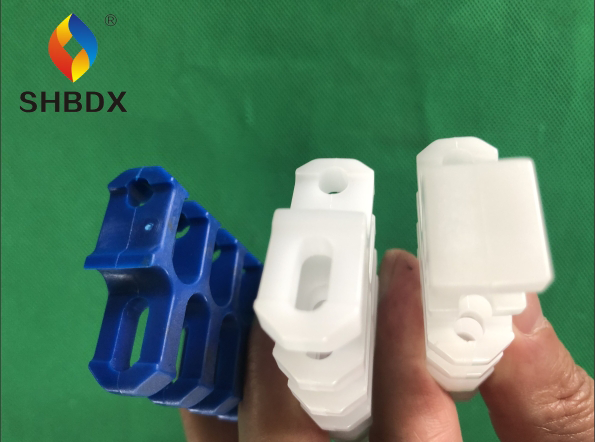

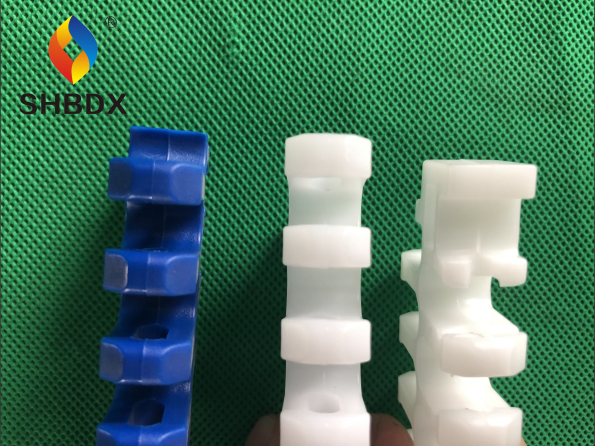

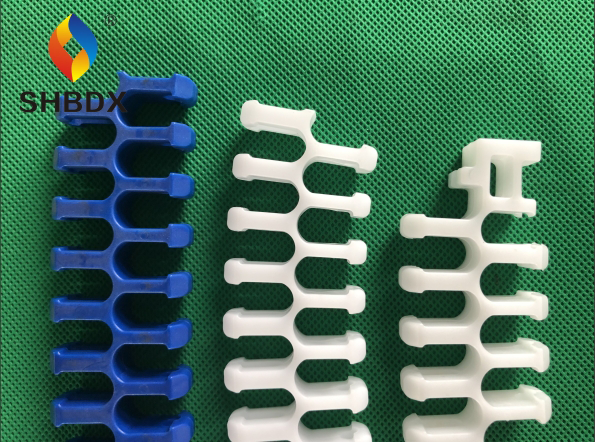

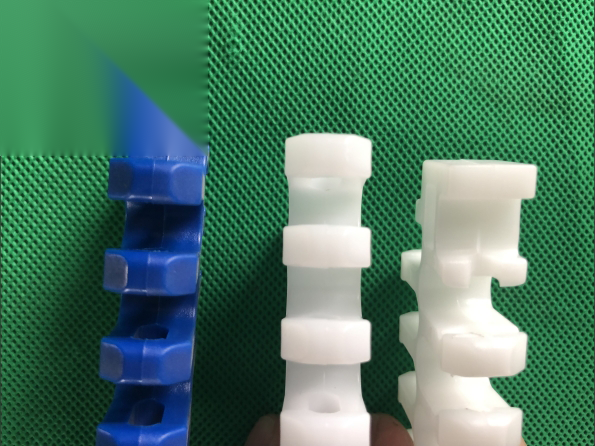

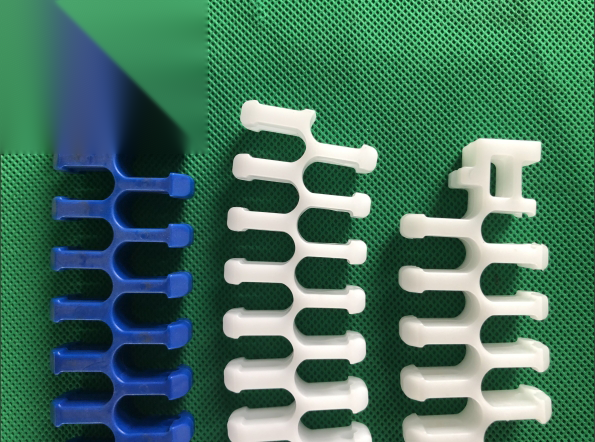

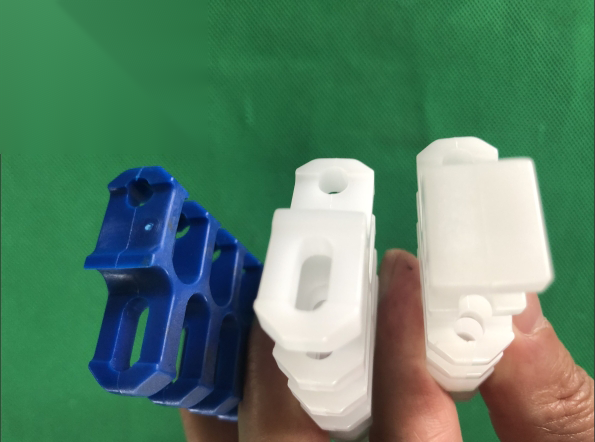

2400 Series Radius Modular Belt

Name: 2400 Series Radius Modular Belt
Brand: Veybelt
SKU: VL-2400-RD

25.4 mm pitch 2400 series radius modular belt from Veybelt - food-grade material options, custom widths, fast quotation.

Space-saving S-curve and 90/180-degree turning conveyorsBeverage and food packaging lines with curvesEnd-of-line packaging systemsAccumulation tables

$NaN

SKUVL-2400-RD

Lead Time10-20 days

Product Description

Overview

The 2400 Series Radius Modular Belt is a side-flexing plastic modular belt for curved conveyors, running S-curves and 90/180-degree turns on one drive instead of a chain of straight sections and transfers. Pitch is 25.4 mm, inner turning radius 2.5 x belt width, open area 44.2%. Choose PP at 17,000 N/m for general duty or POM at 31,800 N/m where the curve carries heavier pull.

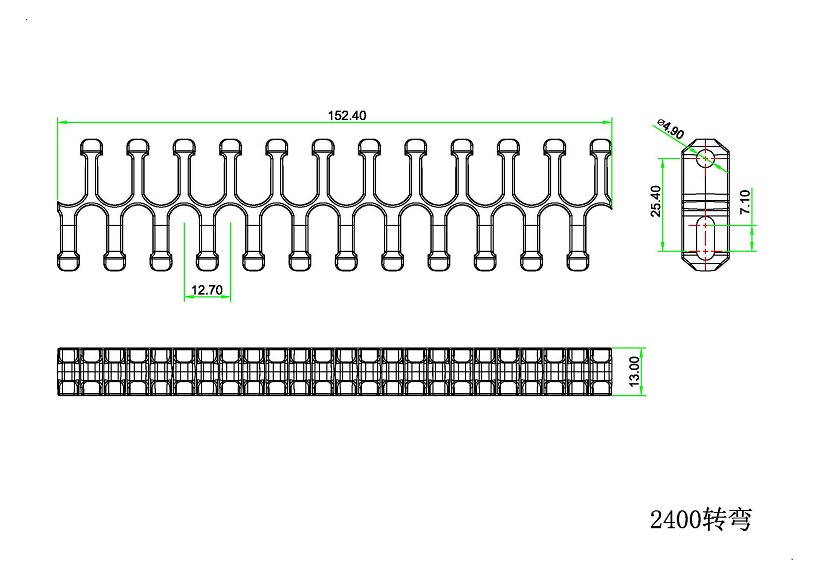

Technical Specifications

Series	2400
Product Type	2400 Series Radius Modular Belt
Pitch	25.4 mm
Belt Strength	17,000 N/m (PP) / 31,800 N/m (POM)
Thickness	13 mm
Open Area	44.2%
Inner Turning Radius	2.5 x belt width
Material	PP / POM
Color	White, Blue
Belt Width	Custom widths available on request
Food Contact	FDA / EU compliant food-grade material available

Applications

Space-saving S-curve and 90/180-degree turning conveyors
Beverage and food packaging lines with curves
End-of-line packaging systems
Accumulation tables

Features & Advantages

Molded in purpose-developed injection tools for tight dimensional tolerance.
Positive sprocket drive, so no slippage and no mistracking.
Modular build: a damaged area is fixed by swapping modules, not by scrapping the whole belt.
Food-grade versions meeting FDA / EU food-contact requirements on request.

物流与说明

运输承诺、使用说明和补充信息。

Ships from a cross-border fulfillment center

Third-party lab tested and quality checked

Localized post-purchase support included

常见问题

FAQ 问答列表，减少售前阻力。

Is the 2400 Series Radius Modular Belt available in food-grade material?

Yes. Molded from FDA and EU compliant PP/PE resins (POM where applicable). We can provide certificates of material compliance with your order.

What are the MOQ and lead time?

MOQ is negotiable for standard items, small trial orders included. Production lead time runs 10-20 days depending on quantity and color, and in-stock standard items ship sooner.

Which sprockets should I pair with this belt?

Pair it with the 2400 series POM sprockets, available in several teeth counts and bore sizes. Tell us your shaft size and we'll spec the sprocket for you.
